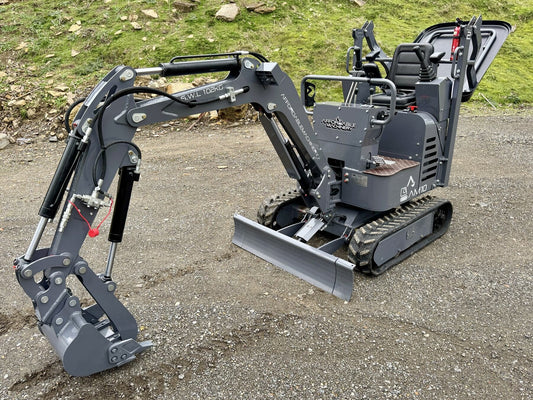

- Dig depth1630 mm
- Dump height1960 mm
- EngineKOOP KD192F 7kW @ 3000rpm
- Track width900-1100mm
- Telescopic Expanding Tracks
- FOPS Steel Canopy
Package price
$12,990.00Sold out, restock TBC

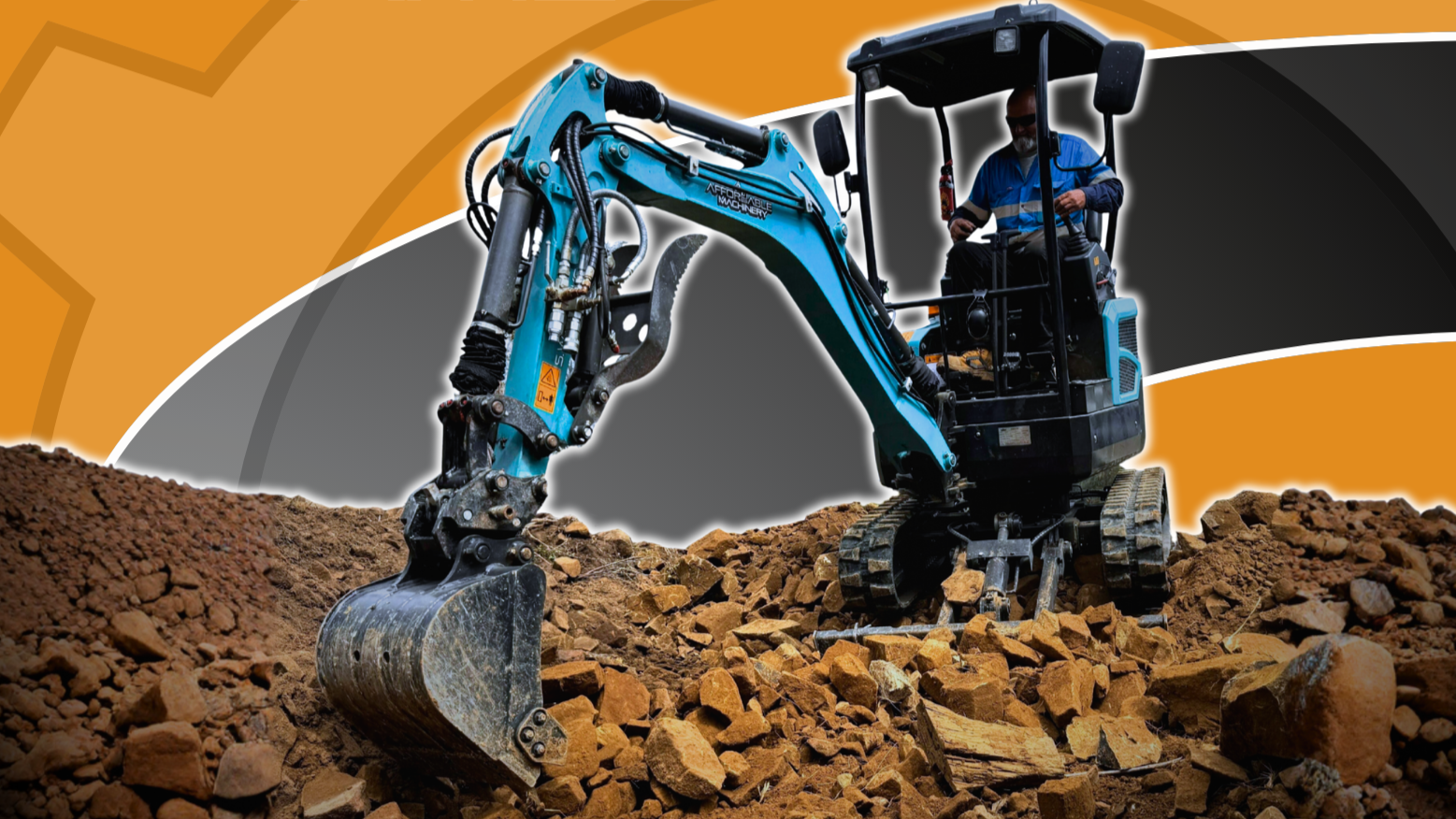

LET THE MACHINE DO THE HEAVY LIFTING!
Mini excavators, attachments and parts — Tasmanian-based, Australian-backed.
Tasmanian Family Business
Based in Derwent Park — pickup welcome, shipping Australia-wide.
12 Month / 1,000hr Parts Warranty
Supplementary to your Australian Consumer Law rights.
Local Parts & Servicing
Common parts stocked locally with fast turnaround.
Finance Available
Flexible options for ABN holders — ask our team.
Tasmanian stock, Australia-wide delivery
Shop by range
Machines, attachments, parts and ramps, all backed from our Derwent Park workshop.
4 machines
Mini ExcavatorsAM10 to AM20 packages, assembled and tested in Derwent Park.Shop mini excavators
59 attachments

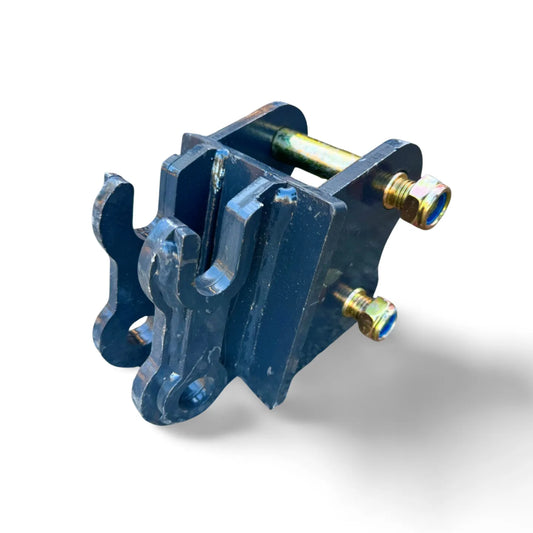

Excavator AttachmentsBuckets, hitches, rippers and augers listed by pin profile.Shop attachments
19 parts

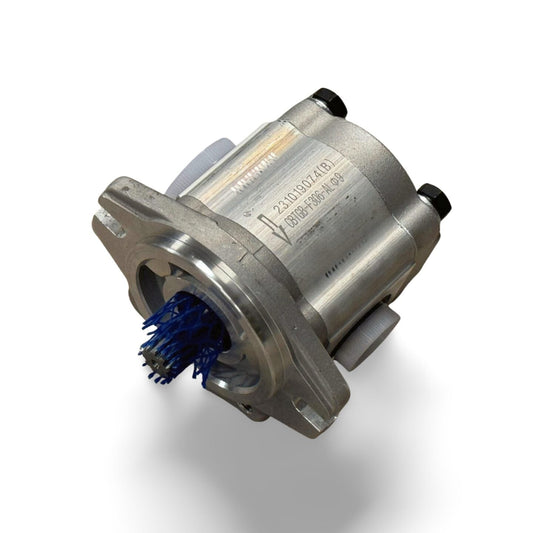

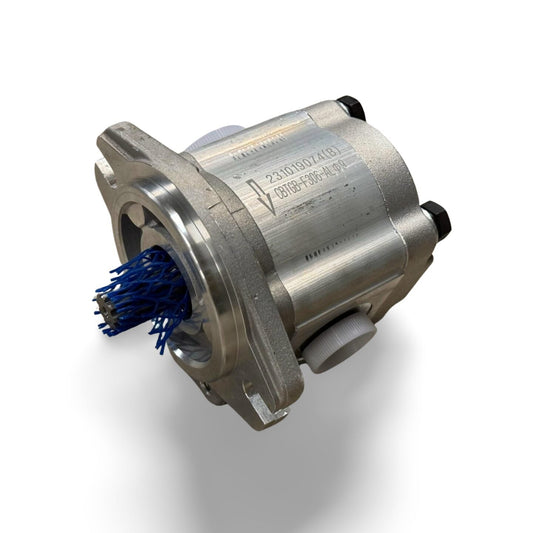

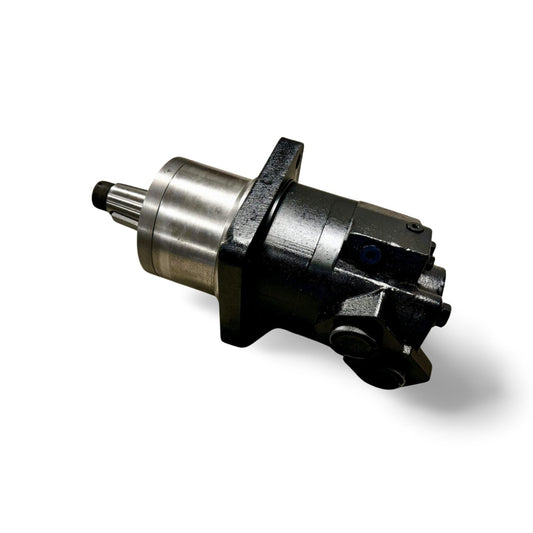

Spare PartsFilters, pins, tracks and hydraulics stocked locally.Shop parts
3 sizes

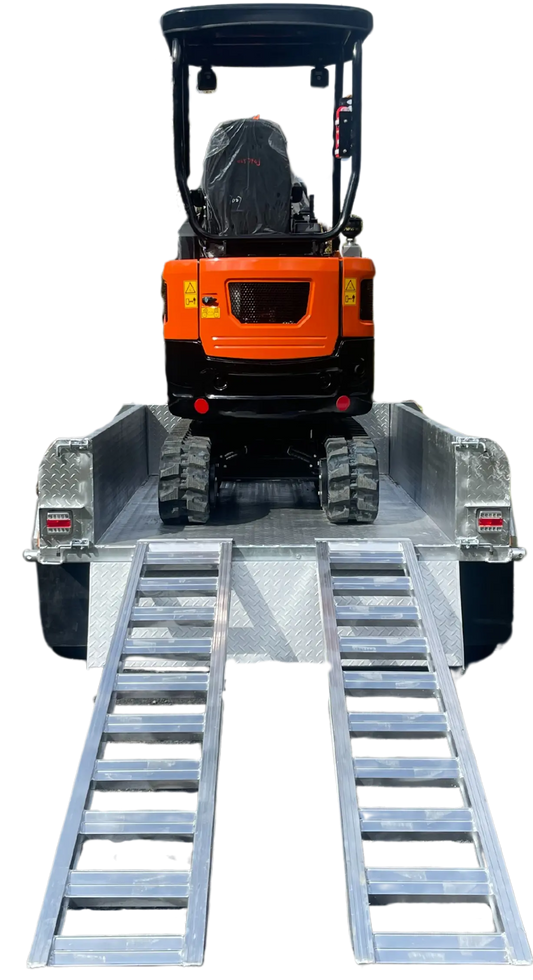

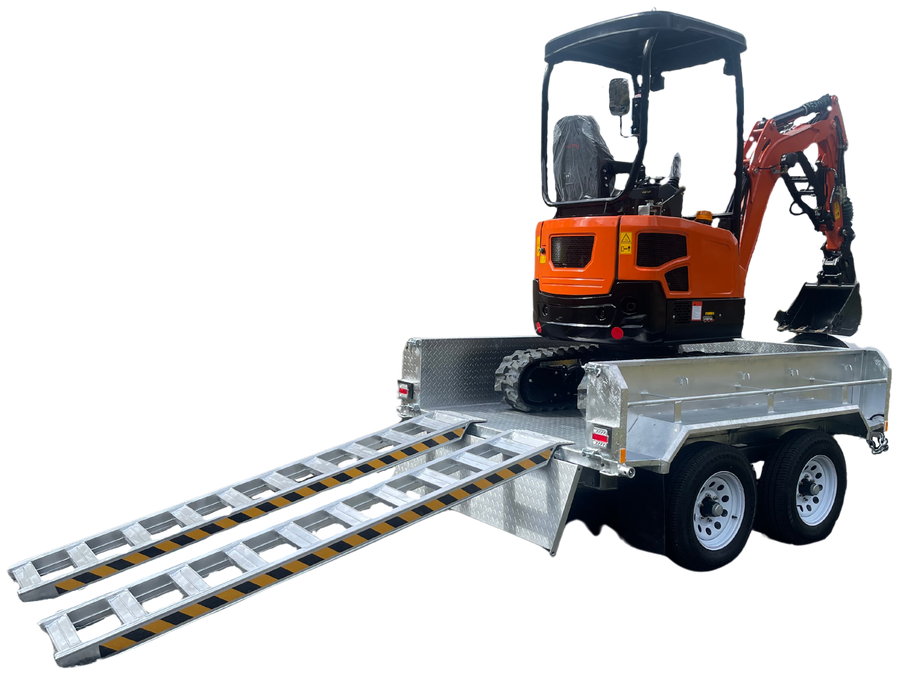

Loading Ramps5-tonne rated alloy ramps for trailers and utes.Shop ramps

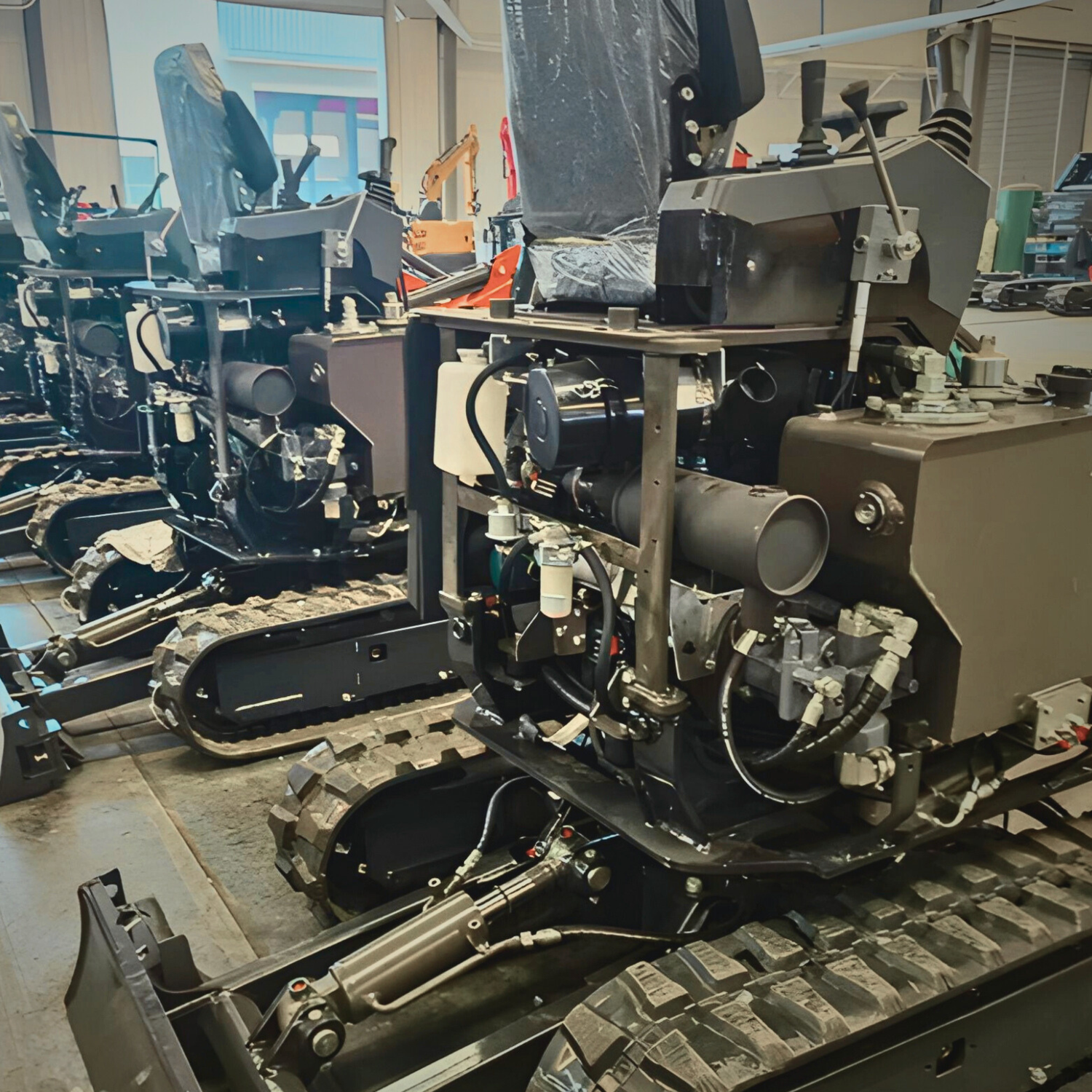

Assembled and tested in Derwent Park
The Affordable Machinery mini excavator range
Every machine is sold as a complete package with attachments, a 12-month parts warranty and spares stocked in Tasmania.
- Dig depth1655 mm
- Dump height1725 mm
- EngineKOOP KD192FE 7.6kW @ 3600rpm
- Width930 mm
- Telescopic Expanding Chassis
- Top-Mounted Cylinder Boom
Package price
$16,490.00Sold out, restock TBC
- Dig depth2000 mm
- Dump height1950 mm
- EngineLaidong KM385 18.1kW / 24.3hp
- Telescopic Expanding Chassis
- Offset Boom with Internal Hoses
Package price
$23,990.00Sold out, restock TBC

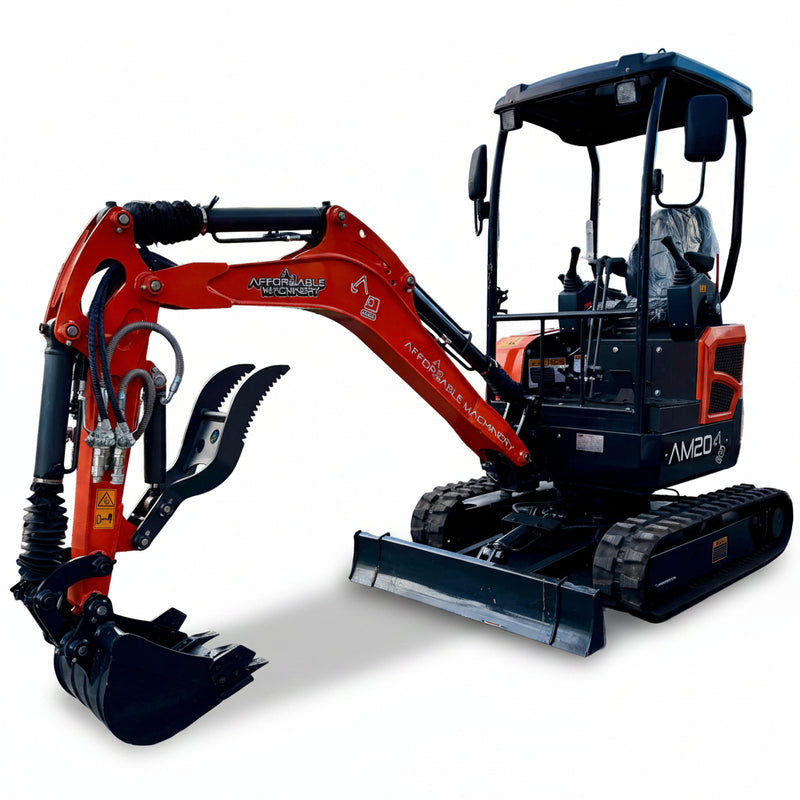

- Dig depth2400 mm
- Dump height2440 mm
- EngineKubota D1105-E3 18.5 kW @ 3000 rpm
- Track width990-1300mm
- Compact Chassis (Fits Standard Gates)
- Full 360-Degree Rotation
Package price
$29,990.00Sold out, restock TBC
COMPARE THE RANGE
| Specification |
 AM10
1.0T Mini Excavator Package
|

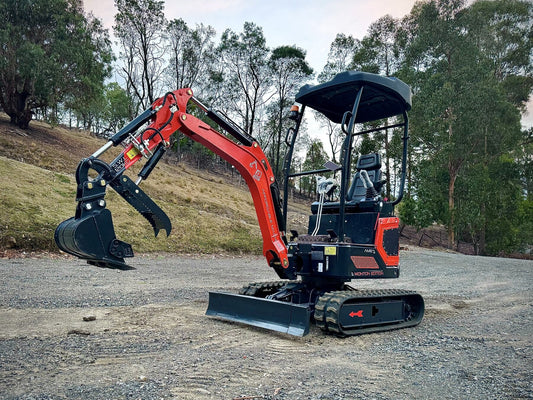

 AM12
1.2T Mini Excavator Package
|
 AM16
1.6T Mini Excavator Package
|
 AM20
2.0T Mini Excavator Package
|
|---|---|---|---|---|
| Operating weight | 1000 kg | 1200 kg | 1600 kg | 2000 kg |
| Machine (dry) weight | 850 kg | 1050 kg | 1500 kg | 1790 kg |
| Max digging depth | 1630 mm | 1655 mm | 2000 mm | 2400 mm |
| Max dumping height | 1960 mm | 1725 mm | 1950 mm | 2440 mm |

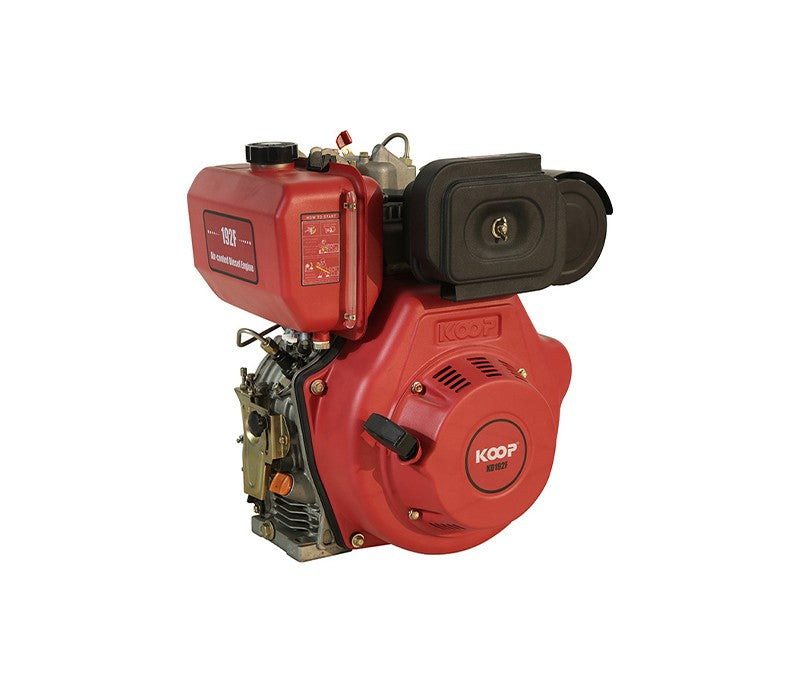

| Engine | KOOP KD192F | KOOP KD192FE | Laidong KM385 | Kubota D1105-E3 |
| Rated power | 7kW @ 3000rpm | 7.6kW @ 3600rpm | 18.1kW / 24.3hp | 18.5 kW @ 3000 rpm |
| Hydraulic system | Single Gear Pump, 16MPa System Pressure, 1.116 L/CC Flow Rate | Double Gear Pump, 16MPa System Pressure | Double Gear Pump, 16MPa System Pressure | Bosch Rexroth piston pump, load-sensing, 21.5MPa system pressure |
| Track width (telescopic) | 900-1100mm | — | — | 990-1300mm |
| Travel speed | ~2.5km/hkm/h | ~2.5km/hkm/h | ~2.5km/hkm/h | ~2.5km/h - ~5.0km/hkm/h |
| Swing speed | 10.5 rpm | 11.0 rpm | 12.0 rpm | 9.0 rpm |
| Price | $12,990.00Sold out — restock TBC | $16,490.00Sold out — restock TBC | $23,990.00Sold out — restock TBC | $29,990.00Sold out — restock TBC |
| View machine | View machine | View machine | View machine |

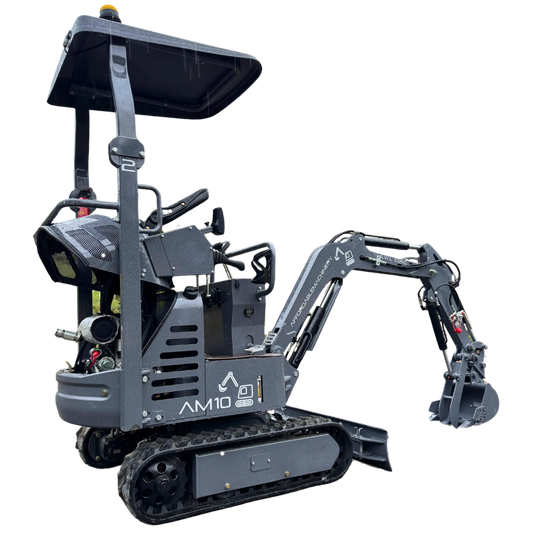

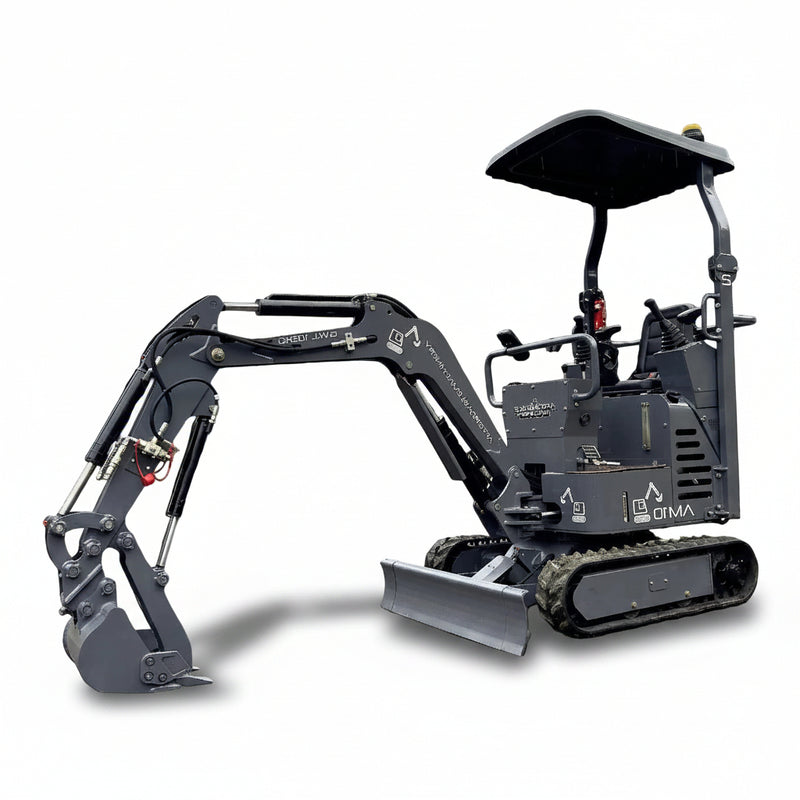

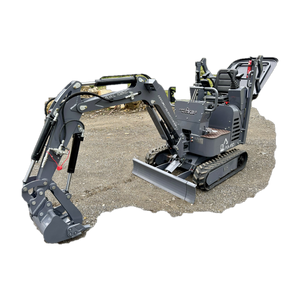

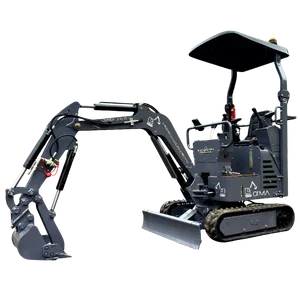

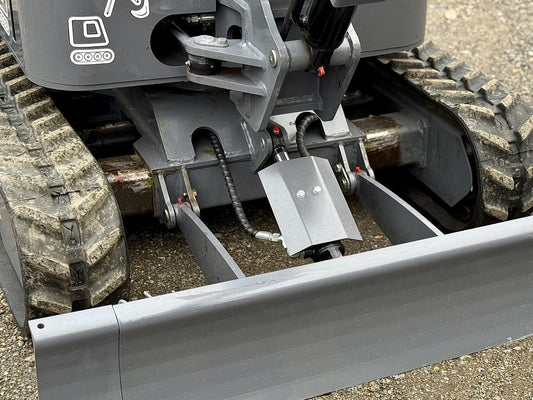

AM10
1.0T Mini Excavator Package
- Operating weight
- 1000 kg
- Machine (dry) weight
- 850 kg
- Max digging depth
- 1630 mm
- Max dumping height
- 1960 mm
- Engine
- KOOP KD192F
- Rated power
- 7kW @ 3000rpm
- Hydraulic system
- Single Gear Pump, 16MPa System Pressure, 1.116 L/CC Flow Rate
- Track width (telescopic)
- 900-1100mm
- Travel speed
- ~2.5km/hkm/h
- Swing speed
- 10.5 rpm

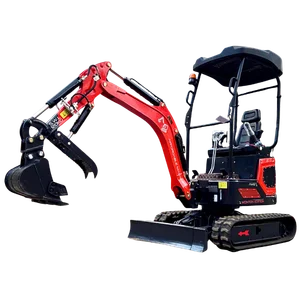

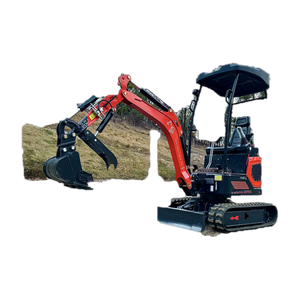

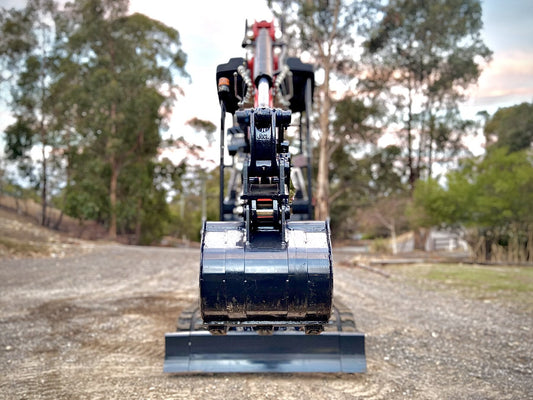

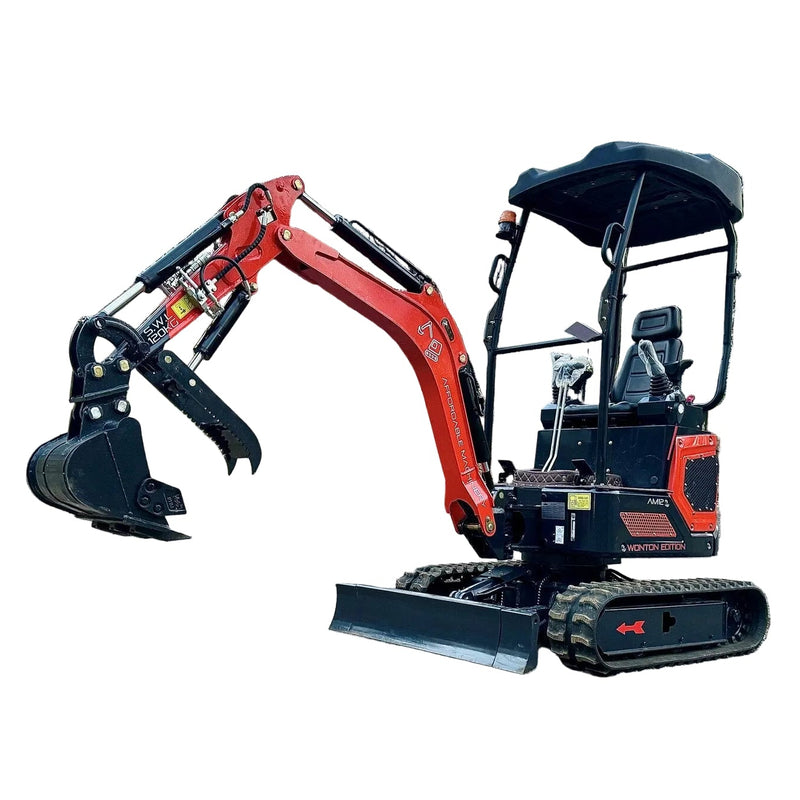

AM12
1.2T Mini Excavator Package
- Operating weight
- 1200 kg
- Machine (dry) weight
- 1050 kg
- Max digging depth
- 1655 mm
- Max dumping height
- 1725 mm
- Engine
- KOOP KD192FE
- Rated power
- 7.6kW @ 3600rpm
- Hydraulic system
- Double Gear Pump, 16MPa System Pressure
- Travel speed
- ~2.5km/hkm/h
- Swing speed
- 11.0 rpm

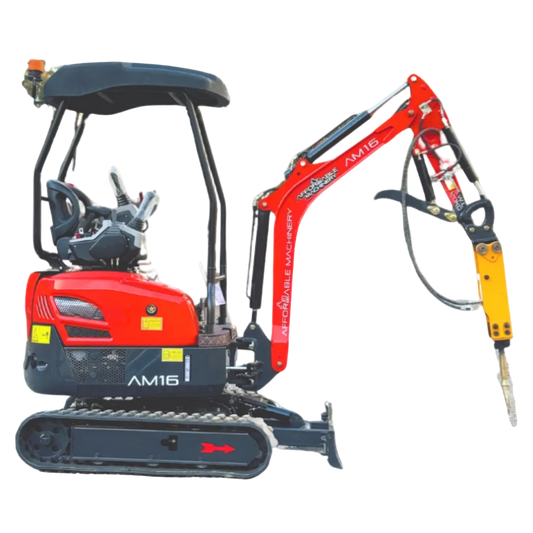

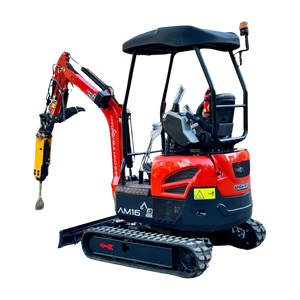

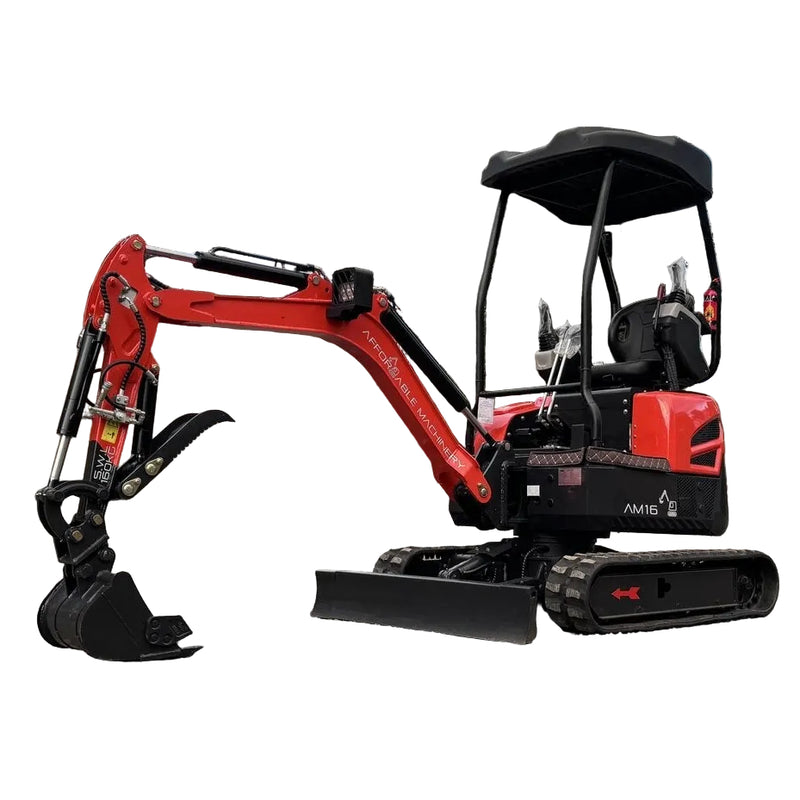

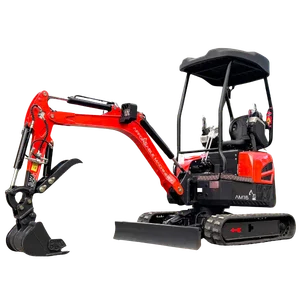

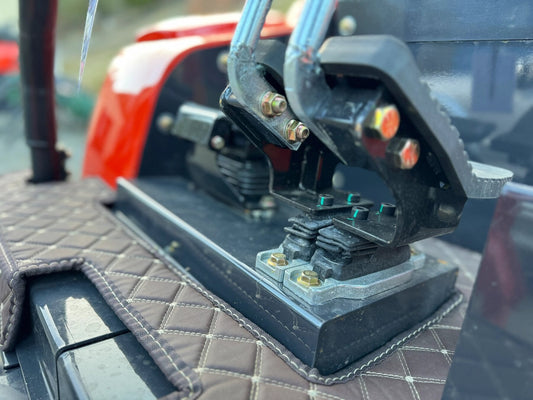

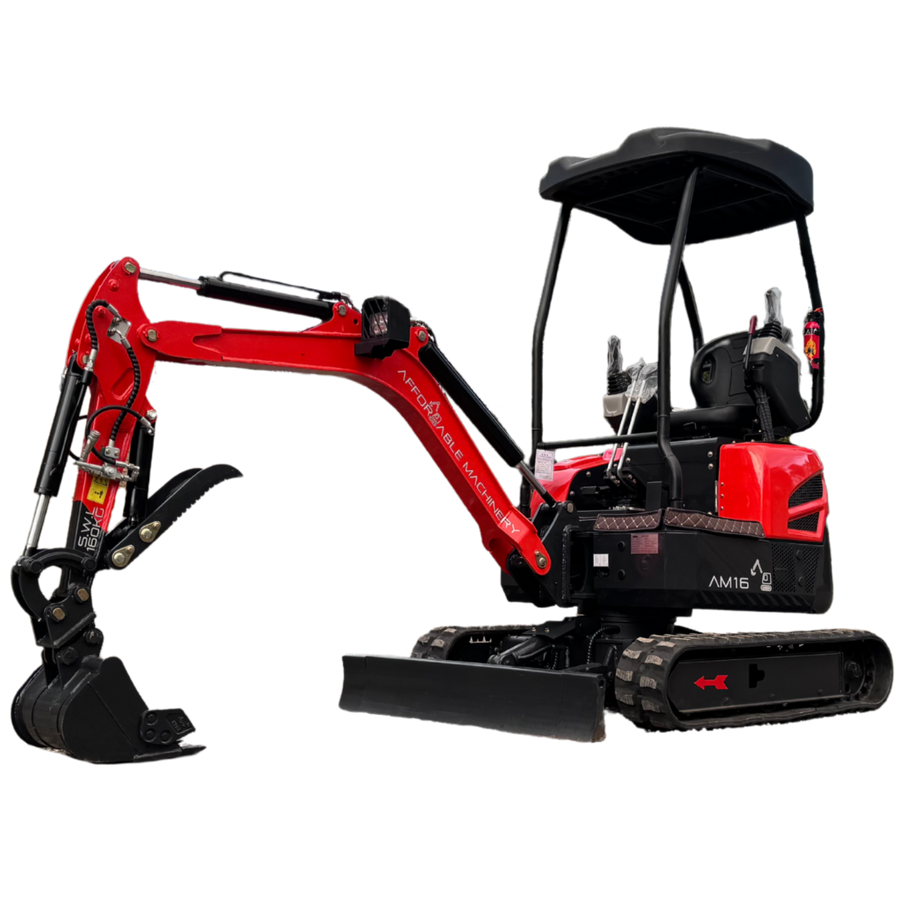

AM16
1.6T Mini Excavator Package
- Operating weight
- 1600 kg
- Machine (dry) weight
- 1500 kg
- Max digging depth
- 2000 mm
- Max dumping height
- 1950 mm
- Engine
- Laidong KM385
- Rated power
- 18.1kW / 24.3hp
- Hydraulic system
- Double Gear Pump, 16MPa System Pressure
- Travel speed
- ~2.5km/hkm/h
- Swing speed
- 12.0 rpm

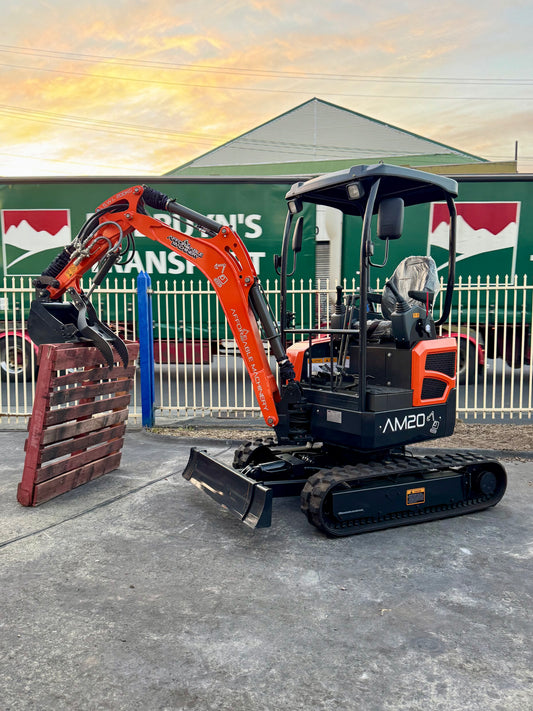

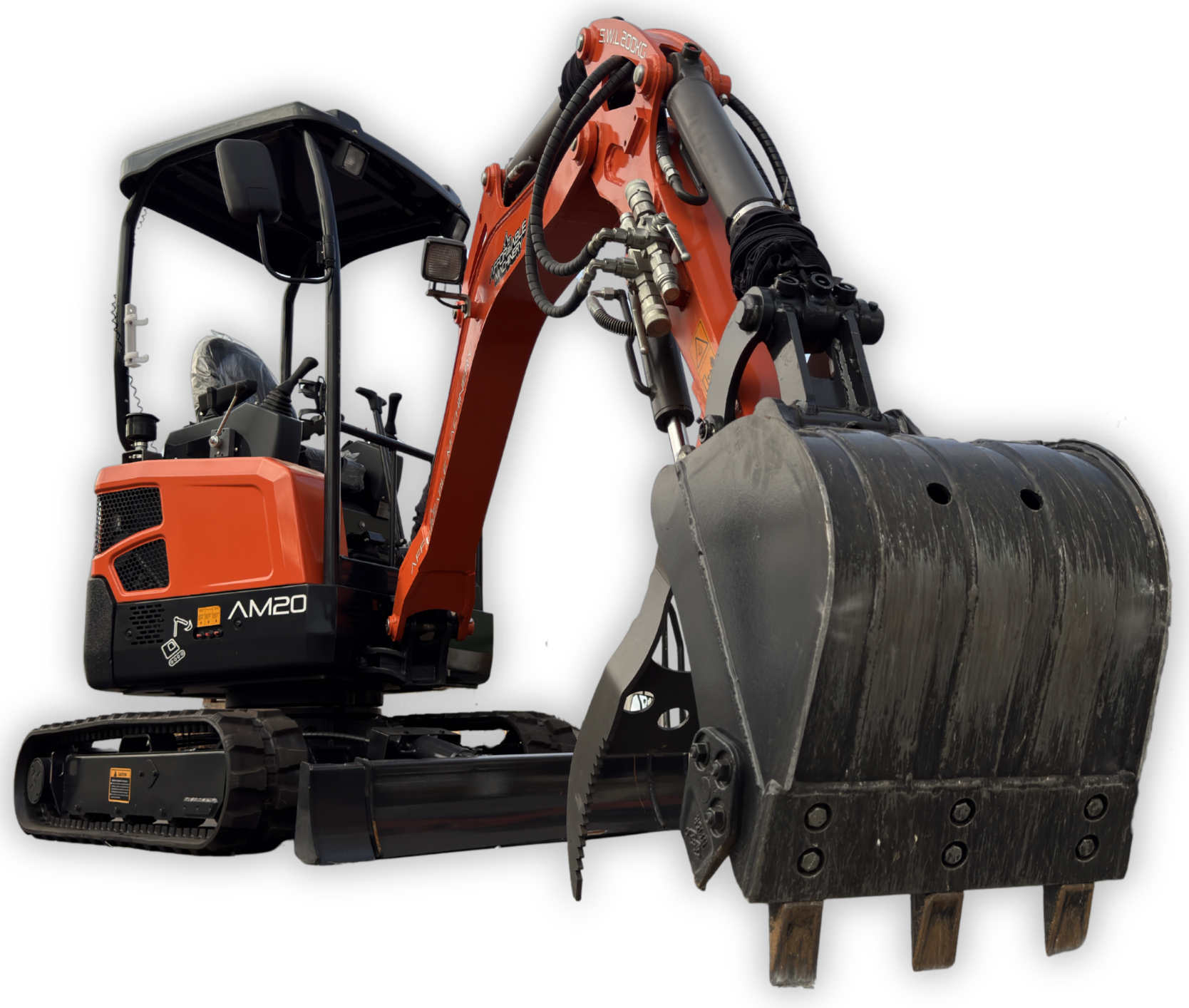

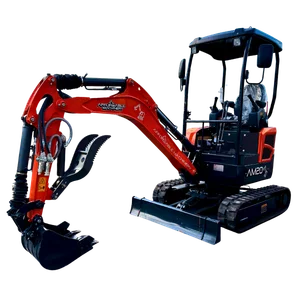

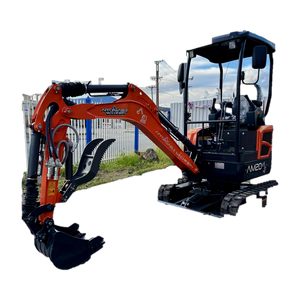

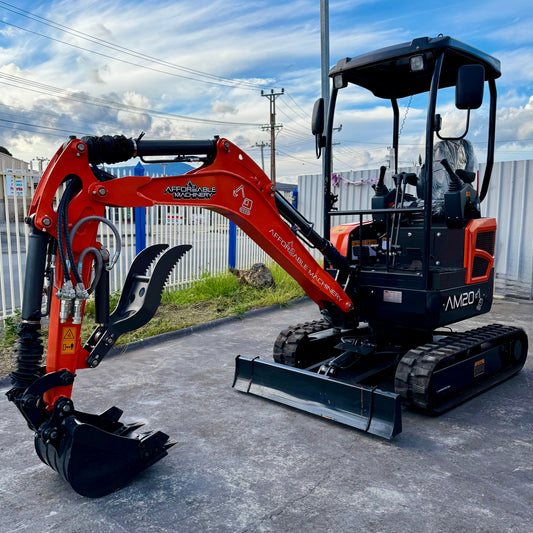

AM20
2.0T Mini Excavator Package
- Operating weight
- 2000 kg
- Machine (dry) weight
- 1790 kg
- Max digging depth
- 2400 mm
- Max dumping height
- 2440 mm
- Engine
- Kubota D1105-E3
- Rated power
- 18.5 kW @ 3000 rpm
- Hydraulic system
- Bosch Rexroth piston pump, load-sensing, 21.5MPa system pressure
- Track width (telescopic)
- 990-1300mm
- Travel speed
- ~2.5km/h - ~5.0km/hkm/h
- Swing speed
- 9.0 rpm
Distributed in Tasmania by Affordable Machinery, Derwent ParkRoo Attachments for mini excavators
Buckets, rakes, rippers, grabs, breakers and rammers for 0.8 to 2.7 tonne excavators, pre-built to your machine's hook-up by an Australian-owned company and backed by us locally.
- Australian owned, warehoused in Australia
- Pre-built to your machine's hook-up
- 12-month warranty, handled in Derwent Park
-
Bucket · 1.5 to 1.8 t

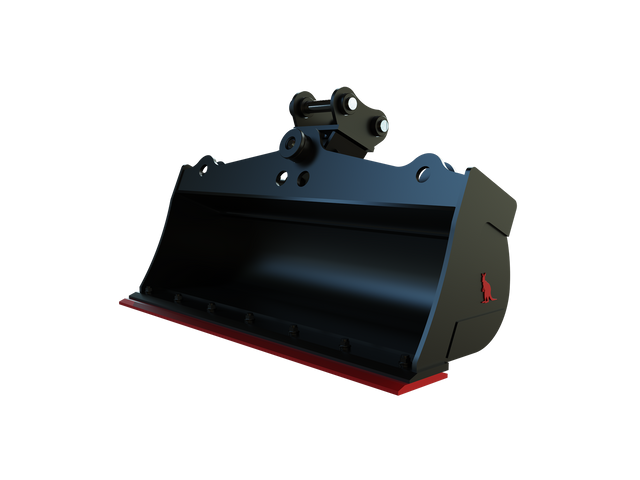

Tilting Mud Bucket - 1000mm
$2,618.00
In stock, Hobart
View attachment
-
Grab · 2.0 to 2.7 t
Hydraulic Grab - 400mm
$2,876.50
1 to 2 weeks from Roo
View attachment
-
Grab · 1.5 to 1.8 t

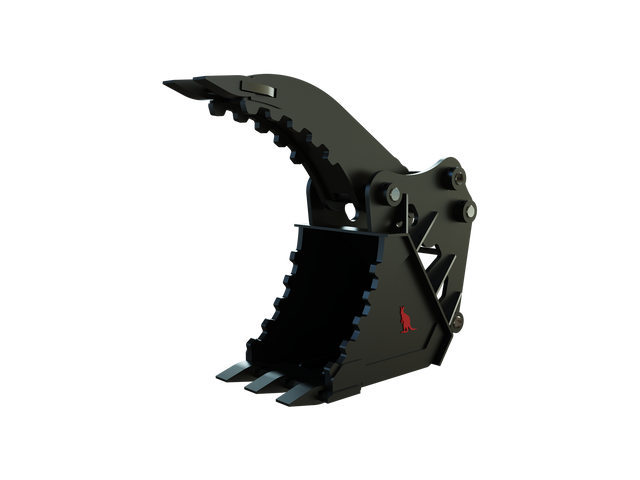

Grapple Bucket - 300mm
$3,085.50
1 to 2 weeks from Roo
View attachment
-
Bucket · 1.5 to 1.8 t

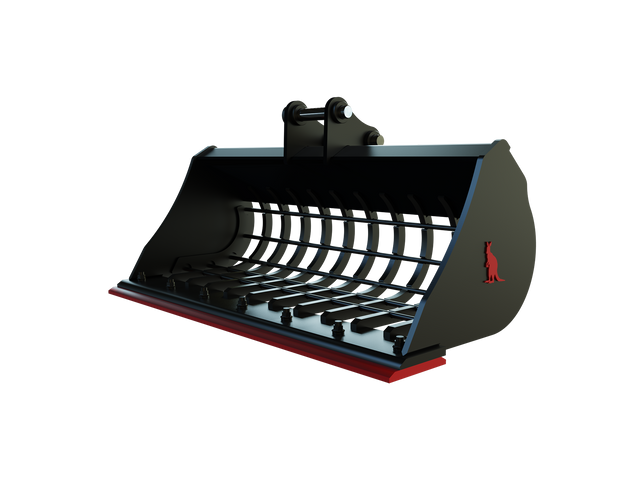

Sieve Bucket - 1000mm
$1,493.25
In stock, Hobart
View attachment
-

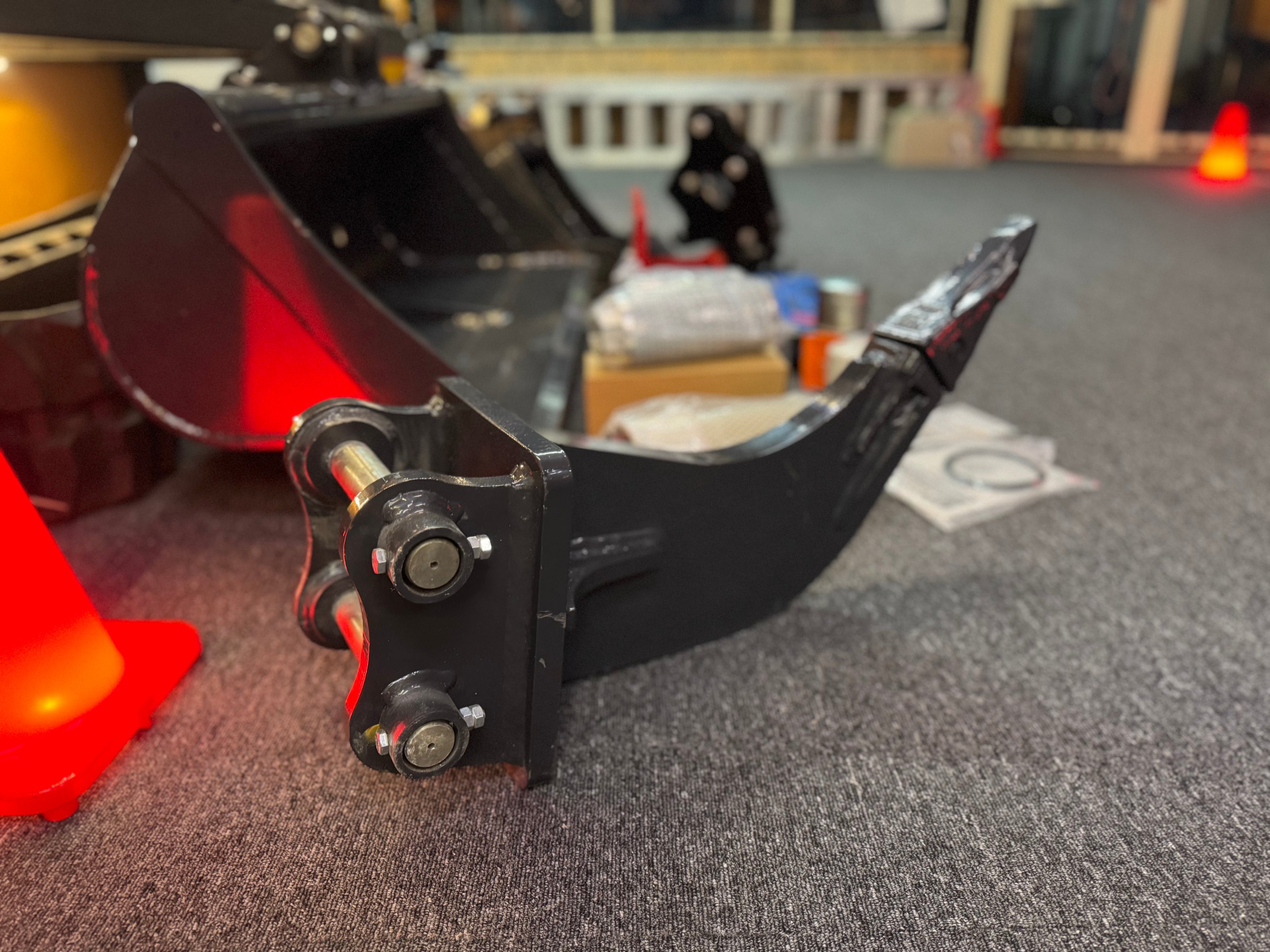

Ripper · 1.5 to 1.8 t

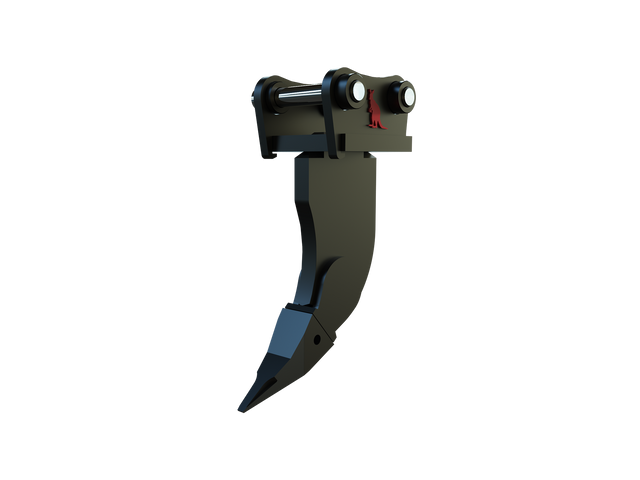

Ripper
$528.00
In stock, Hobart
View attachment
-
Rake · 1.5 to 1.8 t

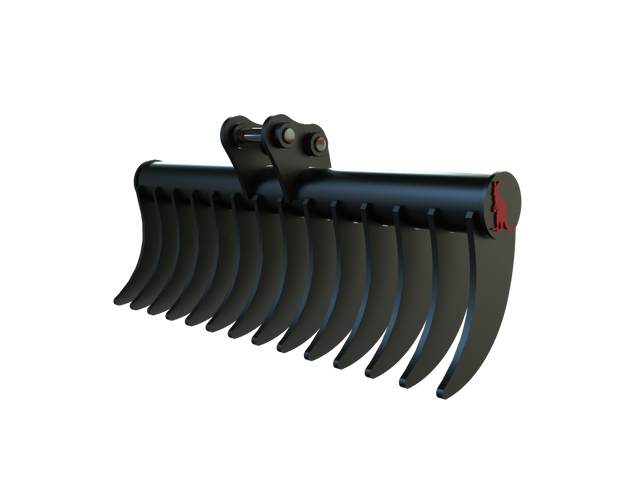

Stick Rake - 1000mm
$1,210.00
1 to 2 weeks from Roo
View attachment
-
Breaker · 1.2 to 2.7 t
RH-20 Rock Breaker
$5,128.75
1 to 2 weeks from Roo
View attachment
-
Compactor · 2.0 to 3.0 t
RC-02 Compactor Plate
$5,142.50
1 to 2 weeks from Roo
View attachment
Shop attachments by your machine
Pick your excavator and we only show what bolts straight on.
Ready to collect or ship
In stock now
Attachments on the shelf in Derwent Park this week.
-

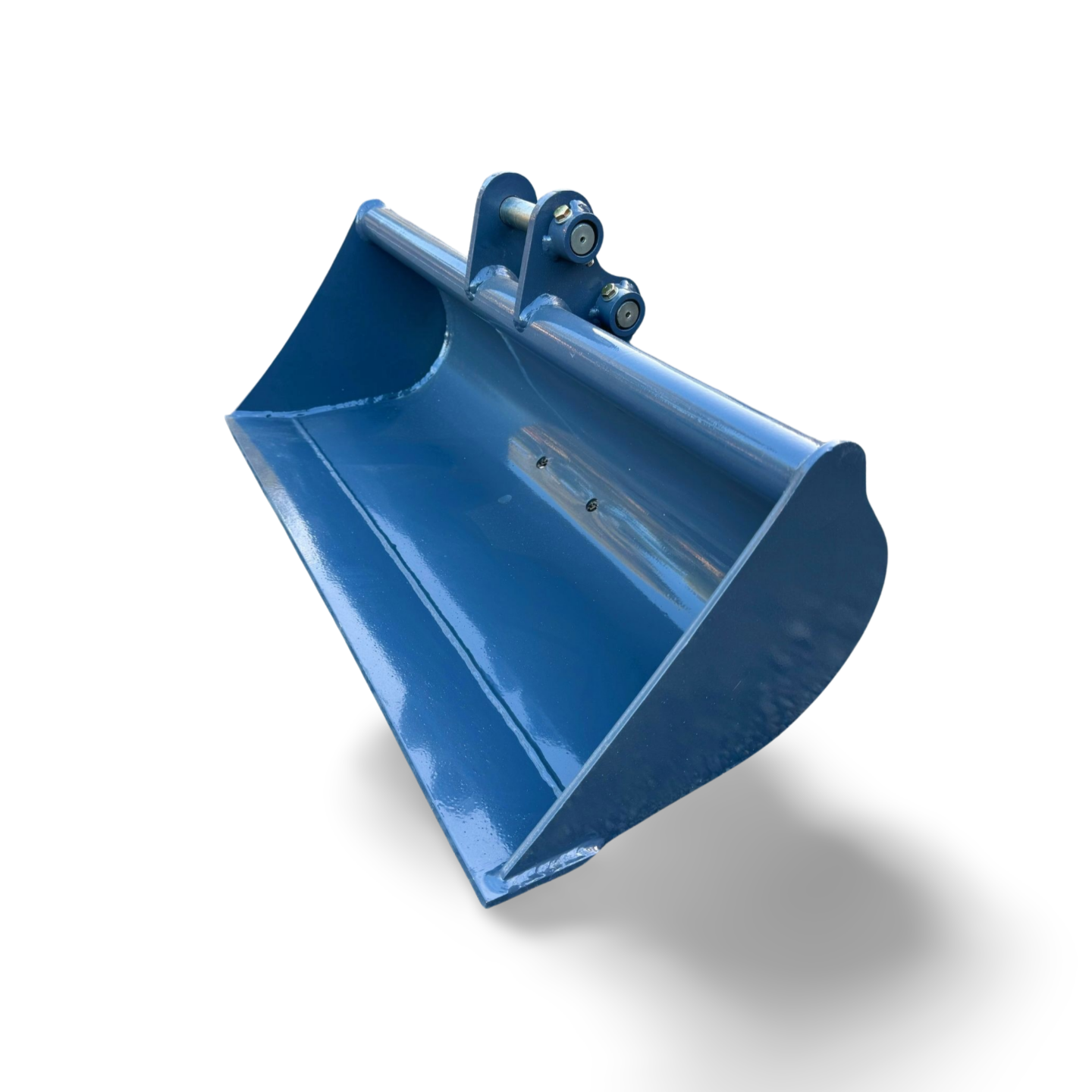

Only 1 leftMini Excavator - Mud Bucket - 1000mm | 30P/118C/120E
Regular price $649.00 AUDRegular price -

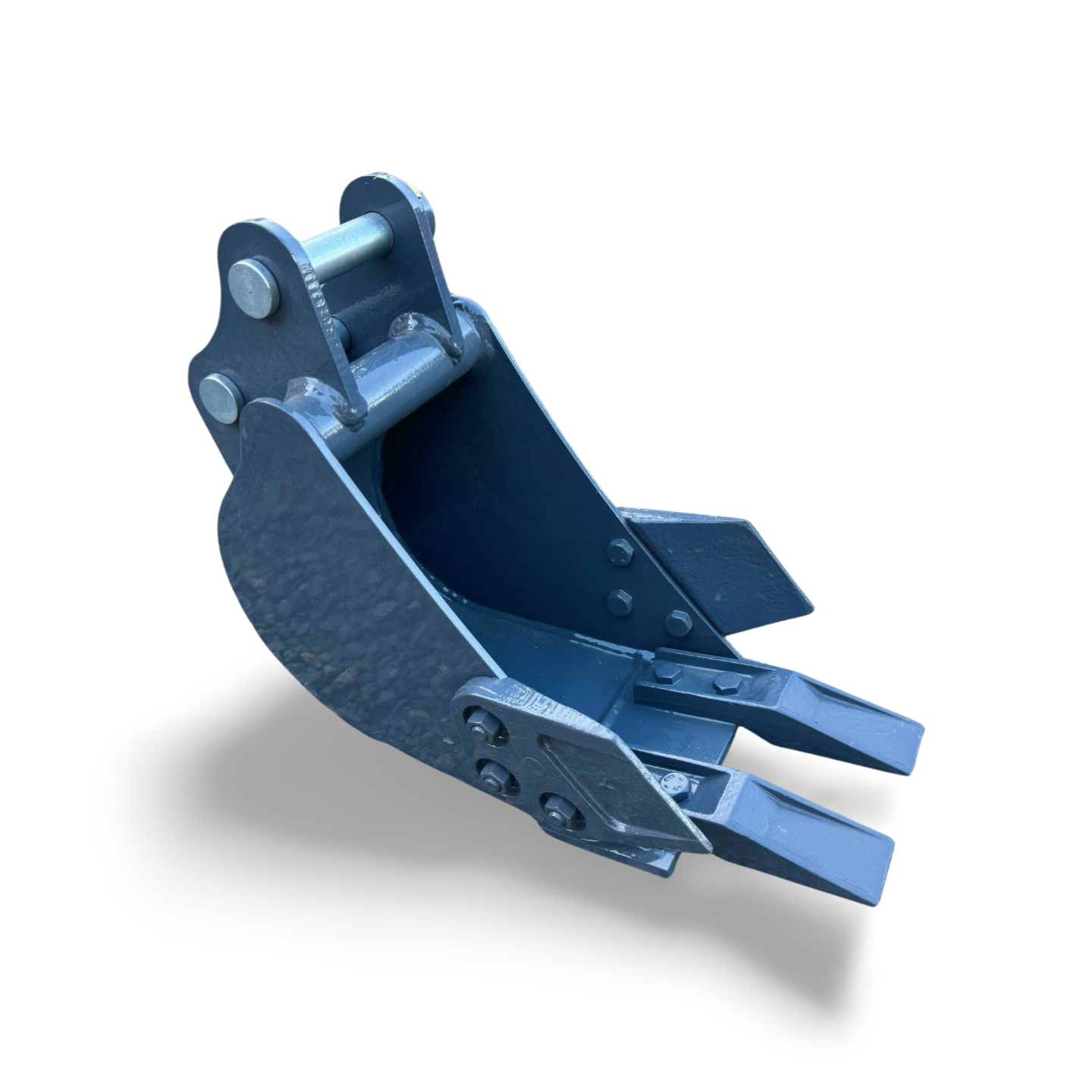

Only 1 leftMini Excavator - Trenching Bucket - 200mm | 30P/118C/120E
Regular price $449.00 AUDRegular price -

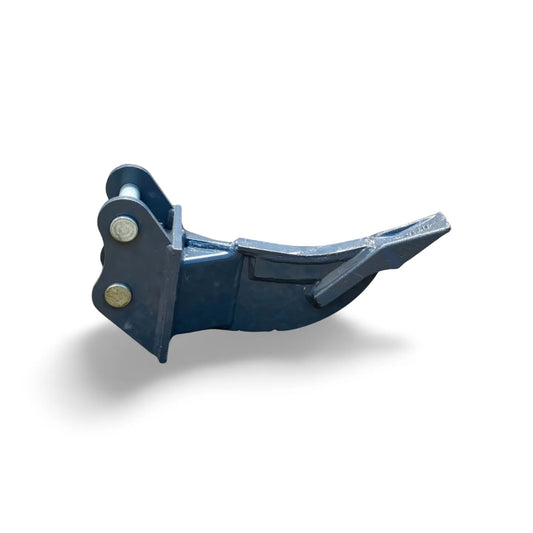

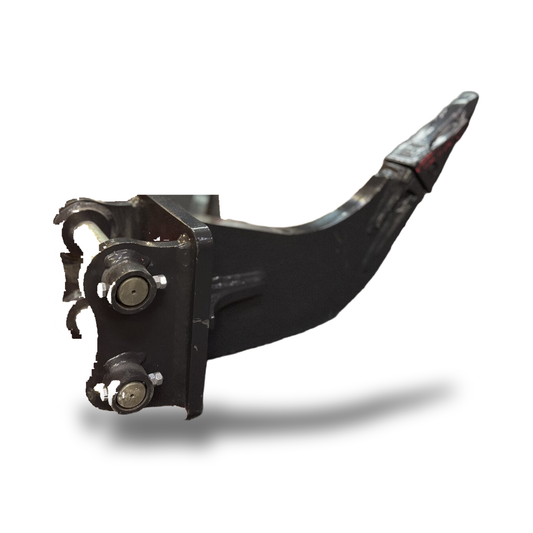

Only 1 leftMini Excavator - Ripper | 30P/118C/120E
Regular price $399.00 AUDRegular price -

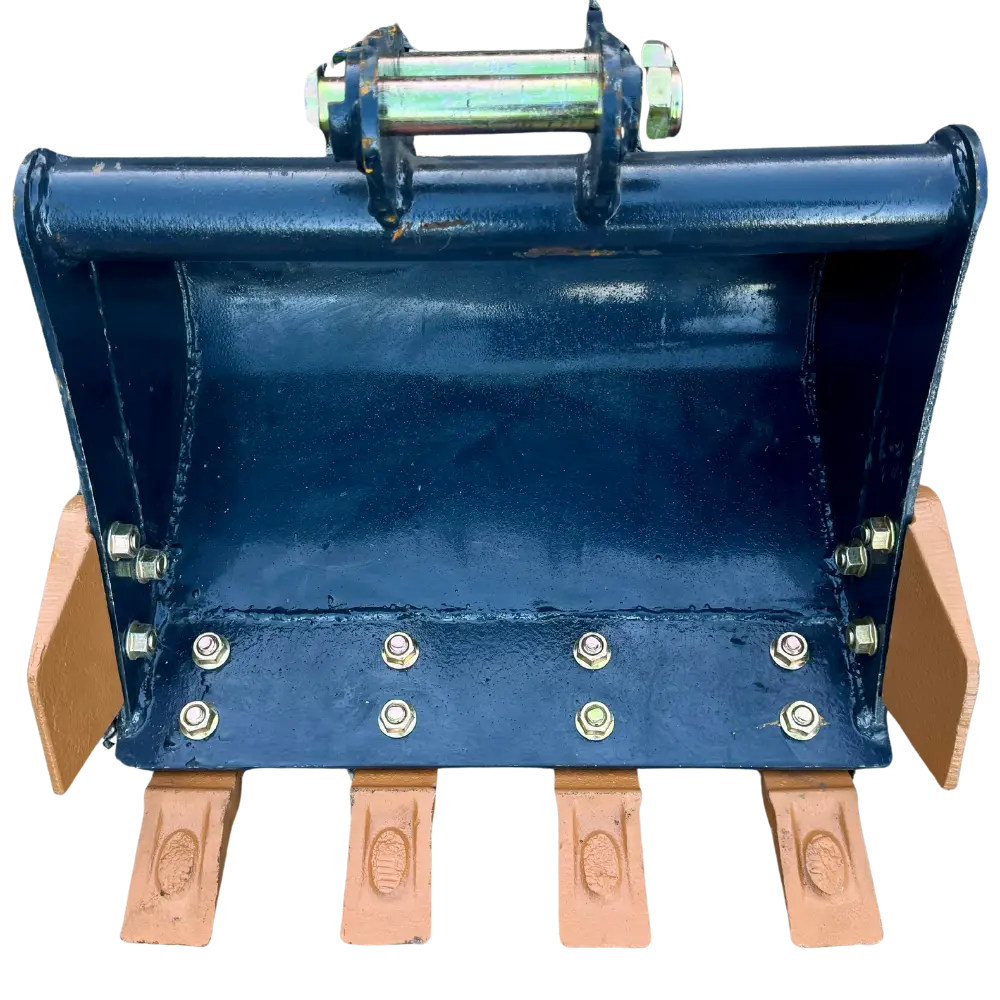

Only 1 leftMini Excavator - GP Digging Bucket - 450mm | 30P/118C/120E
Regular price $850.00 AUDRegular price
