Fitment and part numbers
Ignition Start Switch with Key - AM12 suits the AM12 1.2T Mini Excavator (KOOP KD192F / KD192FE engine). Stocked locally in Derwent Park, Tasmania.
Not sure it is the right part? Send us a photo of the part or your machine's serial plate and we will confirm the match before you order. Ask about fitment
Part details
| Our SKU | AM-PRT-AM12-IGN |
|---|---|
| Voltage | 12 V |
| System | Electrical & Controls |

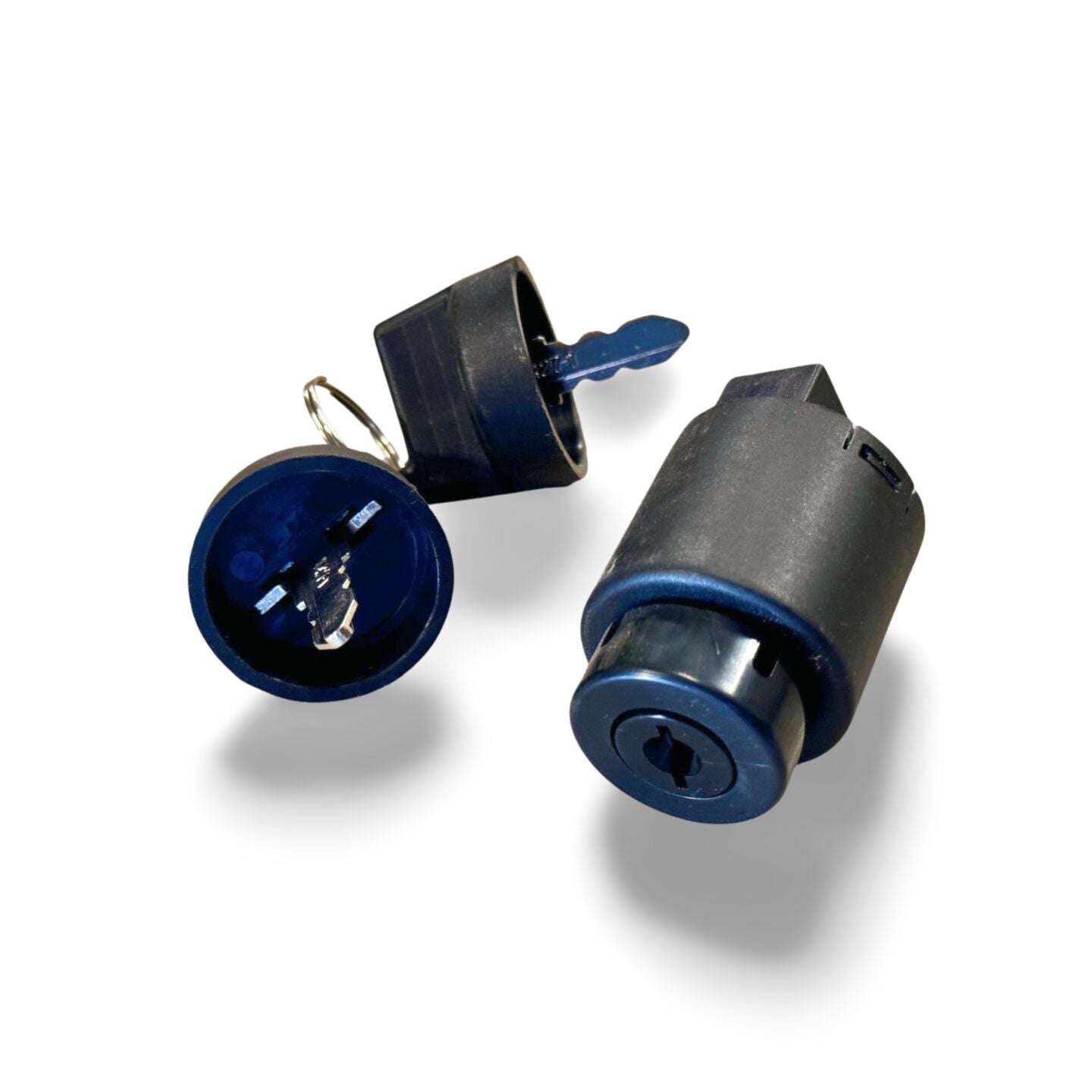

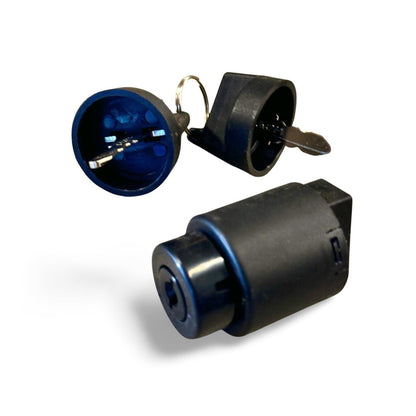

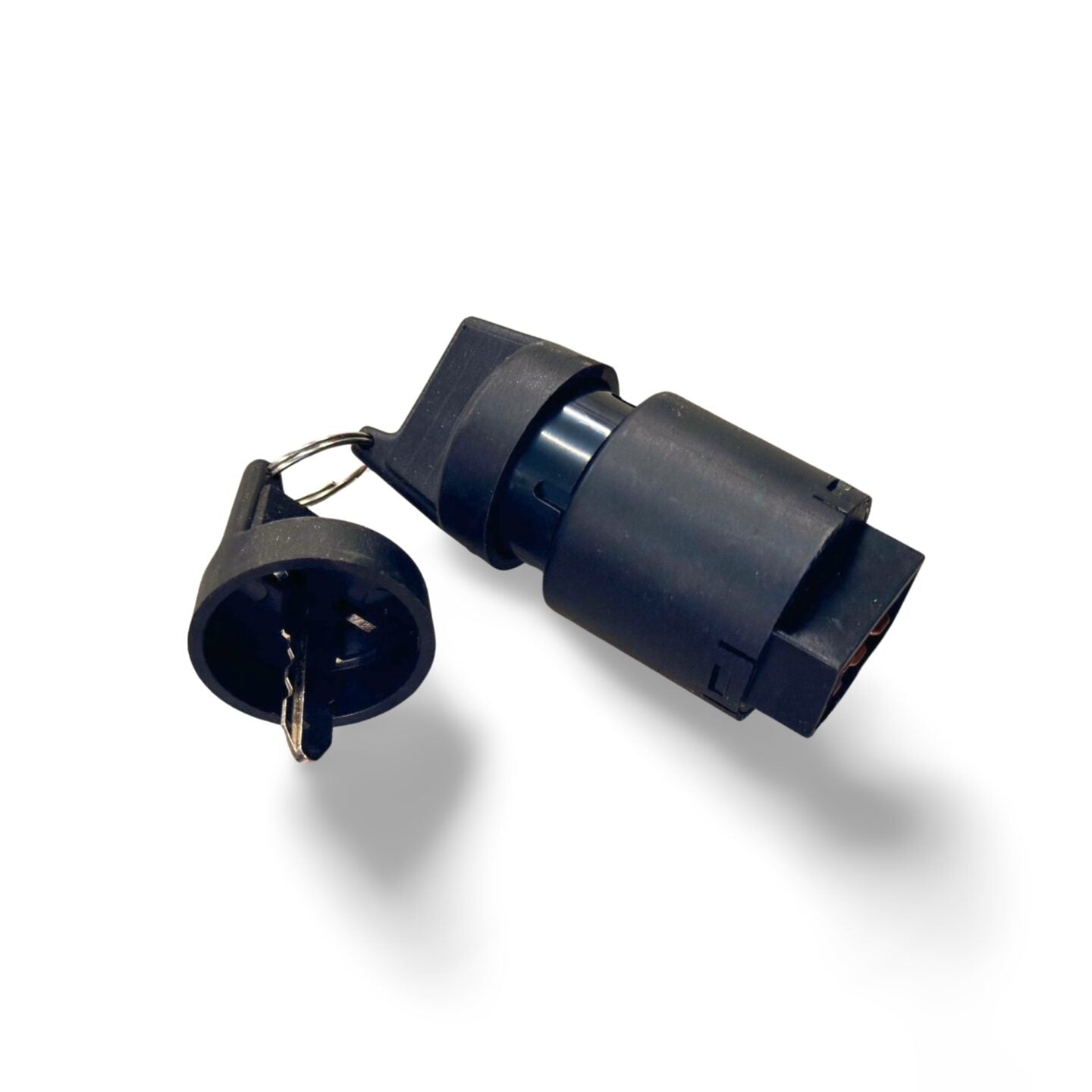

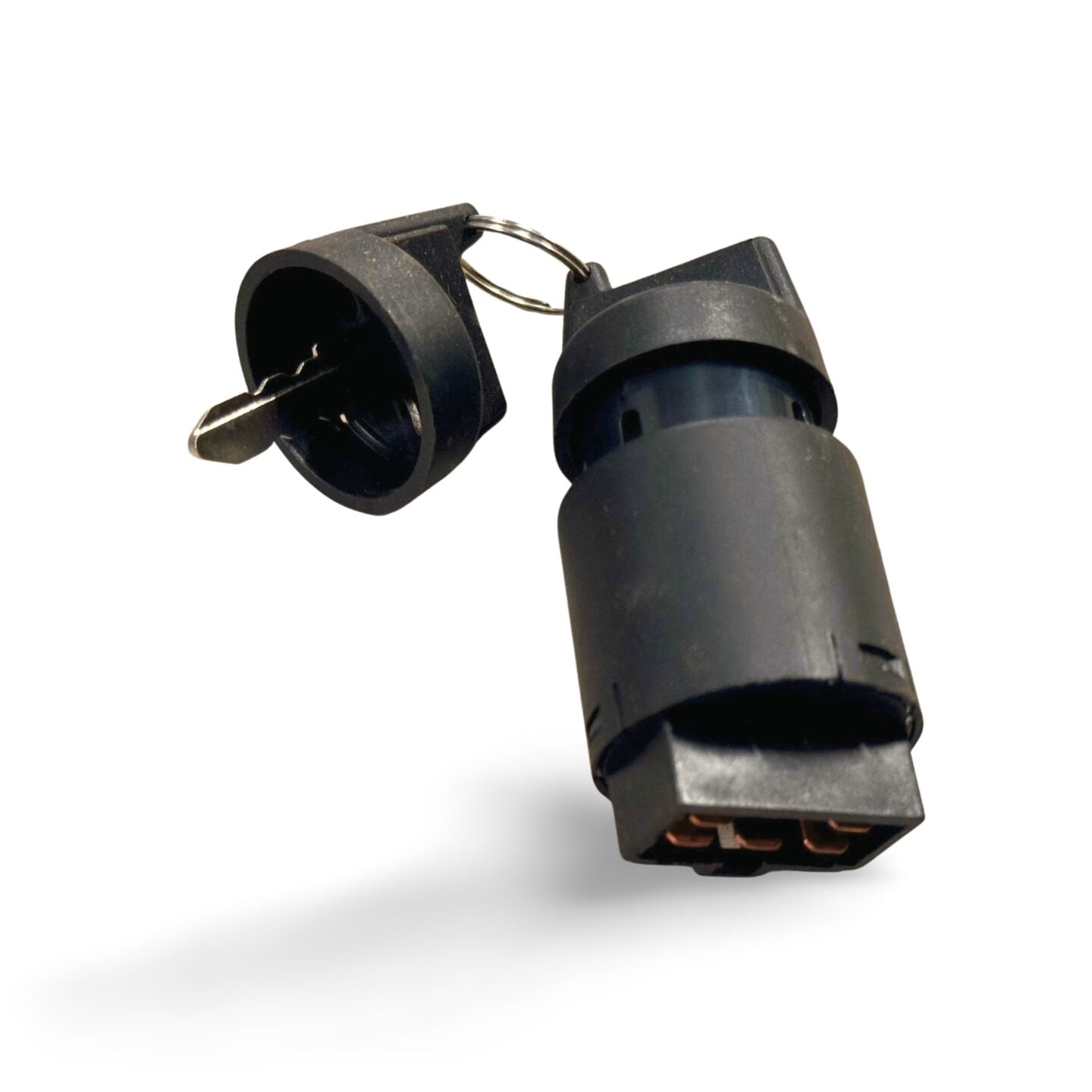

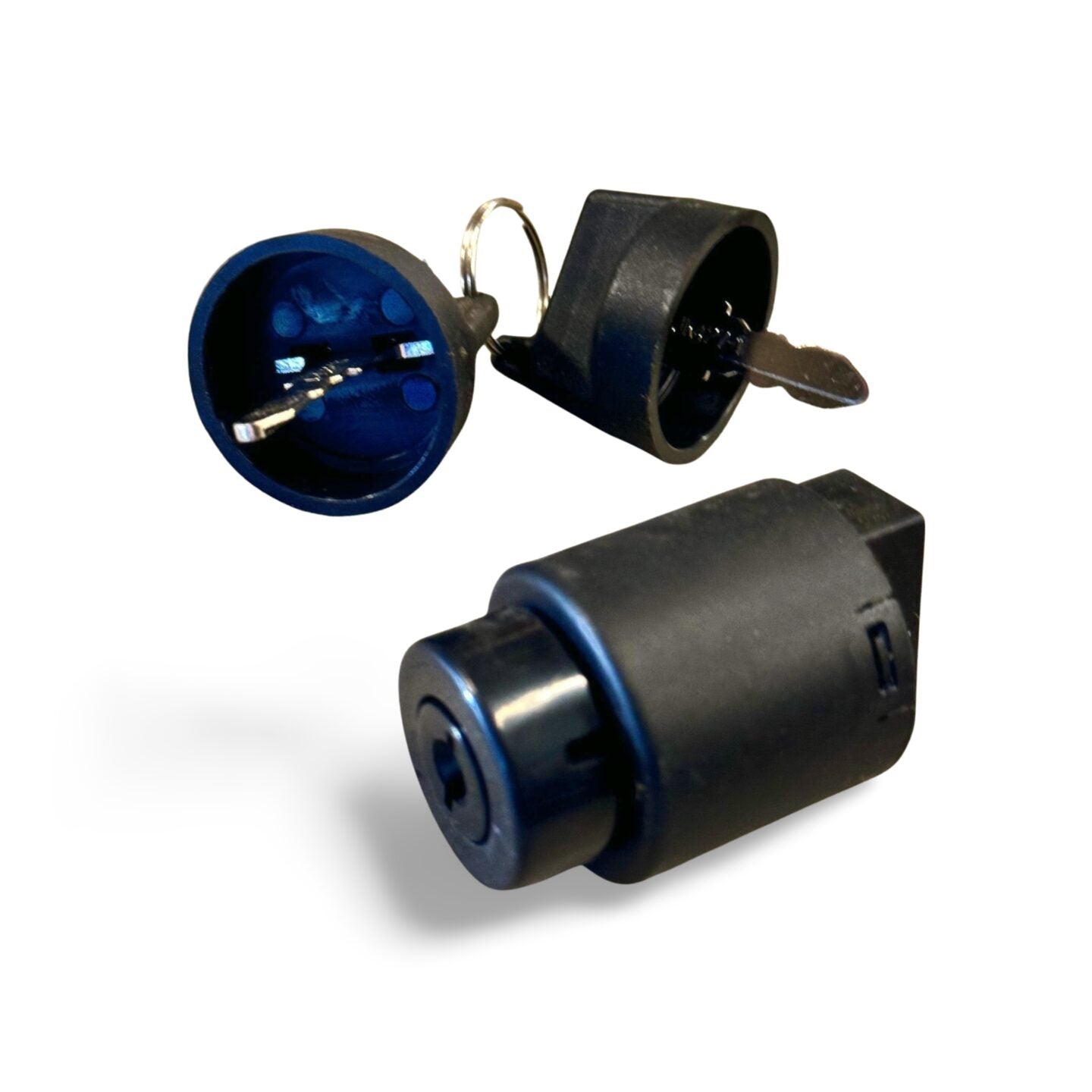

Genuine replacement ignition/start switch assembly with key for the AM12 1.2T mini excavator (KOOP KD192FE engine). Controls engine start, ignition, and accessory functions.
Specifications
- Voltage: 12V DC
- Contact Type: Multi-position rotary (OFF, ACC, RUN, START)
- Current Rating: 20A continuous, 50A peak (starter circuit)
- Key Style: Standard round/flat head (fits original AM12 keyhole)
- Mounting: Panel or dash-mount bracket (included)
- IP Rating: IP54 (splash-resistant, dust-proof)
- Material: Chrome-plated brass body, stainless steel hardware
Compatibility
Fits: AM12 1.2T mini excavator (KOOP KD192FE engine)
Electrical System: 12V DC (positive ground or negative ground, check existing)
Key Interchangeability: Uses same key spec as original AM12 switch
Function
- OFF: Cuts all power; engine stops
- ACC: Powers accessories (lights, gauges) without starting
- RUN: Engine ignition on; ready for start
- START: Engages starter motor; spring-loaded return to RUN
Installation Notes
- Disconnect battery negative terminal before removal (safety first)
- Note wire positions before removing old switch (color-coded wires help)
- Verify 12V DC supply to switch with multimeter before connecting
- Connect starter and ignition circuits per original wiring diagram
- Mount securely to prevent vibration damage (use rubber bushings)
- Test all switch positions (OFF, ACC, RUN, START) before reconnecting battery
- Verify engine starts reliably from cold
Warranty
- 12-month manufacturer warranty (parts only)
- Does not cover wiring damage or incorrect installation
