Machine & Bucket Pins - 25mm
Australia-wide delivery available. Freight is calculated at checkout from size and weight. Free pickup from Derwent Park.
Fitment and part numbers
Machine & Bucket Pins - 25mm suits the AM10 1.0T Mini Excavator, AM12 1.2T Mini Excavator and AM16 1.6T Mini Excavator. Stocked locally in Derwent Park, Tasmania.
Not sure it is the right part? Send us a photo of the part or your machine's serial plate and we will confirm the match before you order. Ask about fitment
Part details
| Our SKU | AM-PRT-GEN-PIN-25 |
|---|---|
| System | Linkage, Pins & Bushings |
| Pin diameter | 25 mm |

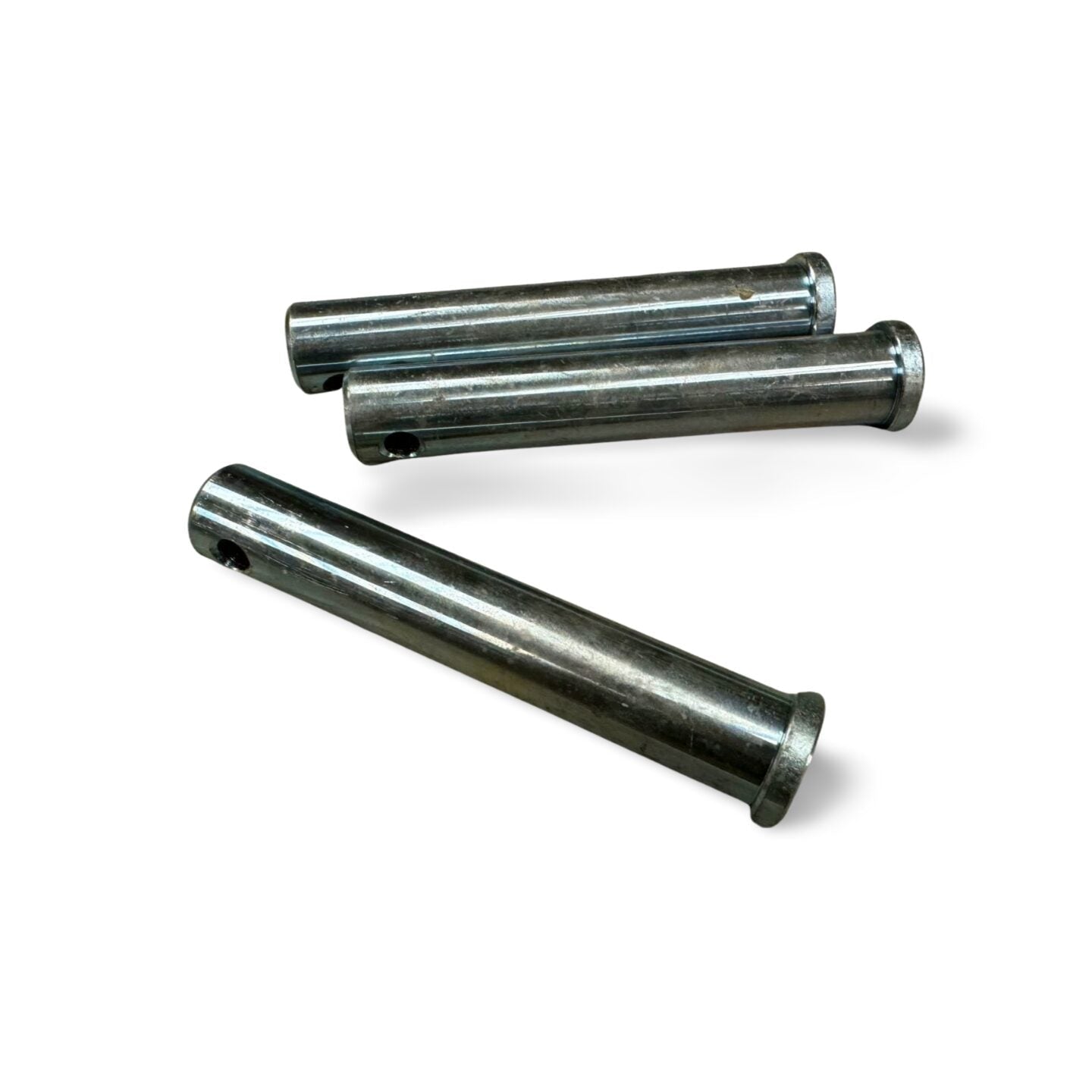

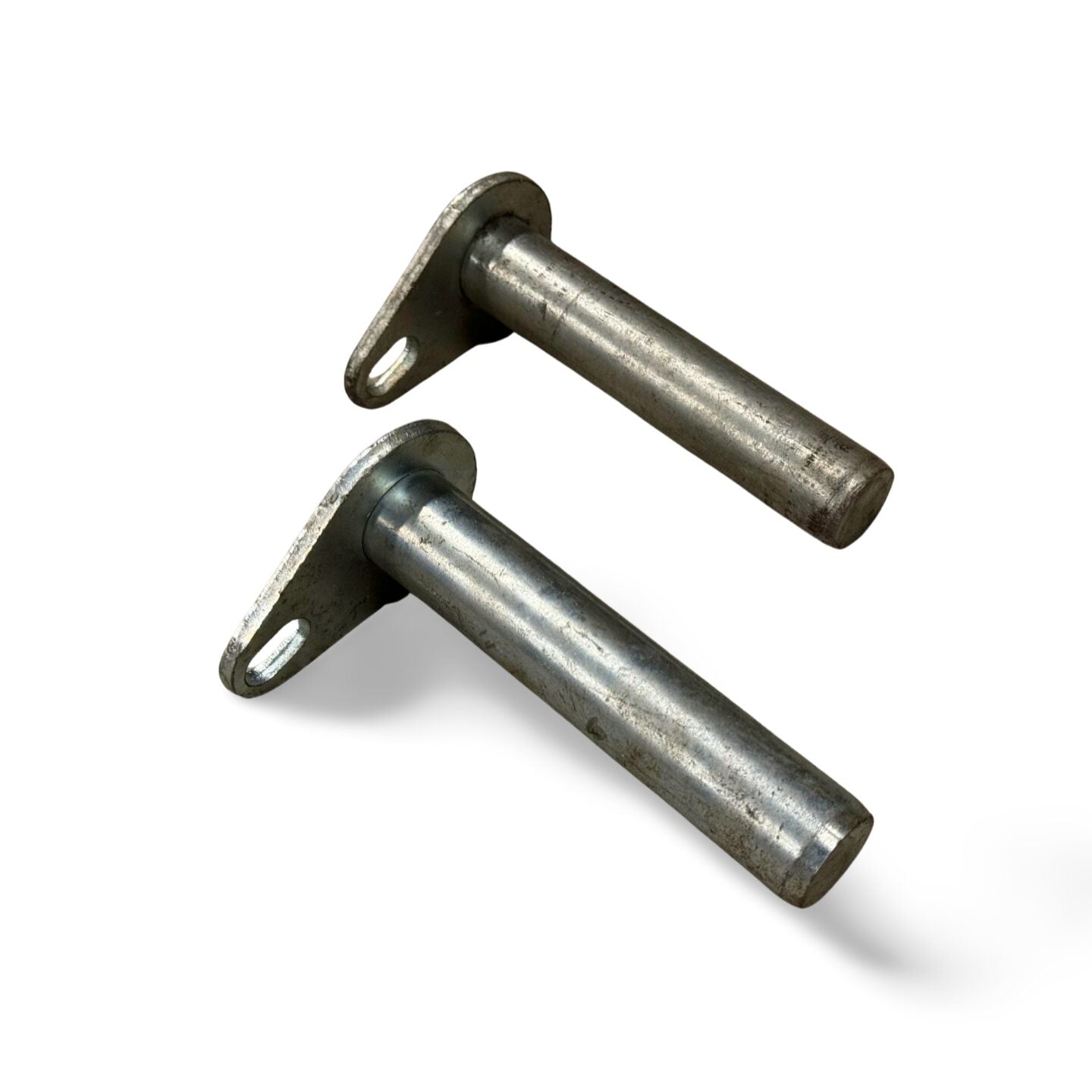

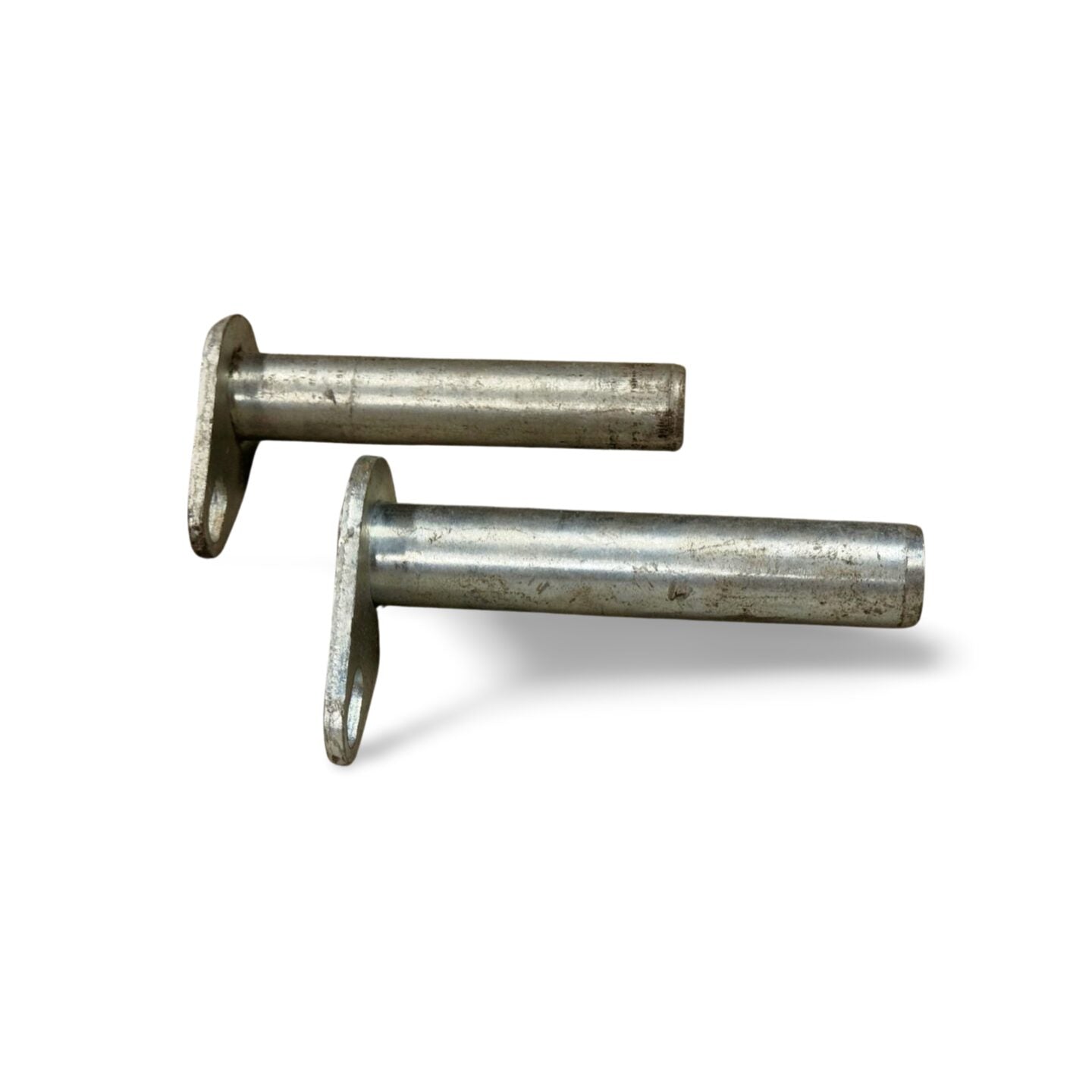

Replacement 25mm hardened steel pins for bucket and attachment connections on 1.0T–1.8T mini excavators. Includes retaining bolt and nyloc nut.
Specifications
- Diameter: 25mm
- Standard Length: 95mm (centre to centre of eye holes)
- Material: Hardened alloy steel (Grade 8.8 equivalent)
- Tensile Strength: 800+ MPa
- Surface Treatment: Zinc-plated for corrosion resistance
- Shear Load Rating: 60 kN (nominal, 1.5T safe working load)

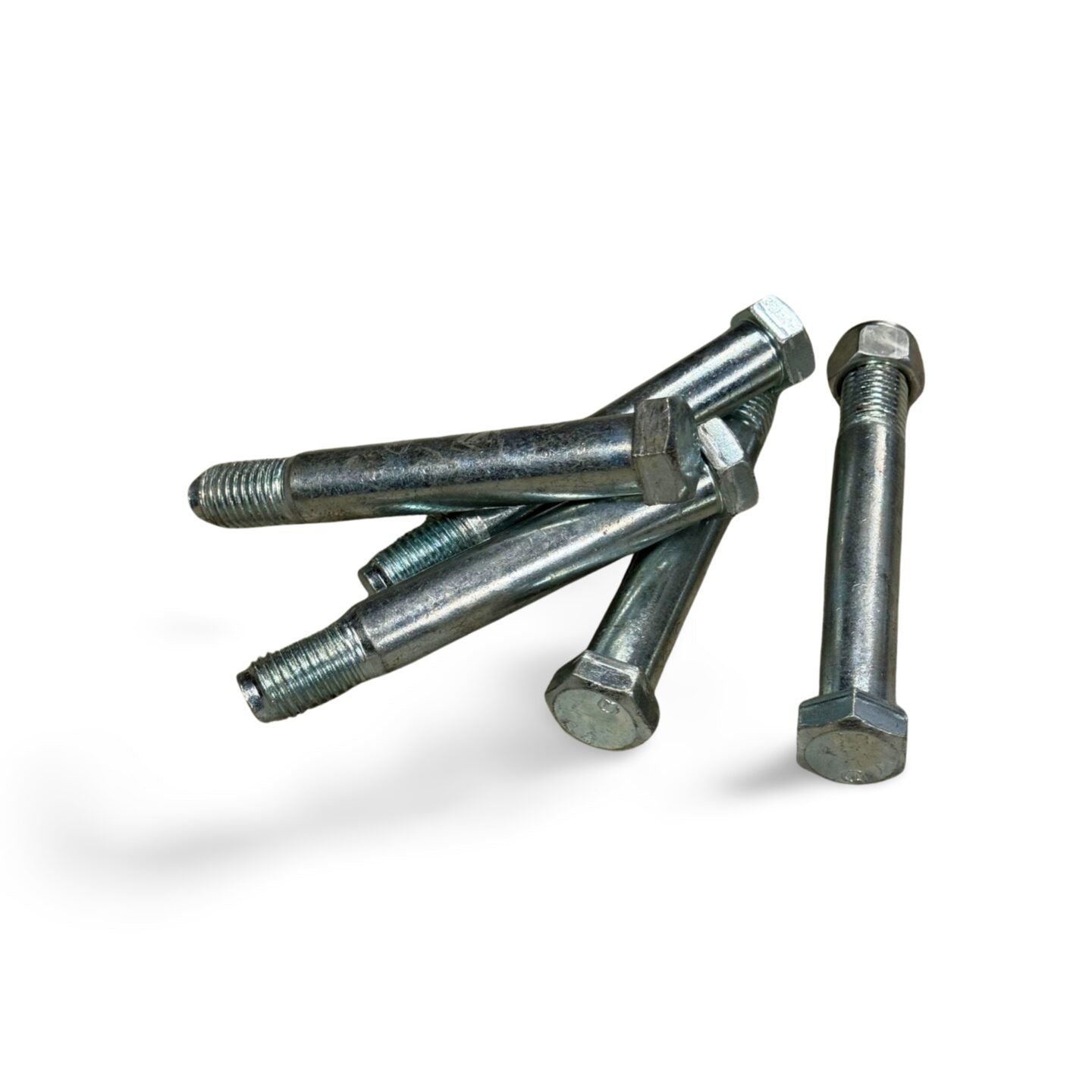

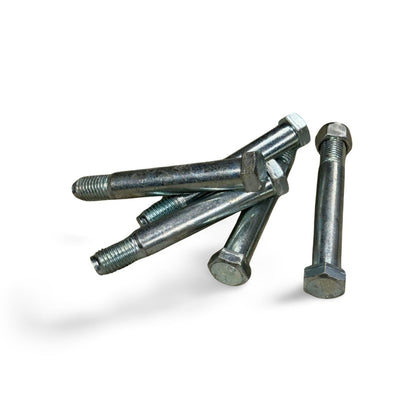

- Package Includes: 1× pin, 1× M16 retaining bolt, 1× M16 nyloc nut
Compatibility
- Fits: AM10 1.0T, AM12 1.2T, AM16 1.6T mini excavators
- Hitch Interface: 25P/90C/92E (25mm pin, 90mm pin centres, 92mm ear width)
- Attachments: Buckets, tilt cylinders, quick hitches rated for 25mm pins
Installation Notes
- Inspect pin holes for wear or galling before installation
- Use appropriate pin puller tool; do not hammer or force removal
- Clean and inspect retaining bolt and hole for damage
- Tighten retaining bolt to 60–70 Nm (hand-tight + half turn)
- Check bolt weekly during heavy use; replace nyloc nut if lost
Maintenance
- Recommended replacement interval: Every 1,000–1,500 operating hours or annually (whichever sooner)
- Signs of wear: Visible play, rocking motion when tilting bucket, difficulty removing pin
Australia-wide delivery available. Freight is calculated at checkout from size and weight.
Parts and filters ship Australia-wide. Freight is calculated at checkout from size and weight. Bulky items such as engines, cylinders, tracks and hydraulic motors are click-and-collect from Derwent Park at checkout; ask us for a freight quote if you cannot collect.
Free pickup from Derwent Park. We hold stock locally rather than drop-shipping from overseas, so most parts leave the same week.
How do I know this part fits my machine?
Every listing states the machine or engine it suits. If you are unsure, send us a photo of the part or your machine's serial plate and we will confirm the match before you order.
Which engine does my machine run?
The KOOP KD192F and Laidong KM385 are the engines fitted across the AM10, AM12 and AM16 machines. A photo of the serial plate is the quickest way to confirm which one you have.
Are wear parts covered by warranty?
Wear parts such as teeth, pins, bushings and cutting edges are excluded from warranty by nature, so we keep them stocked and priced to be replaced rather than nursed.
Do you stock this locally?
We hold stock in Derwent Park, Tasmania, rather than drop-shipping from overseas, so most parts leave the same week.
