Fitment and part numbers
Track Support Wheel - AM16. Stocked locally in Derwent Park, Tasmania.
Not sure it is the right part? Send us a photo of the part or your machine's serial plate and we will confirm the match before you order. Ask about fitment
Part details
| Our SKU | AM-PRT-AM16-TSW |
|---|---|
| System | Undercarriage & Tracks |

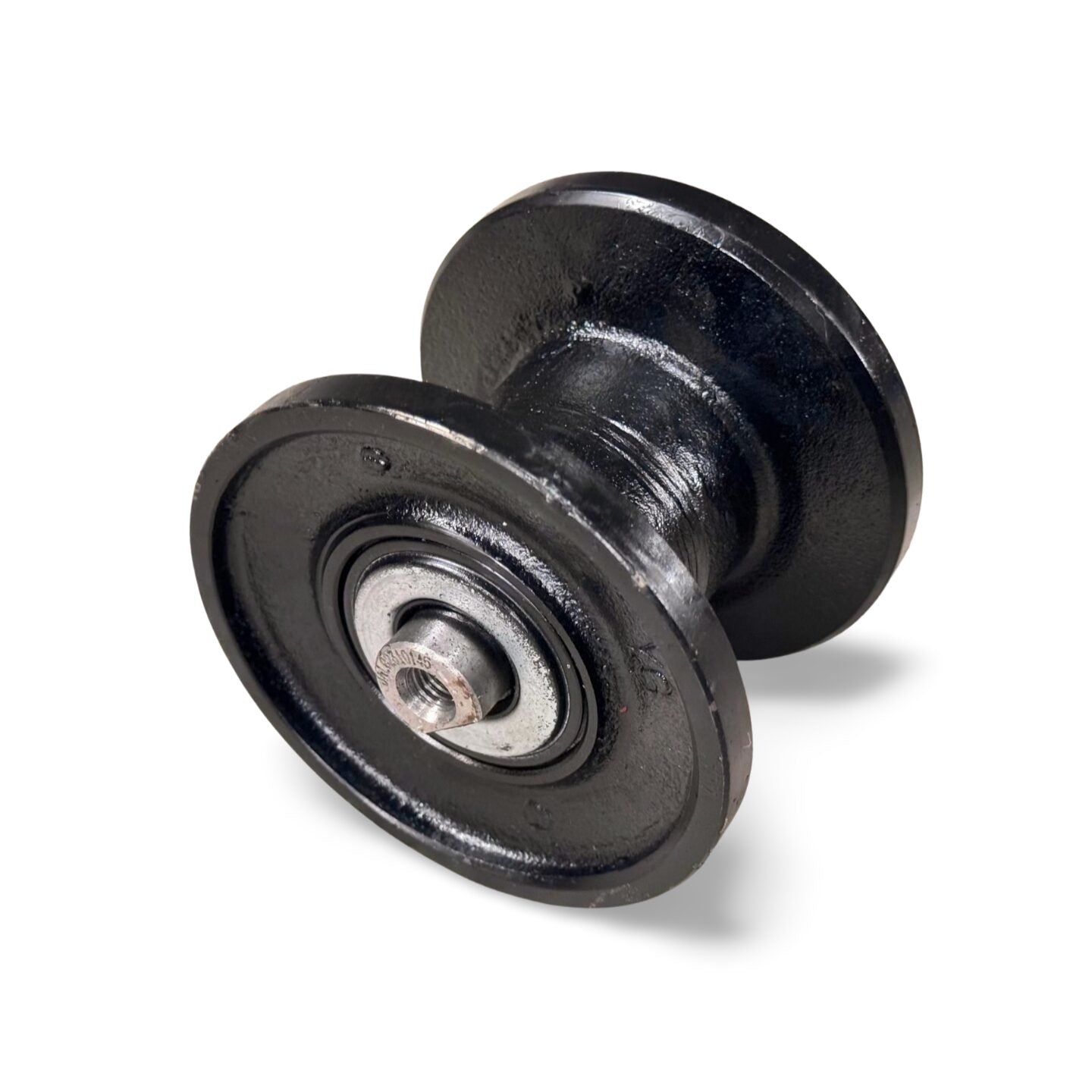

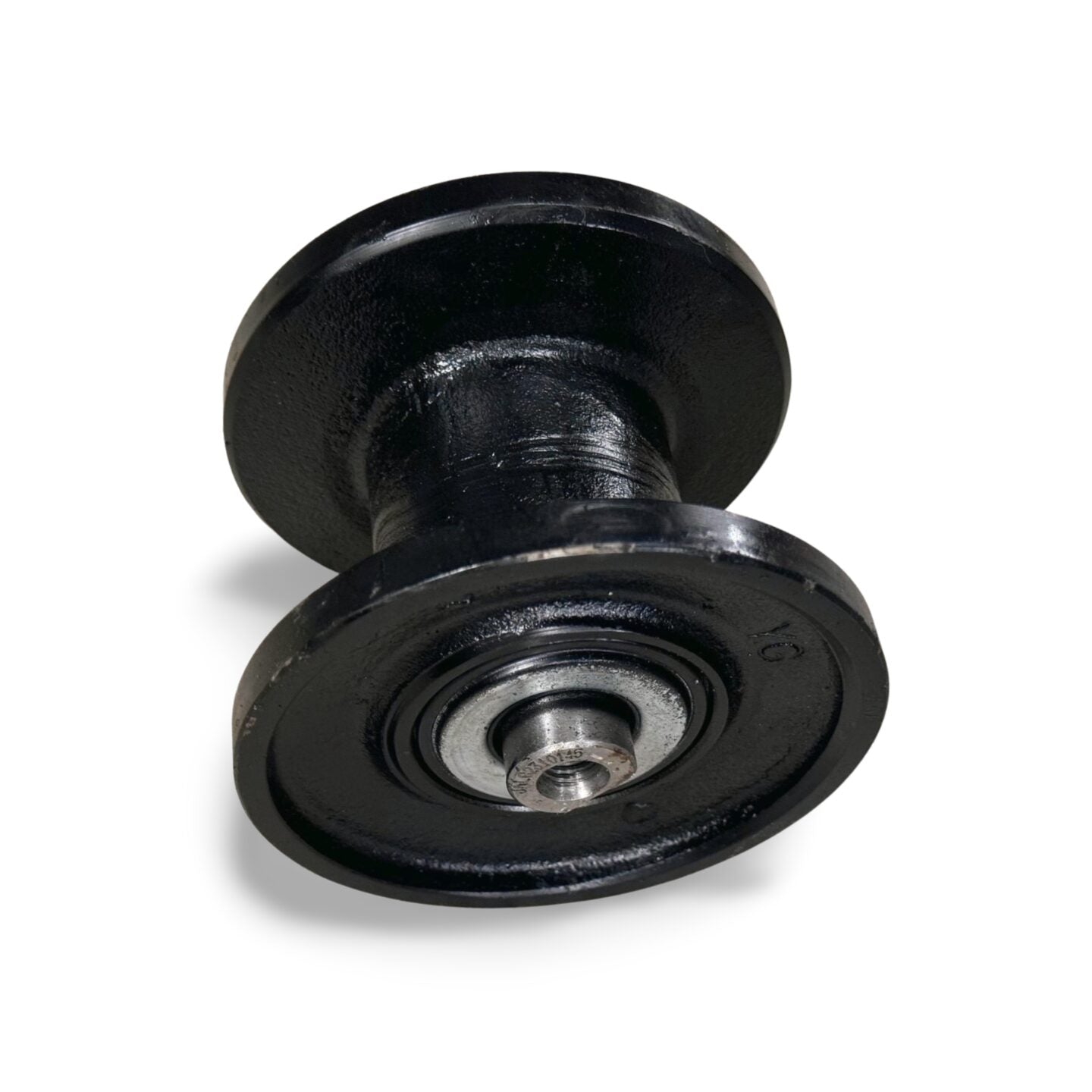

Genuine replacement track support wheel (top roller) for the AM16 1.6T mini excavator undercarriage. Supports and guides the upper track run, reducing friction and wear on the boom structure.
Specifications
- Type: External-mount support wheel (sealed roller)
- Wheel Diameter: 90mm
- Bore Diameter: 20mm (sealed axle)
- Material: Ductile iron hub, sealed bearing
- Bearing Type: Double-row deep-groove ball bearings (sealed, grease-lubricated)
- Width: 72mm (matches track pitch)
- Weight: Approx. 2.5 kg
Compatibility
Fits: AM16 1.6T mini excavator
Track Size: 230 × 72 × 44 rubber tracks
Mount Type: Bolt-on bracket (two M10 fixing bolts)
Wear Indicators
- Flat spots or visible wear on wheel surface
- Grinding or squealing noise during track movement
- Difficulty rotating wheel by hand (bearing seizure)
- Track rubbing or tilting during operation
Installation Notes
- Remove old wheel by unbolting M10 bracket fasteners
- Inspect bracket for cracks or bending (replace if damaged)
- Ensure wheel spins freely before installation
- Tighten mounting bolts to 40–50 Nm (hand-tight + half turn)
- Check wheel alignment with track centerline
- Test track movement through full range; listen for smooth rotation
Maintenance
- Sealed bearings — no grease point required
- Inspect for wear at 500-hour service intervals
- Typically replaced when tracks are renewed (paired replacement recommended)
- Check bracket bolts weekly during heavy-use seasons
