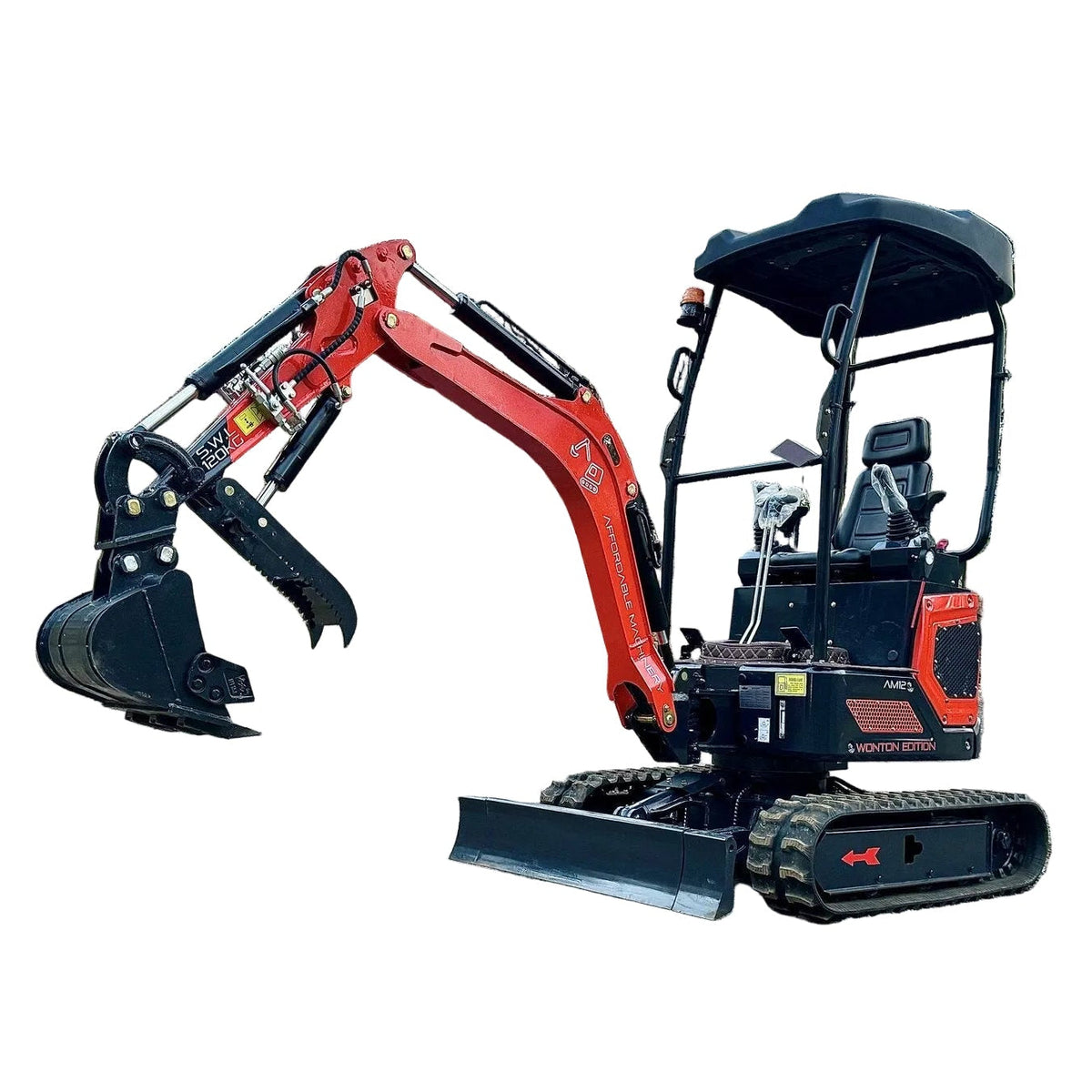

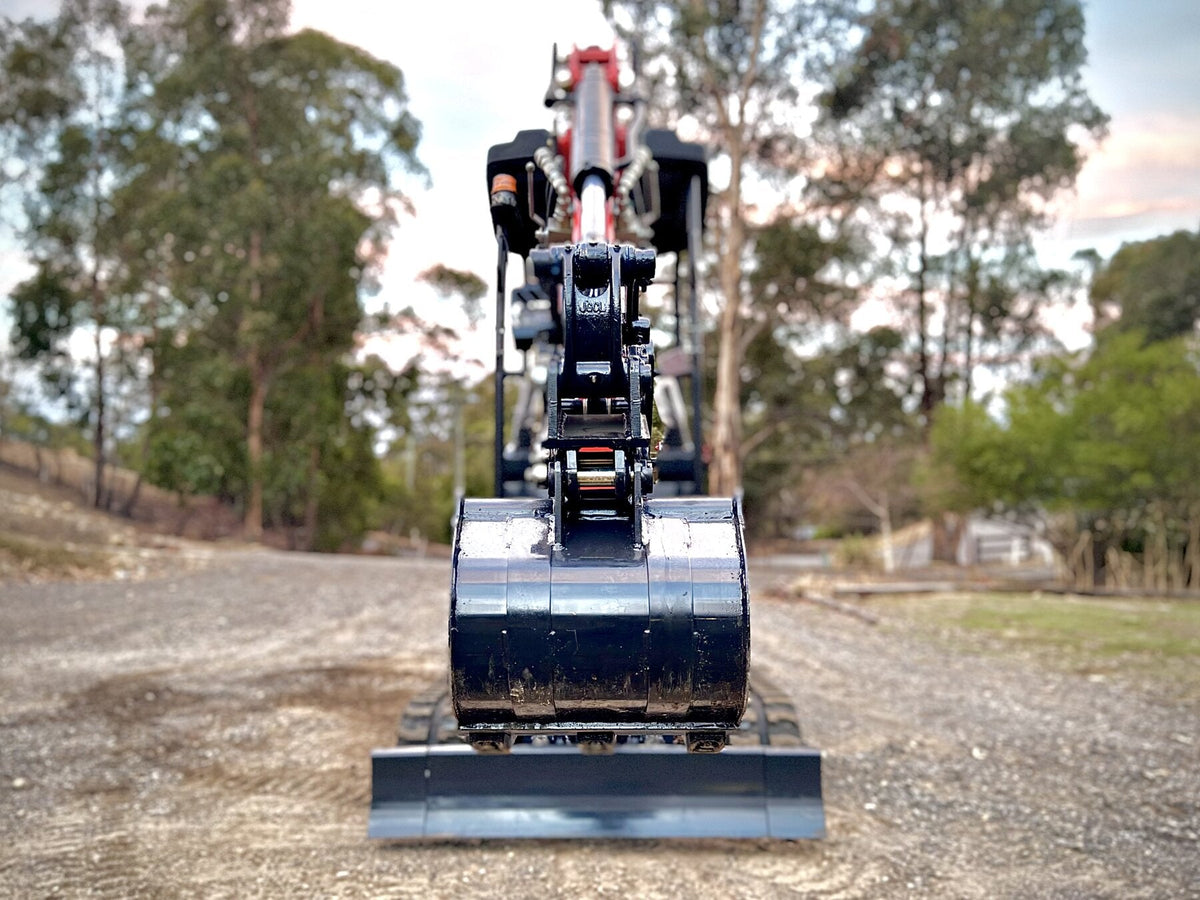

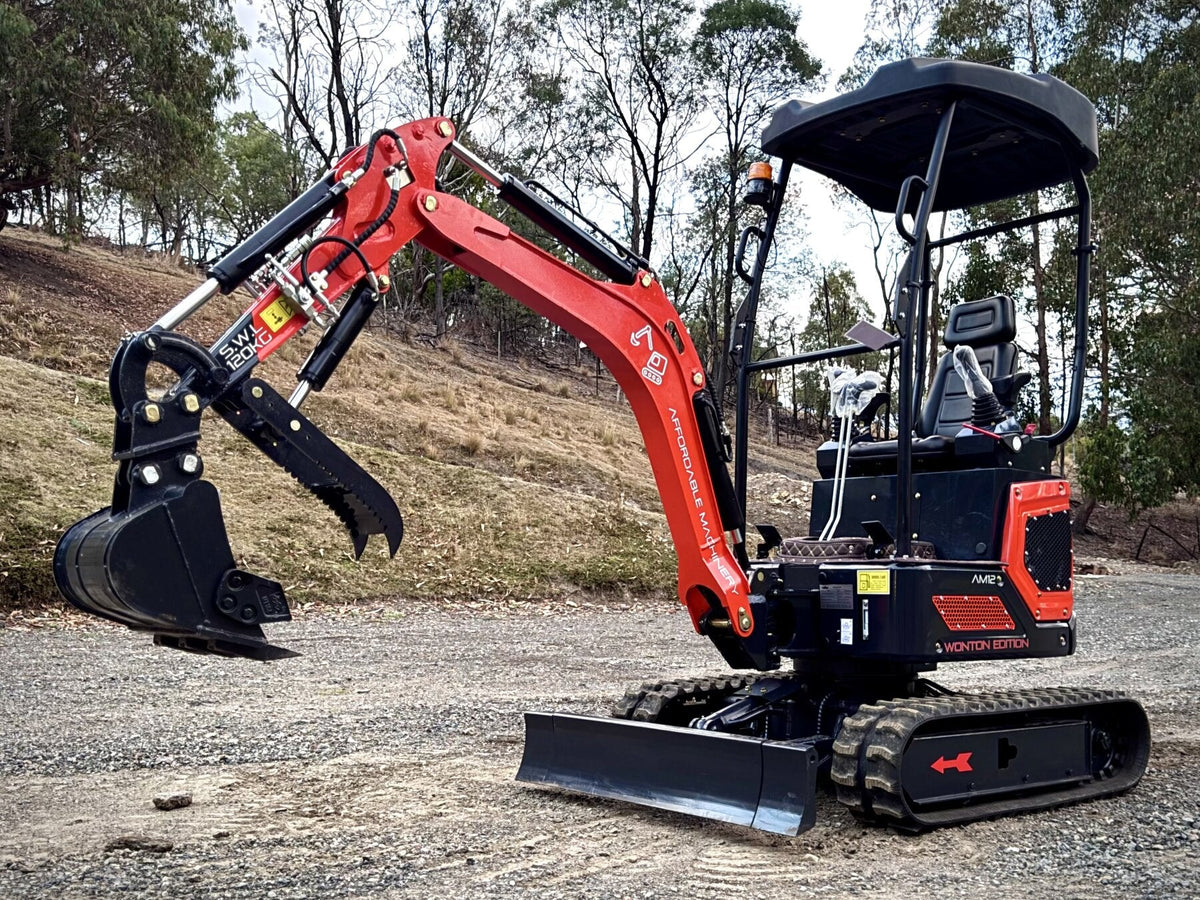

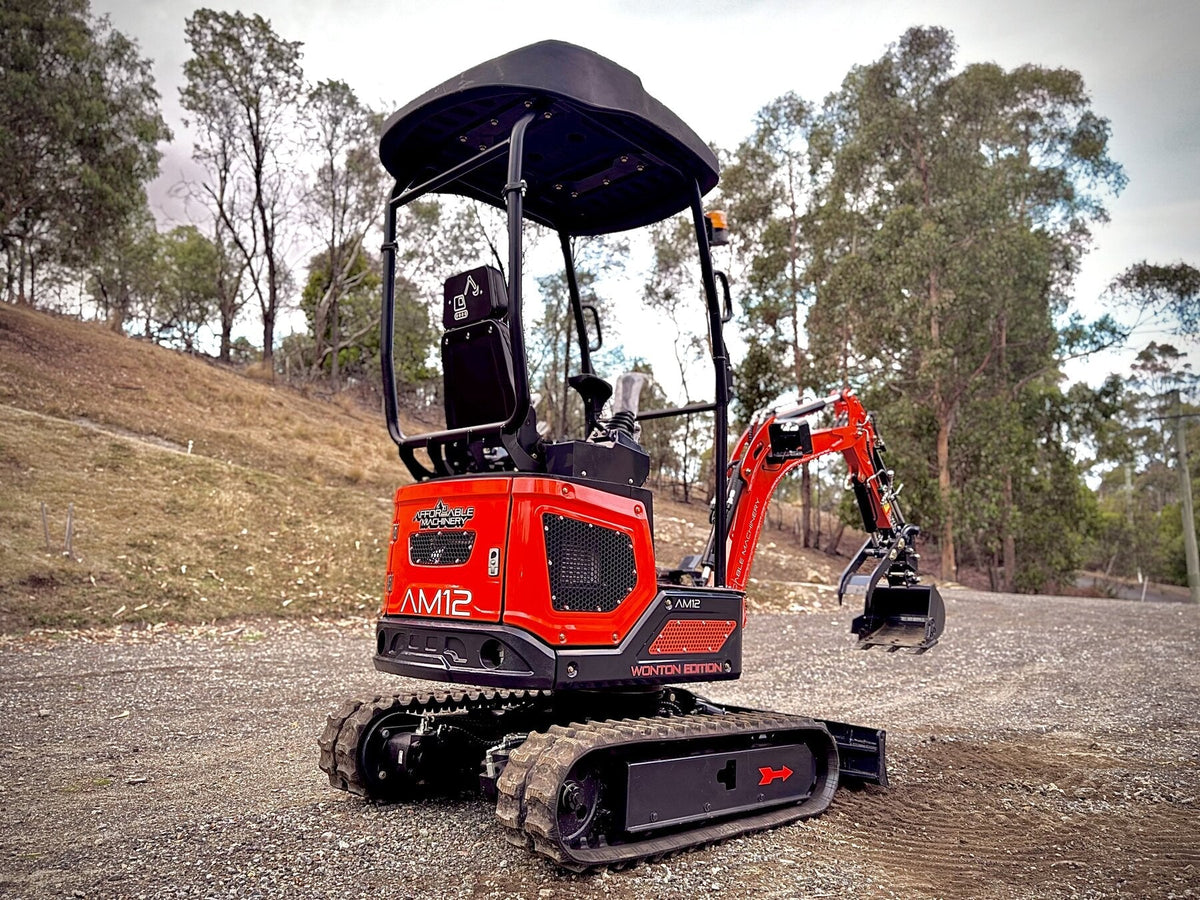

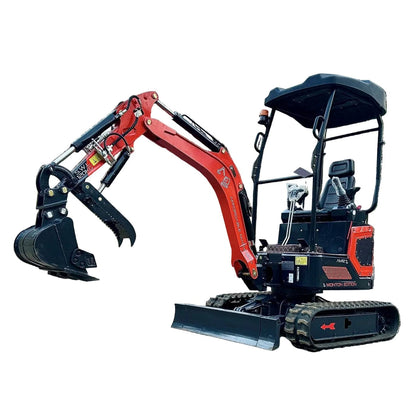

AM12 - 1.2T Mini Excavator Package

AM12 – 1.2T Mini Excavator Package

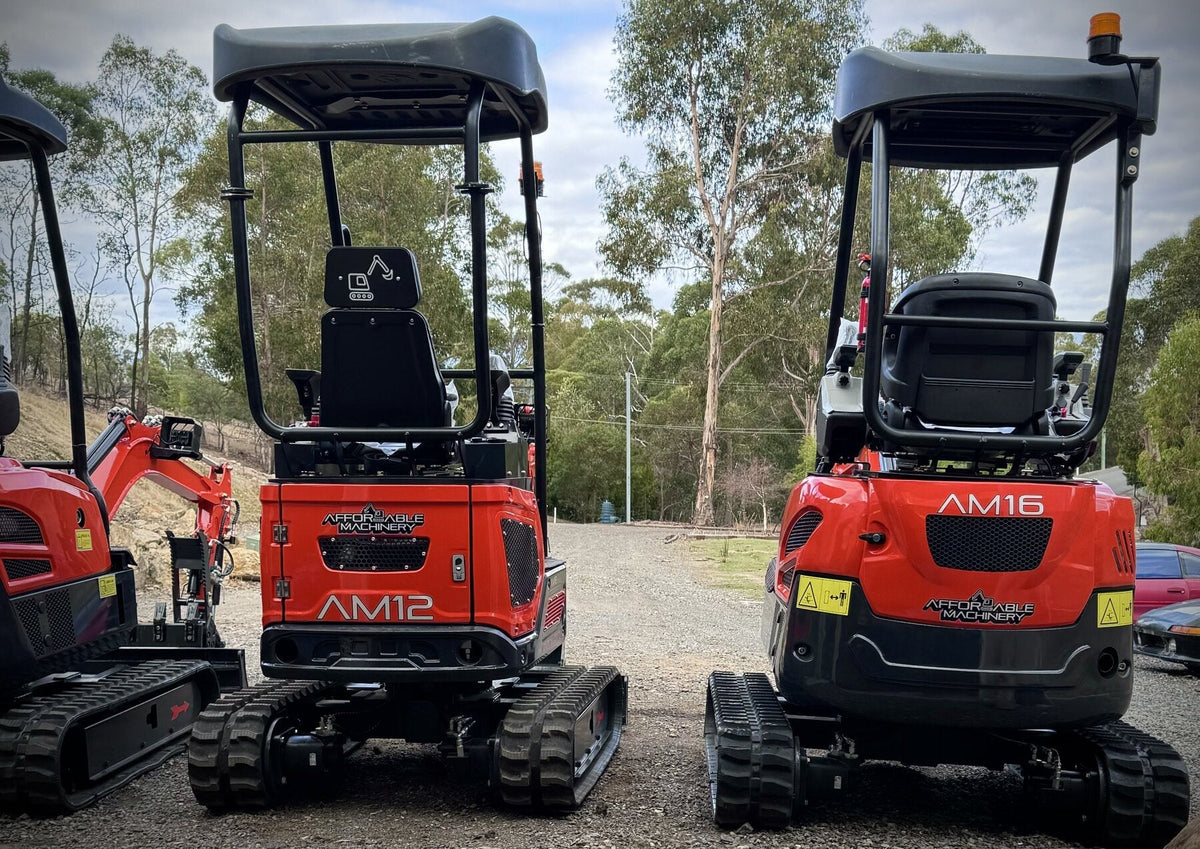

Compact 1.2-tonne mini excavator with full attachment kit. The AM12 bridges the gap between light 1.0T and heavy 1.6T machines — perfect for utility work, landscaping, and small demolition projects.

Package Contents (25mm Pin Class)

• 1× AM12 1.2T Mini Excavator (base machine)
• 1× Ripper attachment

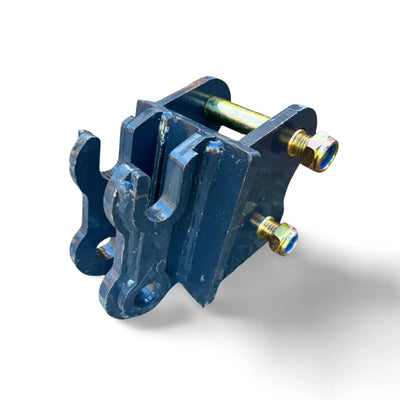

• 1× Half-Hitch Quick Hitch

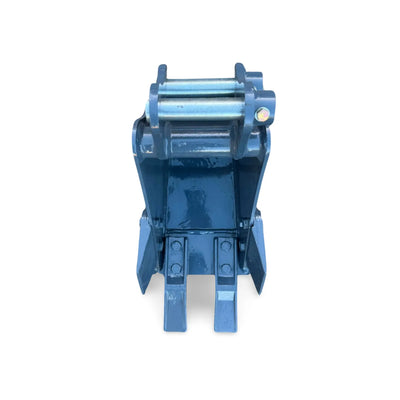

• 1× 200mm Trenching Bucket

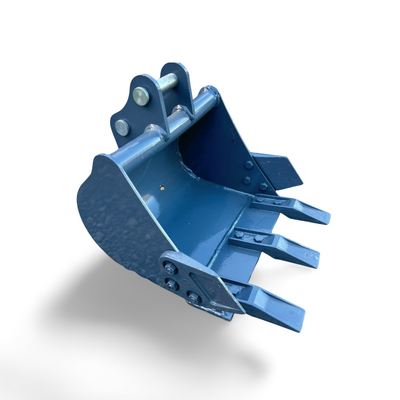

• 1× 400mm GP Digging Bucket

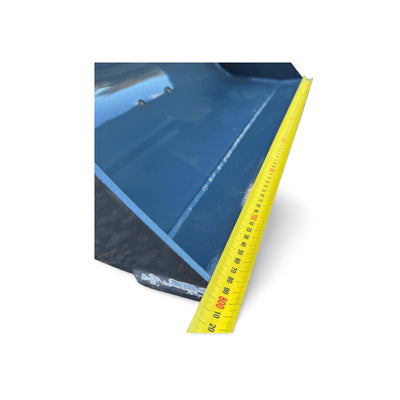

• 1× 800mm Mud Bucket

Machine Specifications

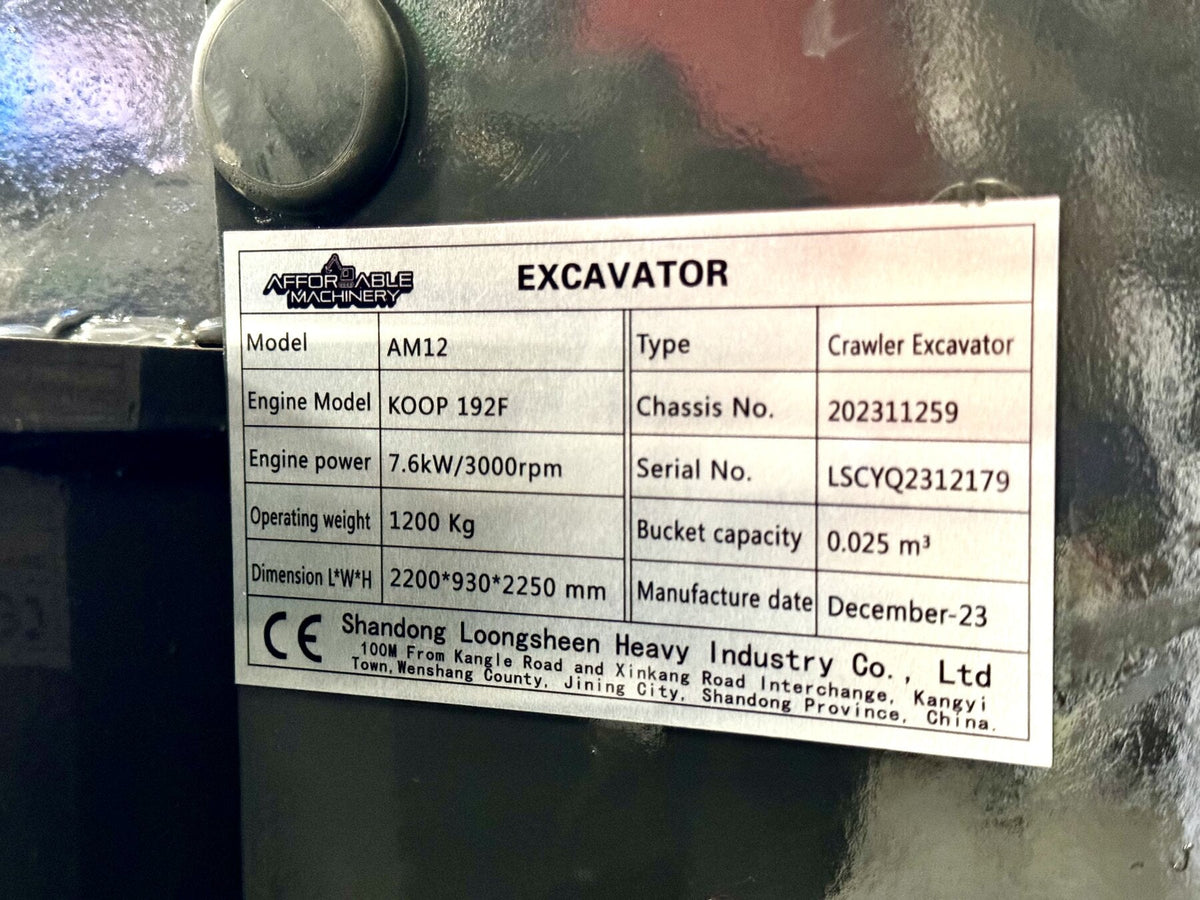

• Weight (Operating): 1,200 kg (with ROPS canopy)

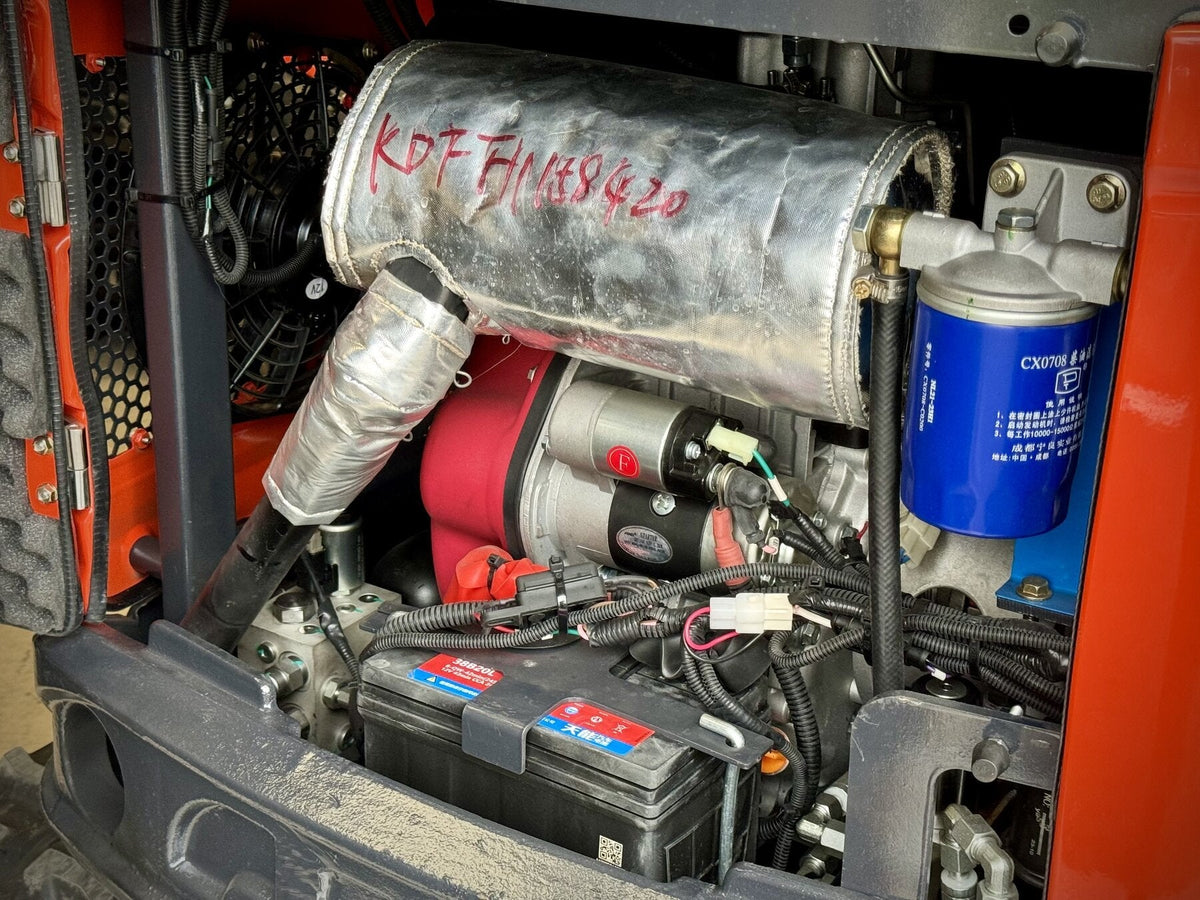

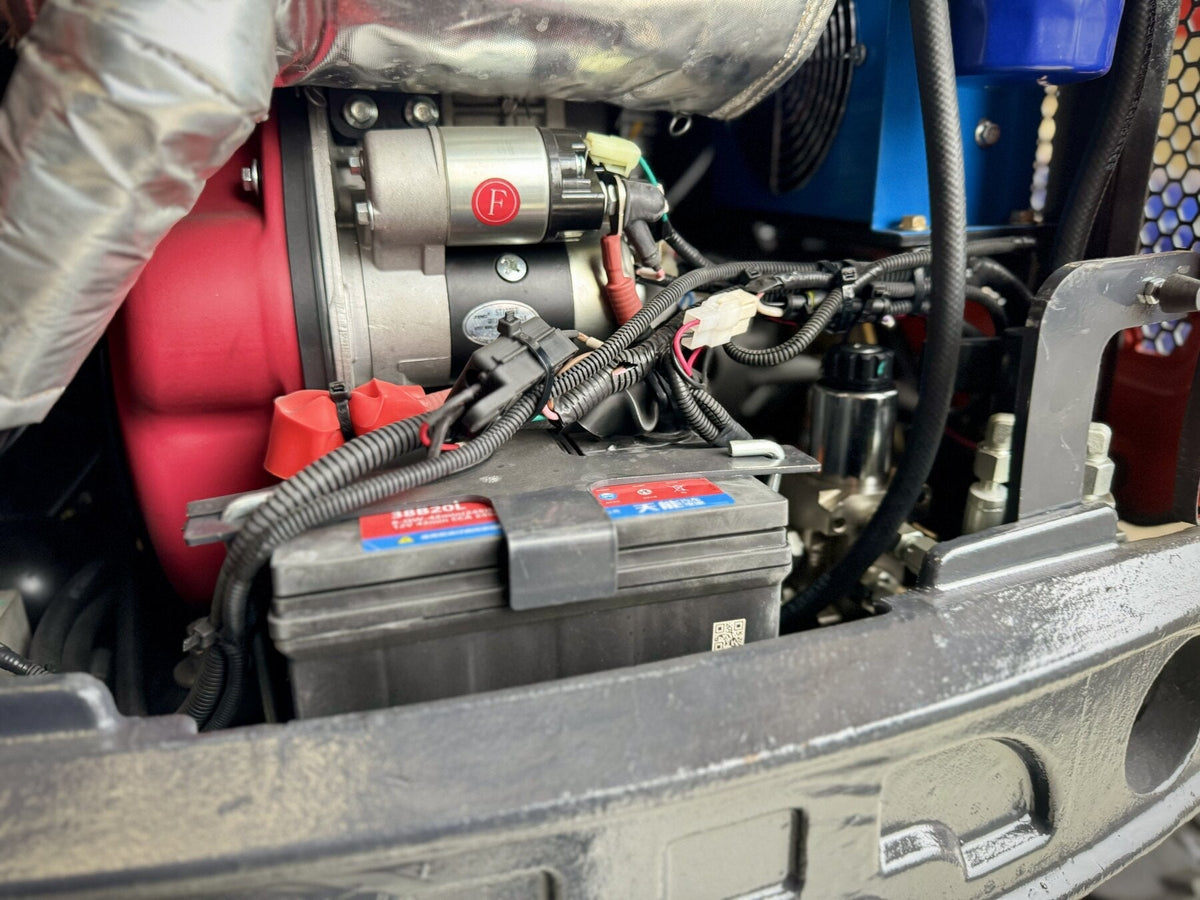

• Engine: KOOP KD192FE single-cylinder, air-cooled diesel
• Power: 7.5 kW (10 hp) @ 3000 rpm
• Digging Depth: Max. 1,800mm
• Dumping Height: Max. 2,100mm
• Hydraulic Pressure: 16 MPa (160 bar)
• Hitch Interface: 25mm pin, 90mm centres, 90mm ear gap (ISO standard)
• Track Size: 180 × 72 × 37 (1.0T/1.2T standard)

Key Features

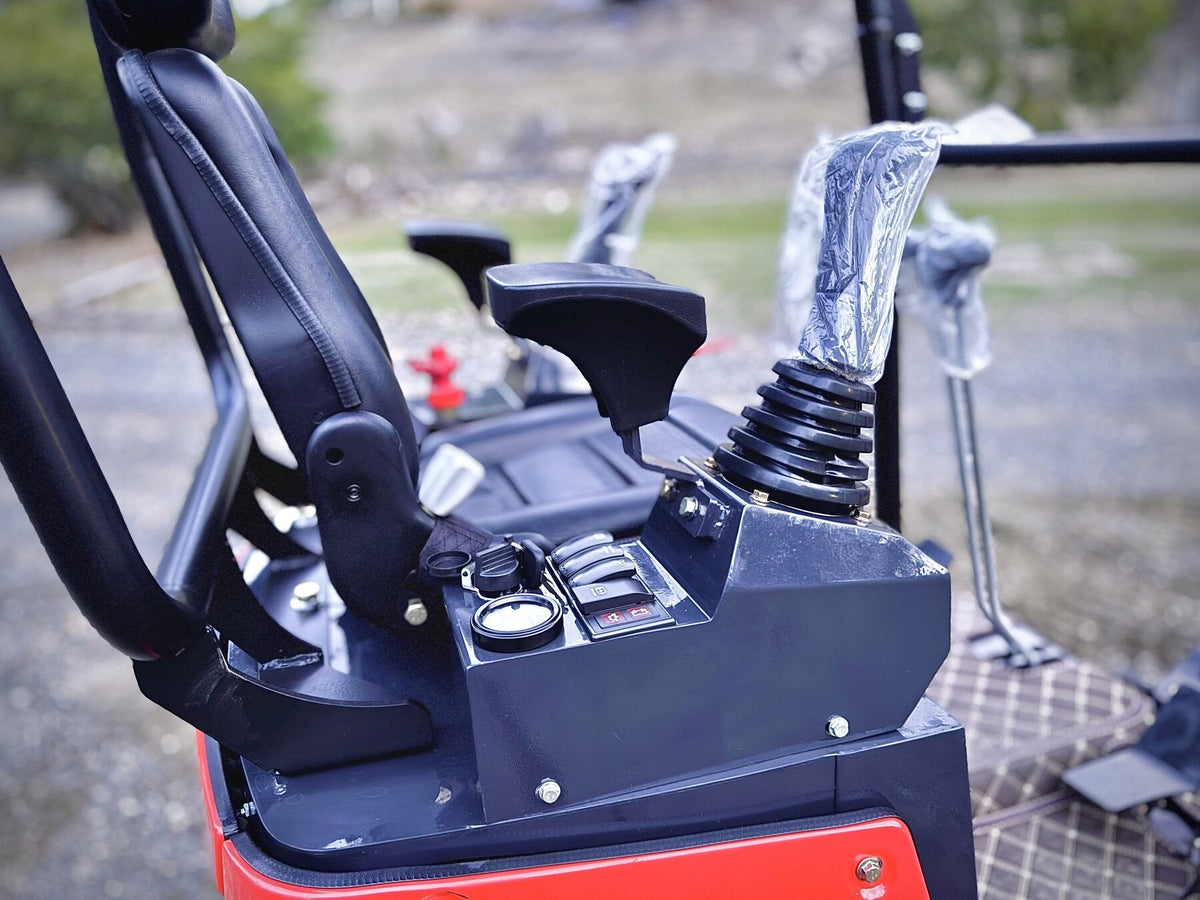

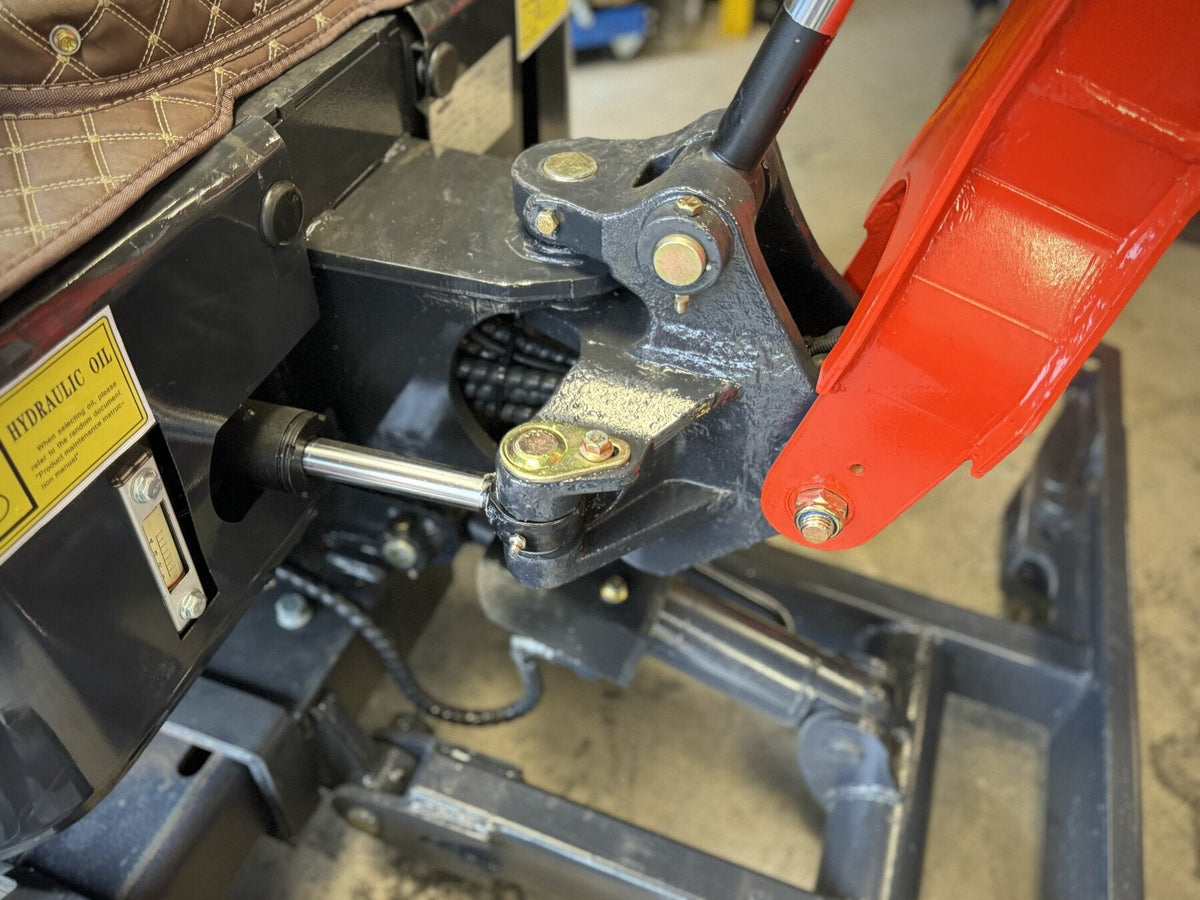

• Swing Boom: 360° continuous rotation with smooth proportional control
• Hydraulic Thumb: Powered bucket curl for improved grading and sorting

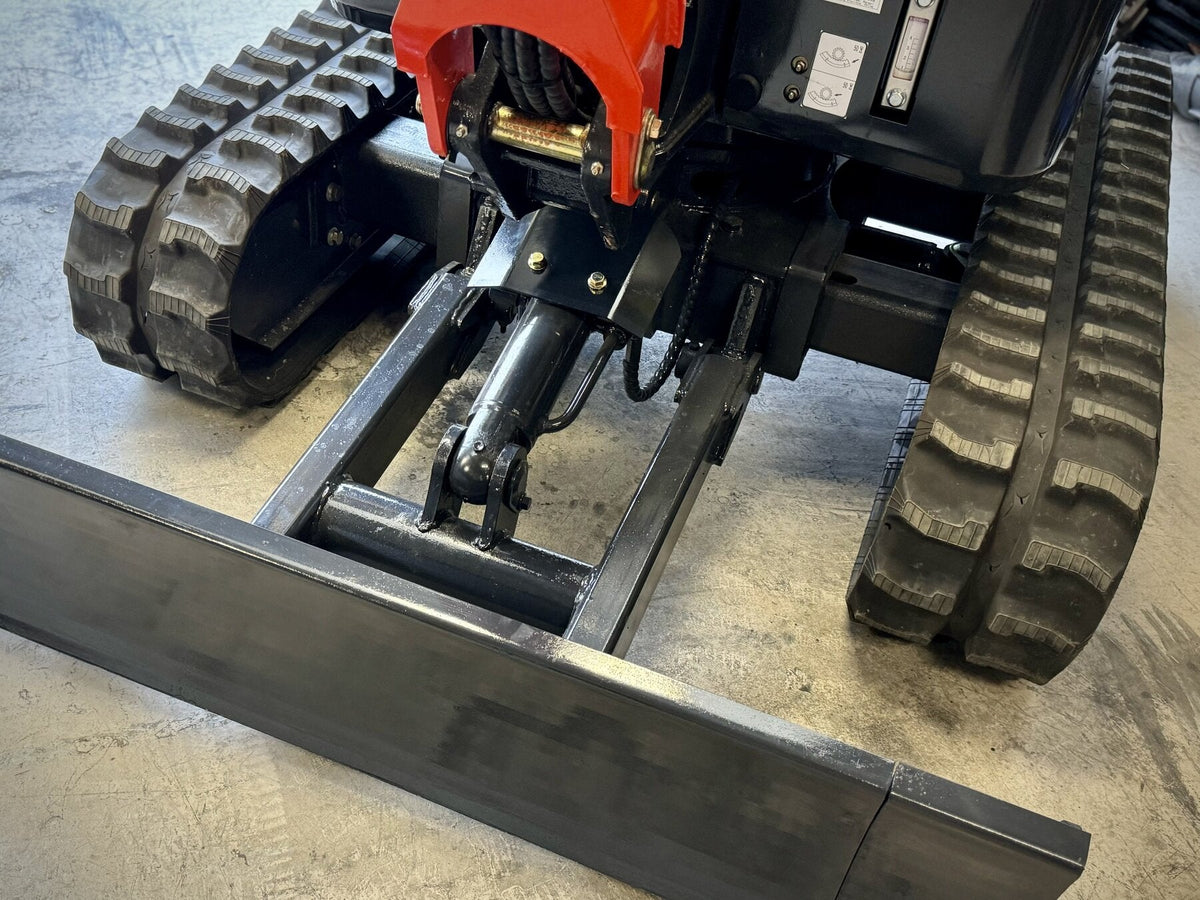

• Expandable Tracks: Hydraulic track expansion for variable ground contact

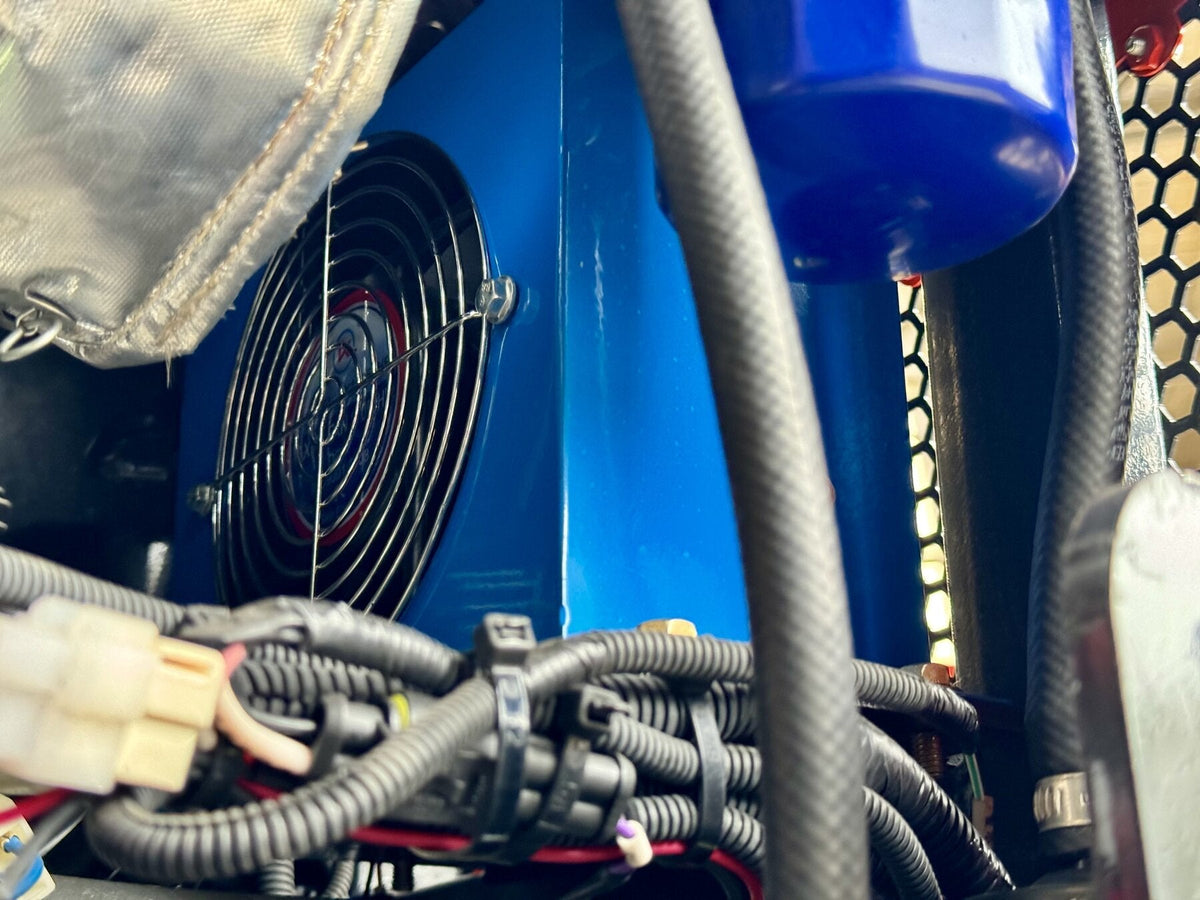

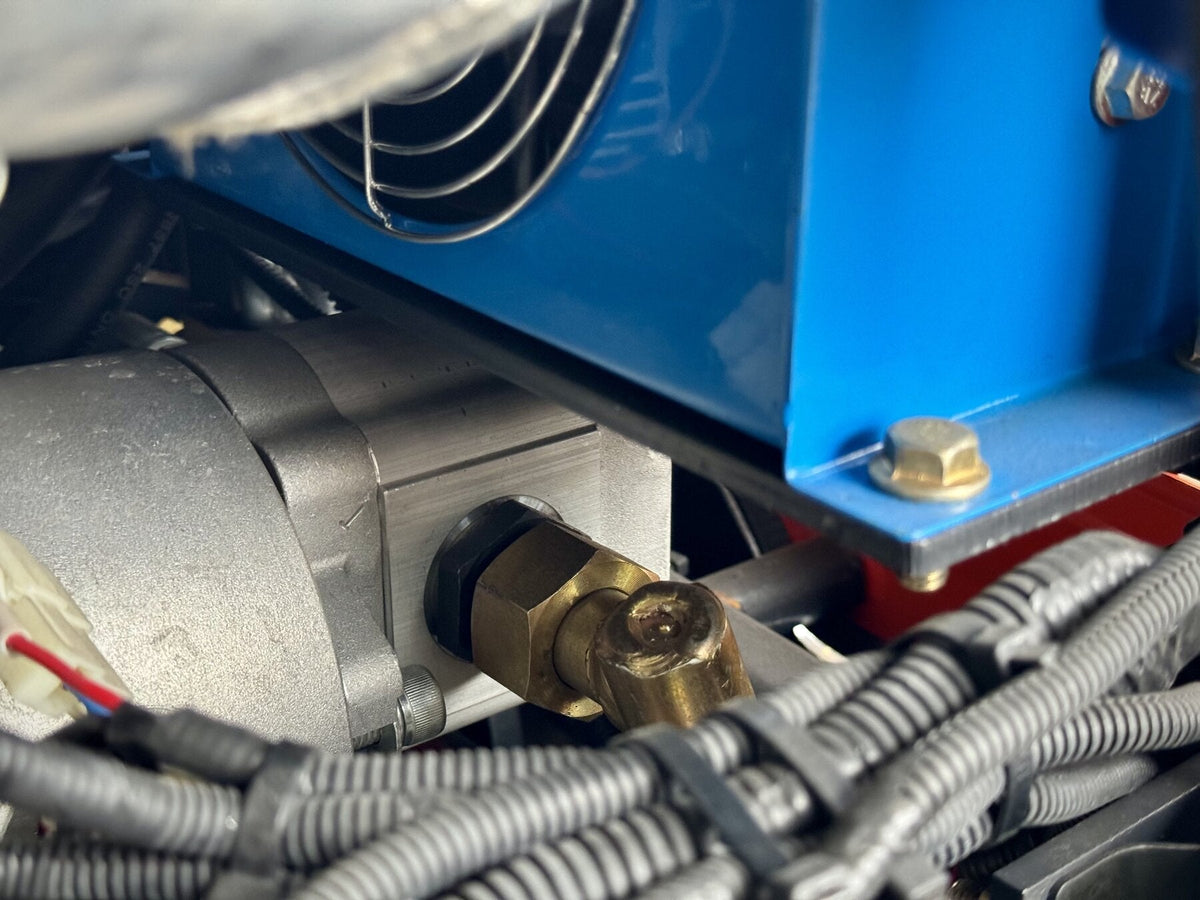

• Oil Cooler + Fan: Temperature regulation for all-day operation

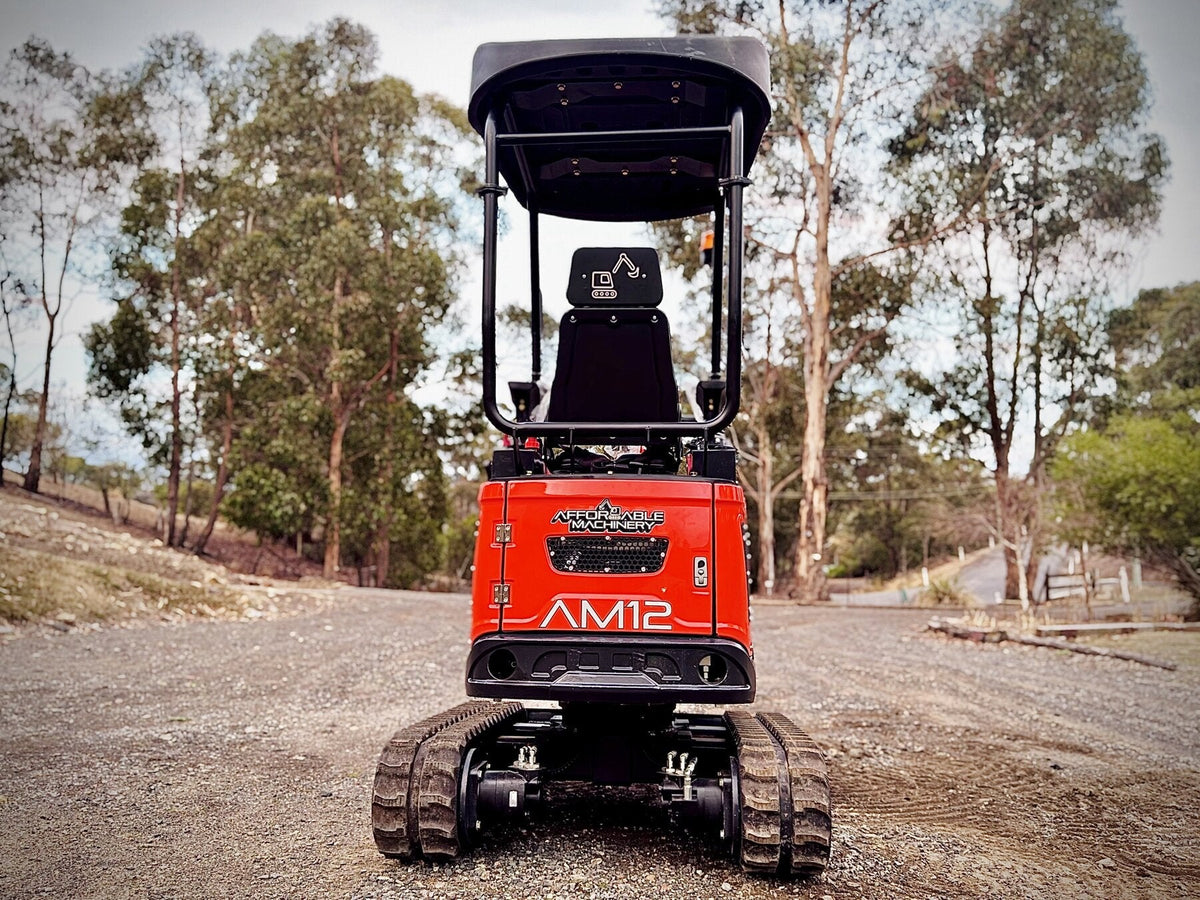

• ROPS Canopy: Overhead protection with UV-resistant polycarbonate

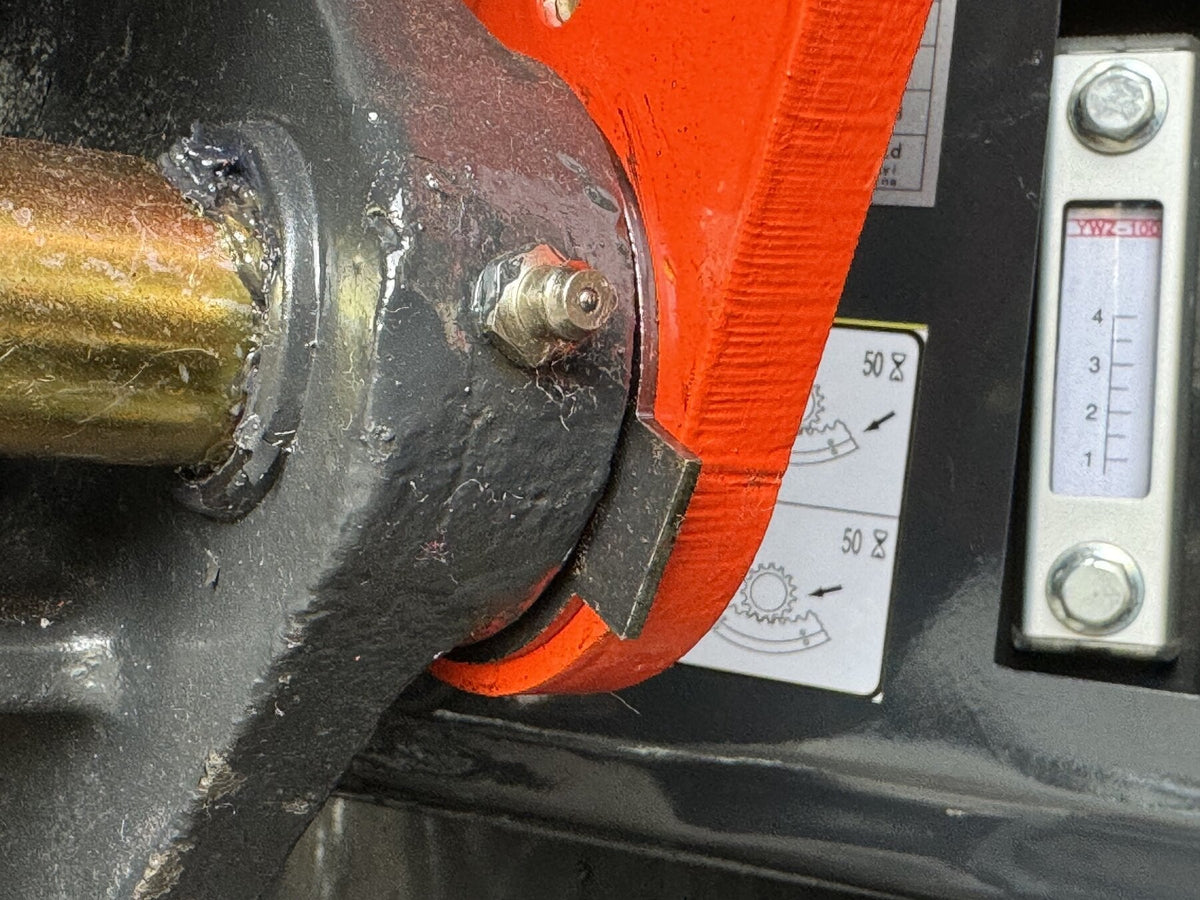

• Grease Track Tensioning: Tool-free track tension adjustment

Warranty & Support

• Warranty: 12 months / 1,000 hours (parts only; see Ts & Cs)
• Service: Available from authorized dealers across Australia
• Support: Contact sales@affordablemachinery.com.au for service or questions

Typical Applications

• Landscaping (grading, terracing)
• Utility work (trenching for water/power/comms)
• Small demolition and site clearance
• Concrete breaking and rubble sorting
• Road maintenance and repair

Maintenance Schedule

• Daily: Visual inspection; check hydraulic fluid level
• Every 50 hours: Top up hydraulic fluid; check track tension
• Every 250 hours: Oil & filter change; air filter replacement
• Every 500 hours: Full service inspection (hydraulic hoses, seals, engine valves)
