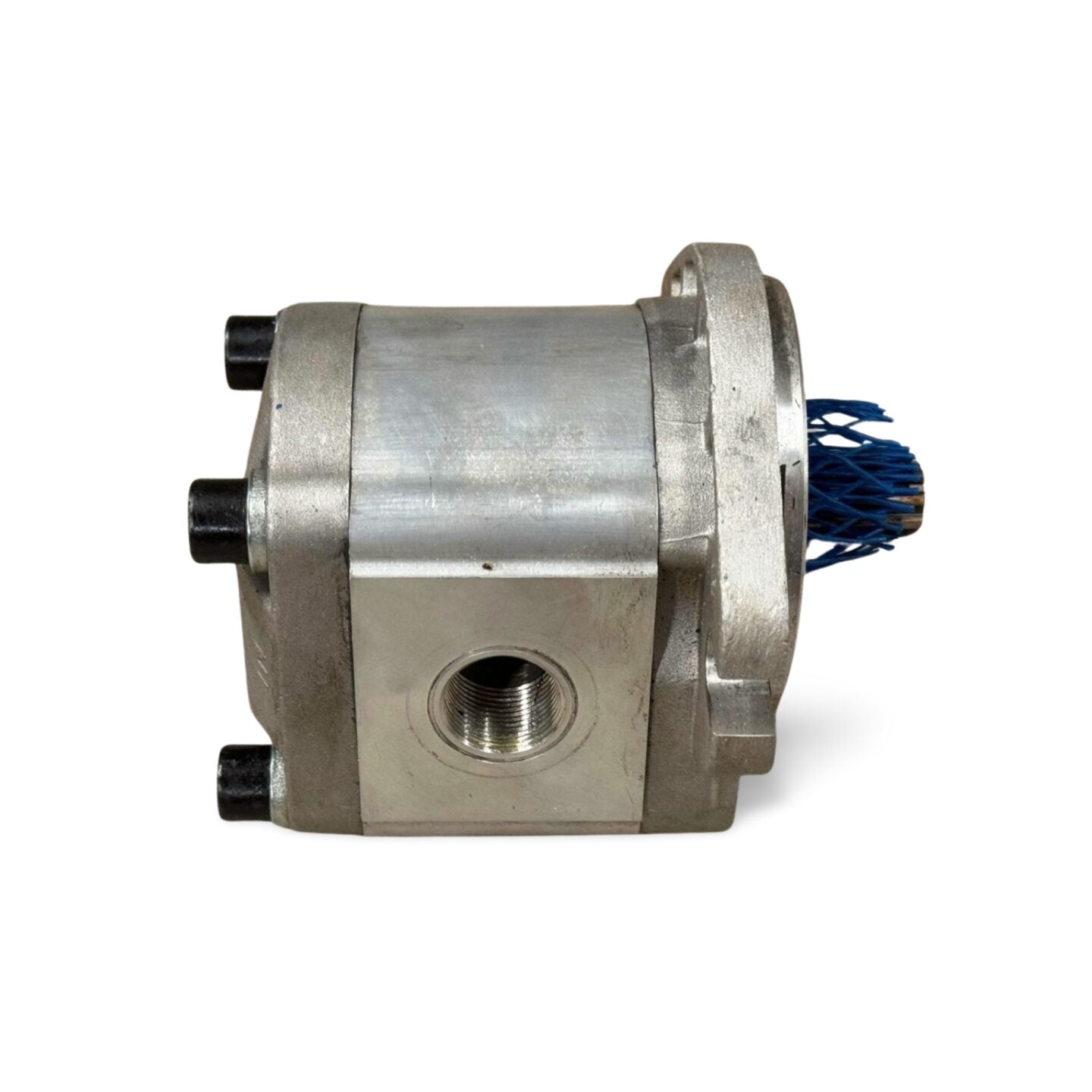

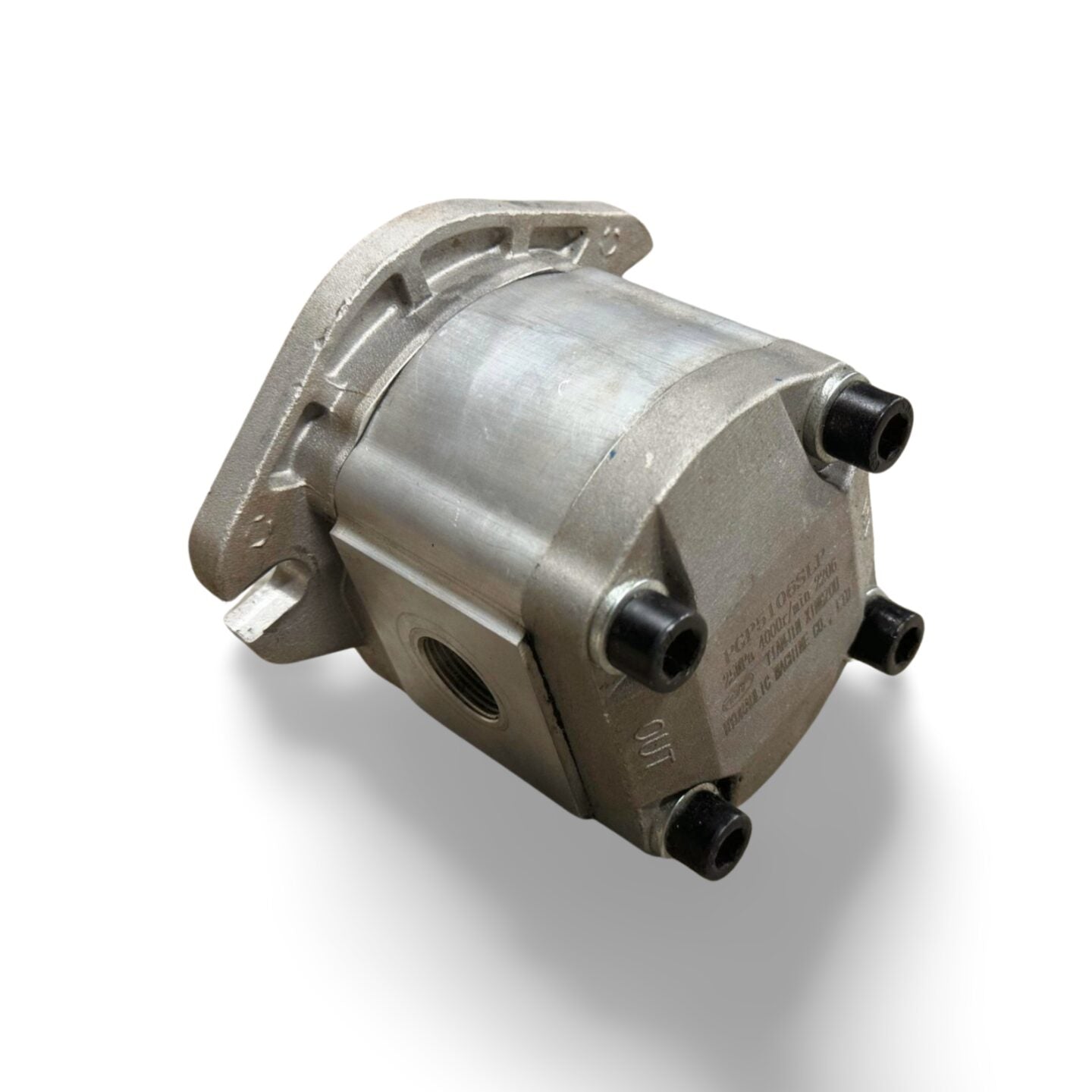

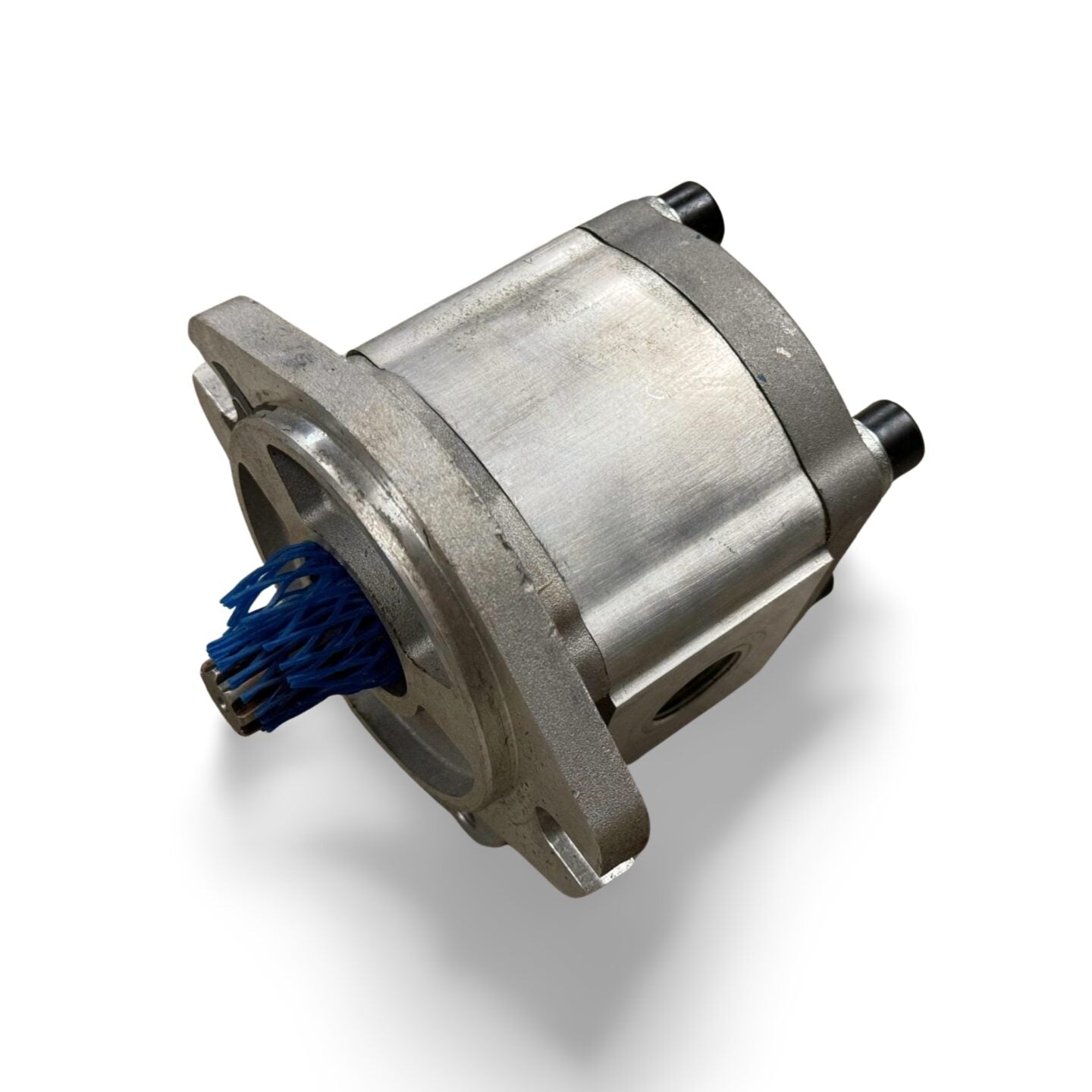

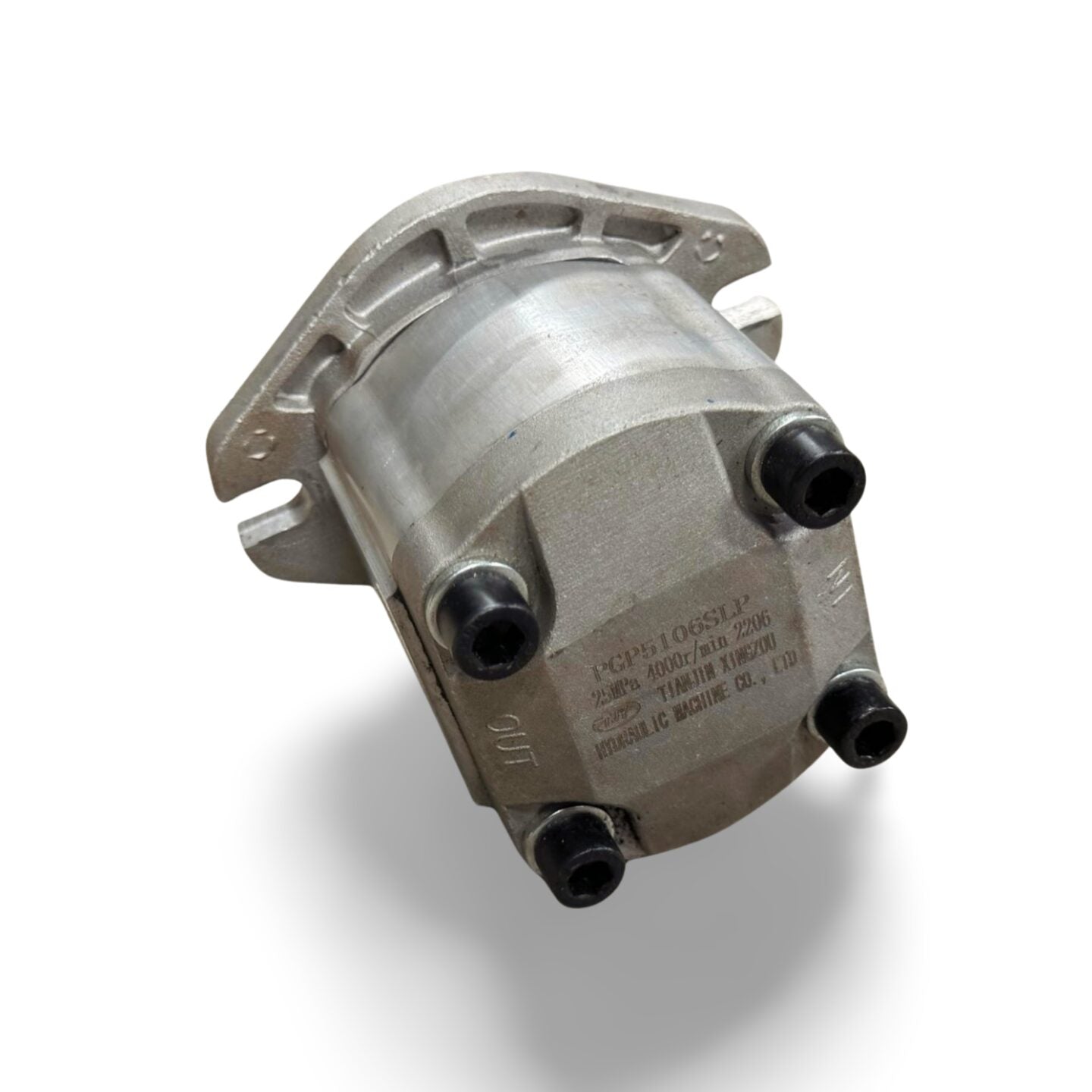

Hydraulic Gear Pump - NM-E10

Hydraulic Gear Pump – NM-E10

Genuine replacement hydraulic gear pump for the NM-E10 mini excavator and other compact excavators with compatible pump specifications. Powers all hydraulic circuits for boom, arm, bucket, and travel functions.

Specifications

• Type: External spur gear pump
• Displacement: 10–12 cc/rev
• Max Operating Pressure: 16 MPa (160 bar)
• Flow Rating: 20–25 L/min at 2000 rpm, rated pressure
• Connection Ports: SAE flange (ISO 4401-05)
• Rotation: Clockwise (SAE standard)
• Shaft Input: Direct engine coupling (SAE flange mount)

Compatibility

Primary Fit: NM-E10 mini excavator

Cross-Compatibility: Other compact excavators (0.8T–1.5T class) using equivalent SAE-flange pumps with 16 MPa system pressure

Verify Before Ordering: Contact sales@affordablemachinery.com.au with machine model for exact fitment confirmation

Function & Performance

• Delivers consistent high-pressure flow for all excavator hydraulic systems
• Proportional control valves use pump output for smooth, responsive machine operation
• Efficient gear design minimizes noise and vibration

Installation Notes

• Drain and flush hydraulic system with clean ISO VG 46 before installation
• Prime new pump with fresh hydraulic fluid
• Verify SAE flange coupling alignment (critical for smooth operation)
• Install new input shaft seal and output port gaskets
• Set system relief valve to 16 MPa
• Bleed air from pump after connection
• Run engine at idle for 2–3 minutes before full operation

Maintenance

• Hydraulic fluid: Change every 500 operating hours
• Fluid filter: Replace every 250 hours
• Pressure test: Every 100 hours (confirm 16 MPa under load)
• Noise monitoring: Listen for grinding (sign of gear wear)
• Seal inspection: Check for slow oil weeping at shaft seal
