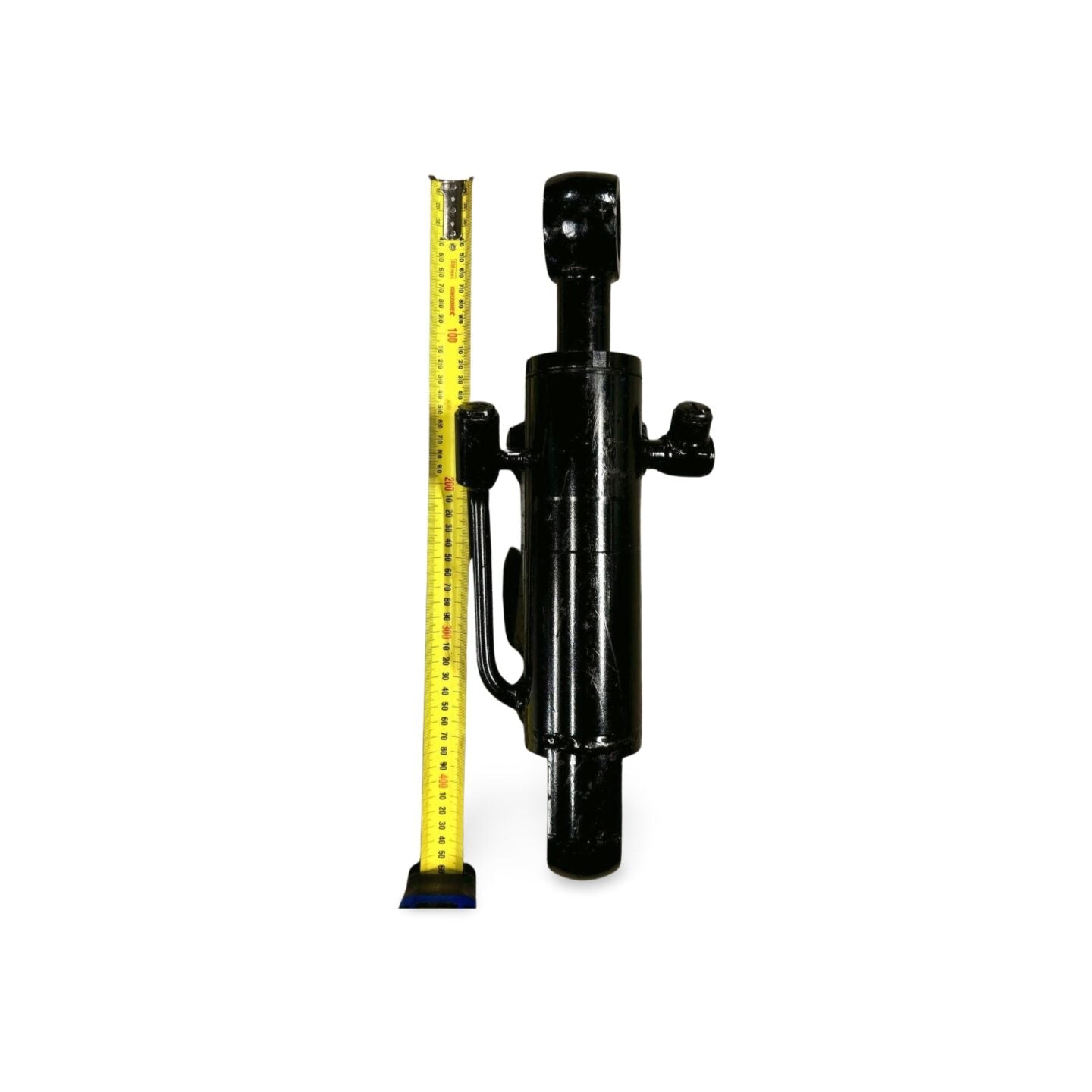

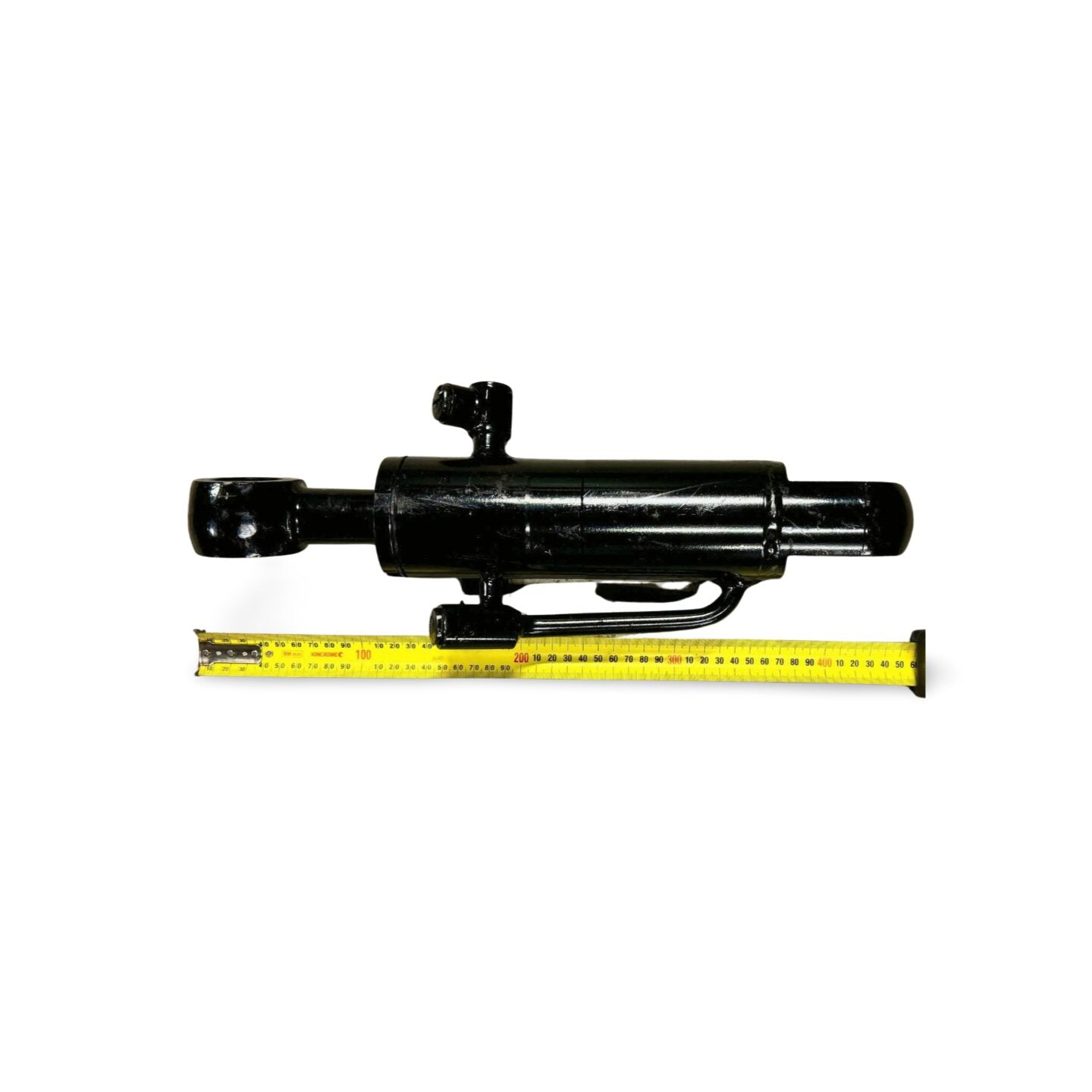

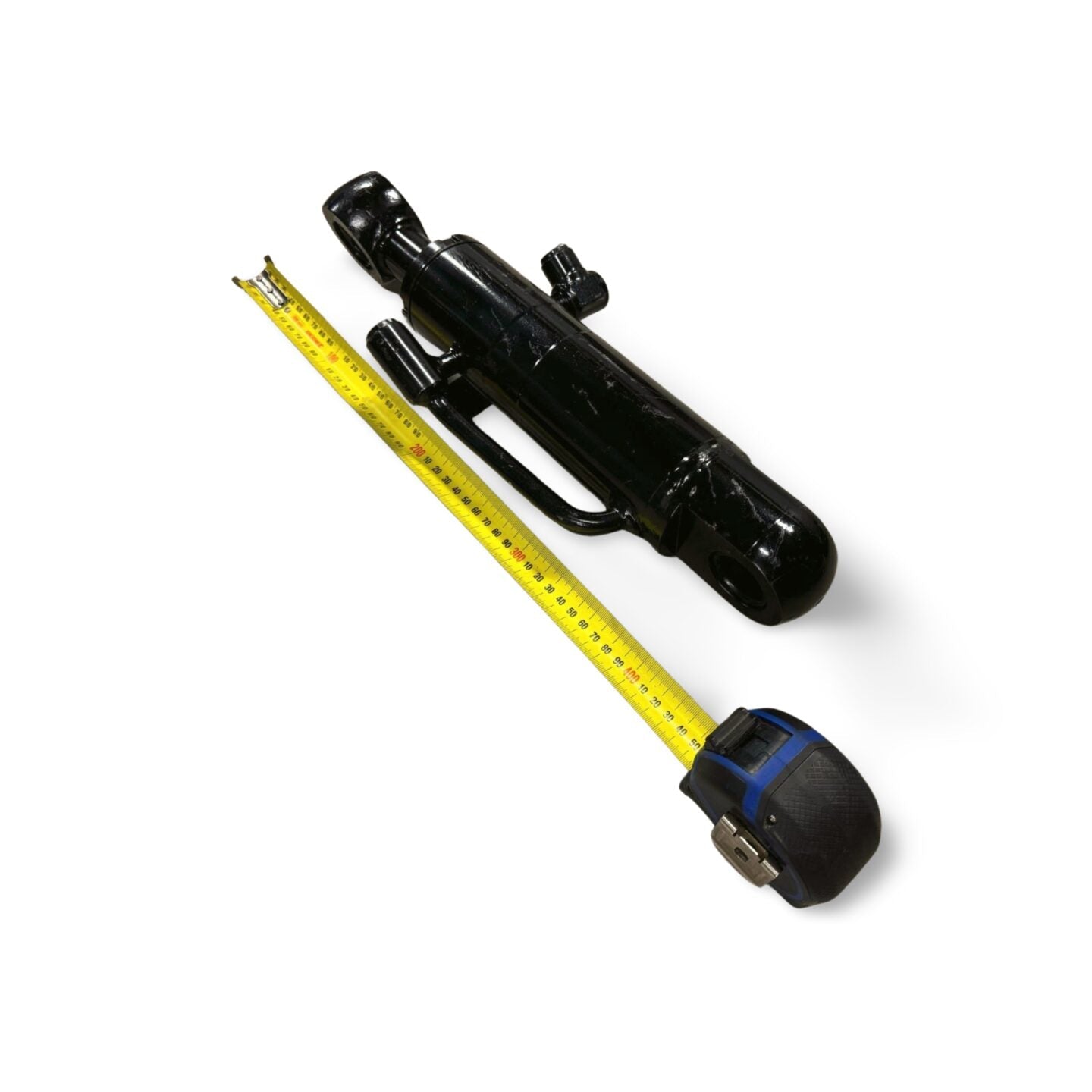

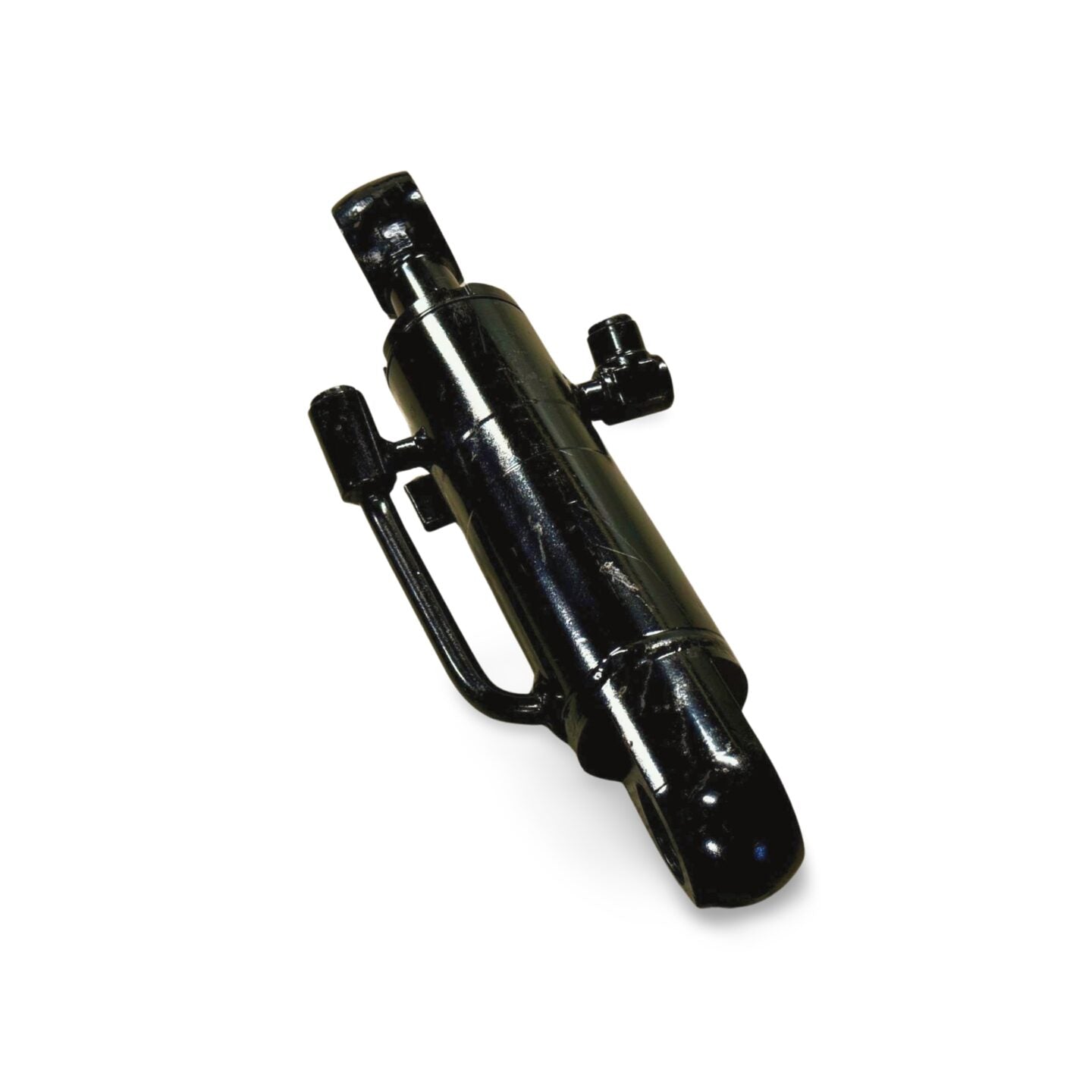

Dozer Hydraulic Cylinder – AM16

Genuine replacement hydraulic cylinder for the front dozer blade (leveling blade) on AM16 mini excavators. Controls blade lift/lower and fine grading operations.

Specifications

• Application: Dozer blade tilt/lift cylinder
• Bore Diameter: 50mm
• Rod Diameter: 32mm
• Stroke Length: 300mm
• Max Operating Pressure: 16 MPa (160 bar)
• Flow Rating: 18 L/min at rated pressure
• Connection Ports: SAE flange (ISO 4401)
• Seal Type: PTFE rod seals, nitrile o-rings

Compatibility

Fits: AM16 1.6T mini excavator with Laidong KM385 engine (3-cylinder diesel)

System Pressure: 16 MPa hydraulic system

Note: Not compatible with AM10 or AM12 models.

Features

• Supports full-width blade (typically 1,200–1,500mm)
• Proportional flow control for precise blade positioning
• Rated for continuous grading duty cycles

Installation Notes

• System pressure check before installation (should be 16 MPa)
• Flush new cylinder with clean hydraulic fluid before connecting
• Inspect hose fittings and seals — replace if worn or damaged
• Bleed air from cylinder after installation
• Test blade lift/lower through full stroke under light load
