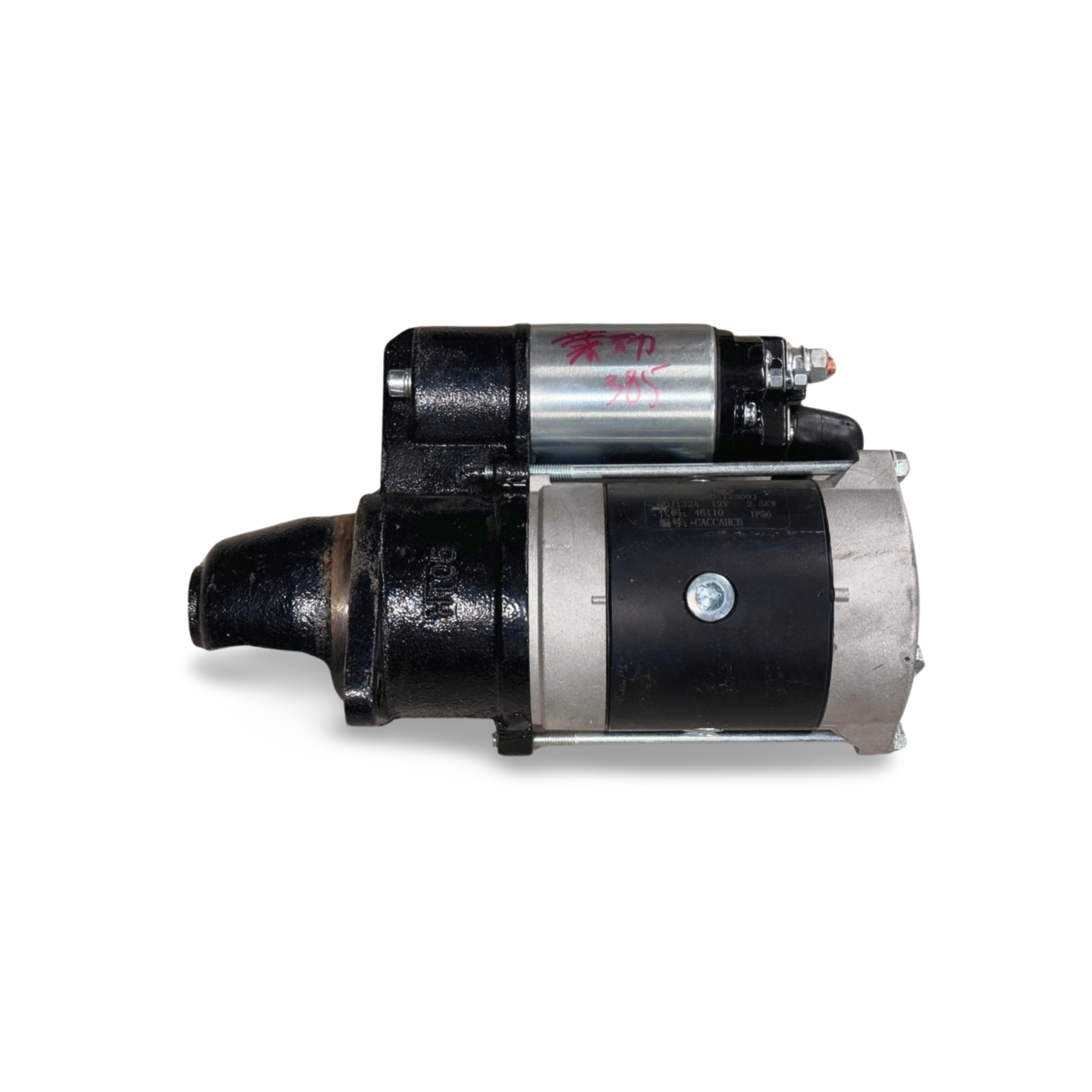

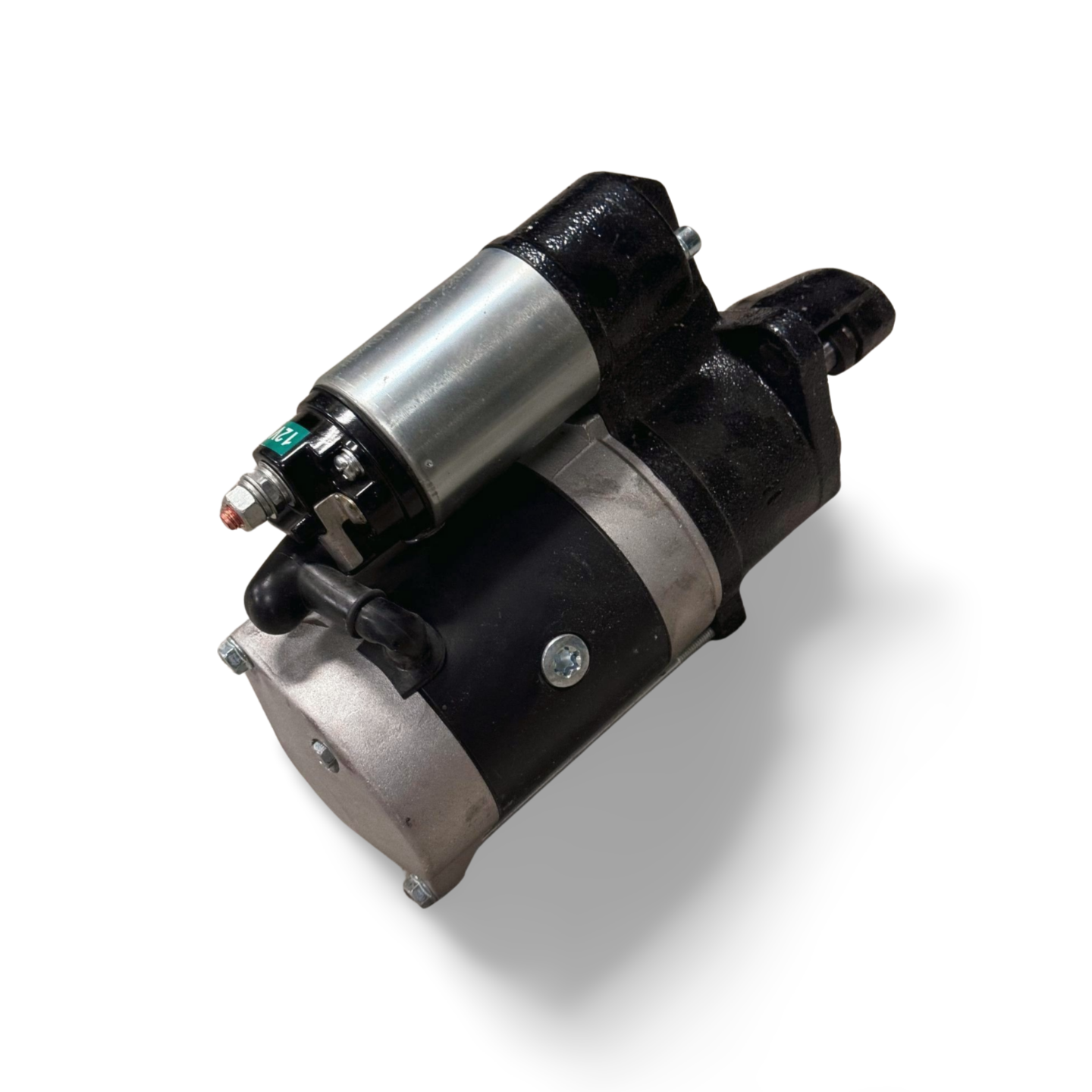

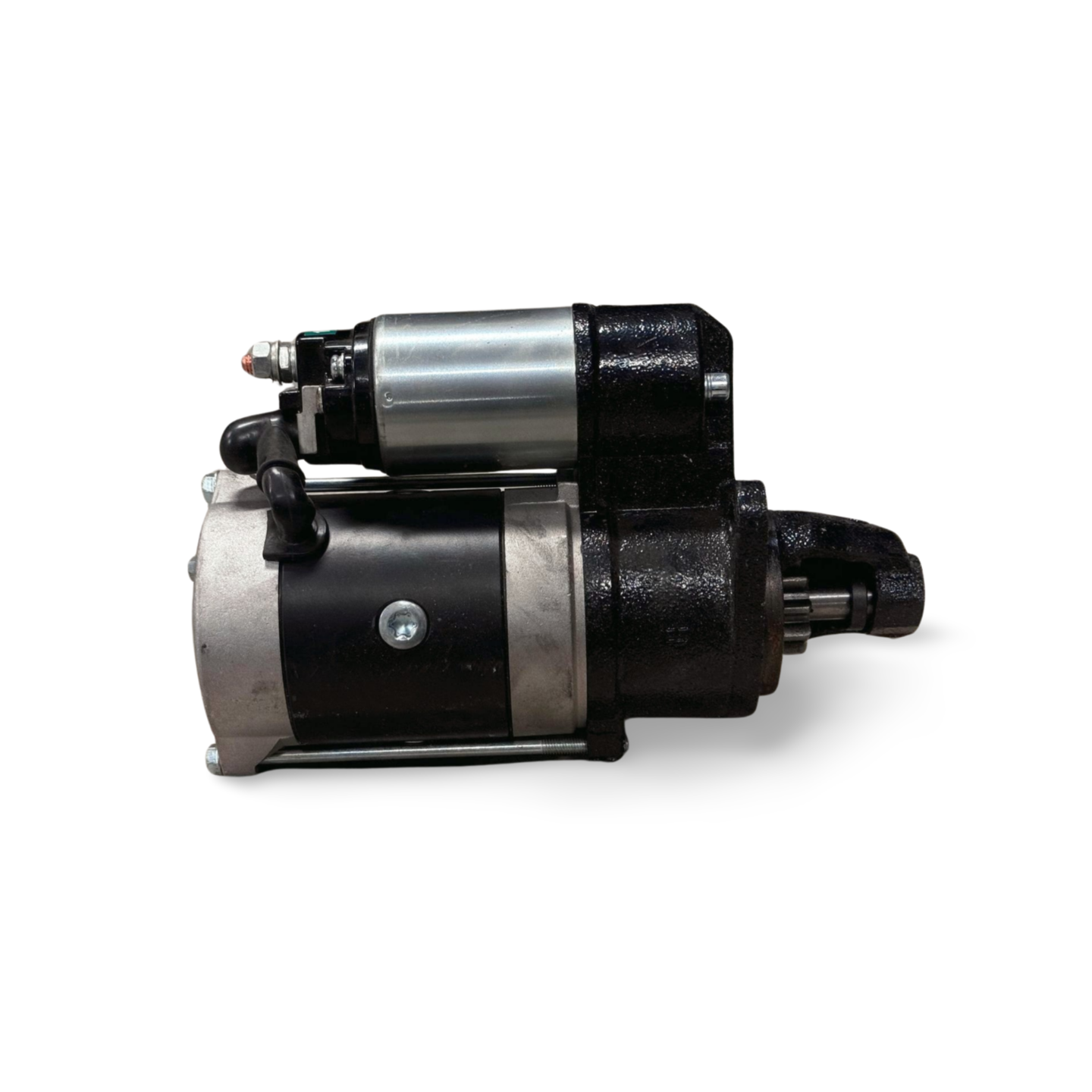

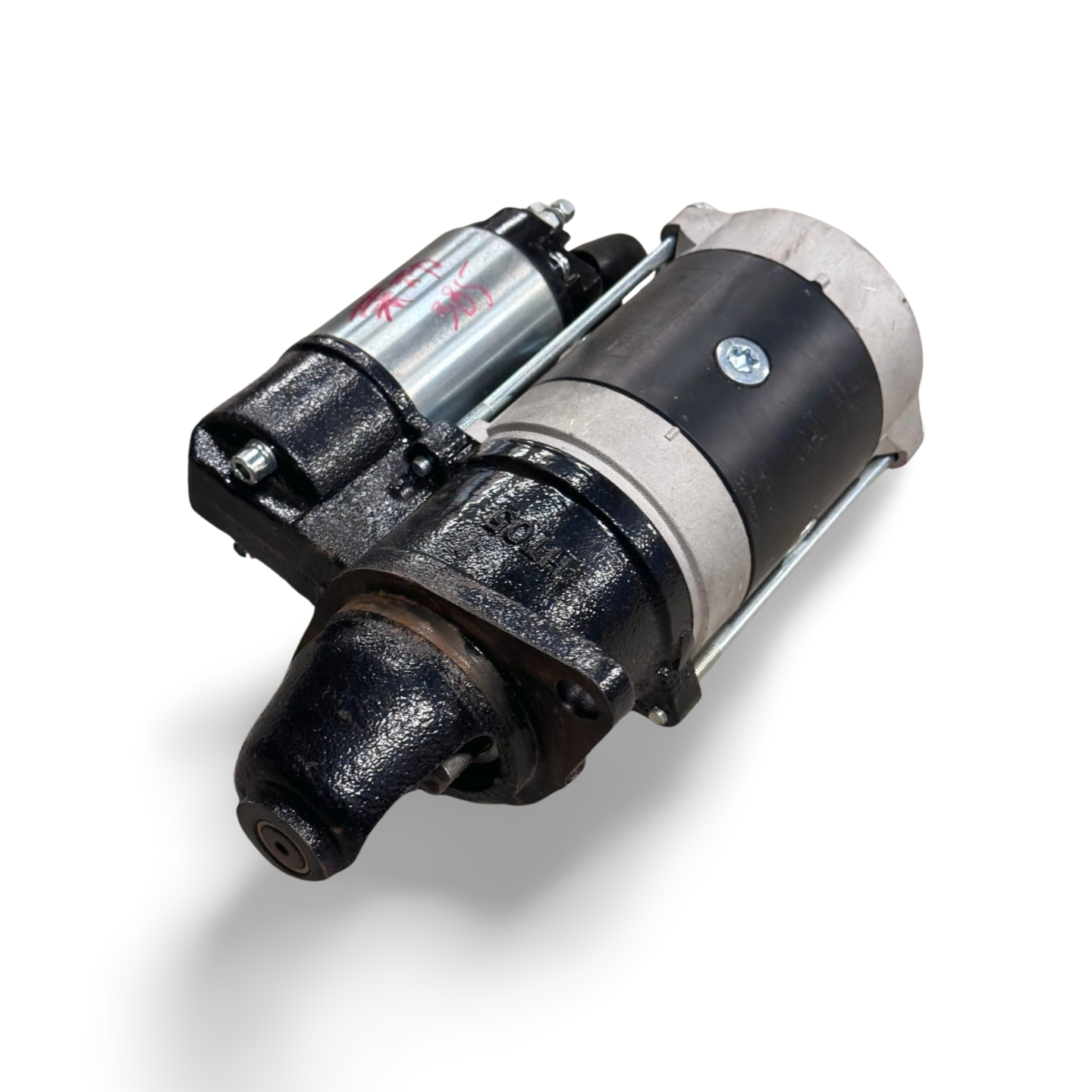

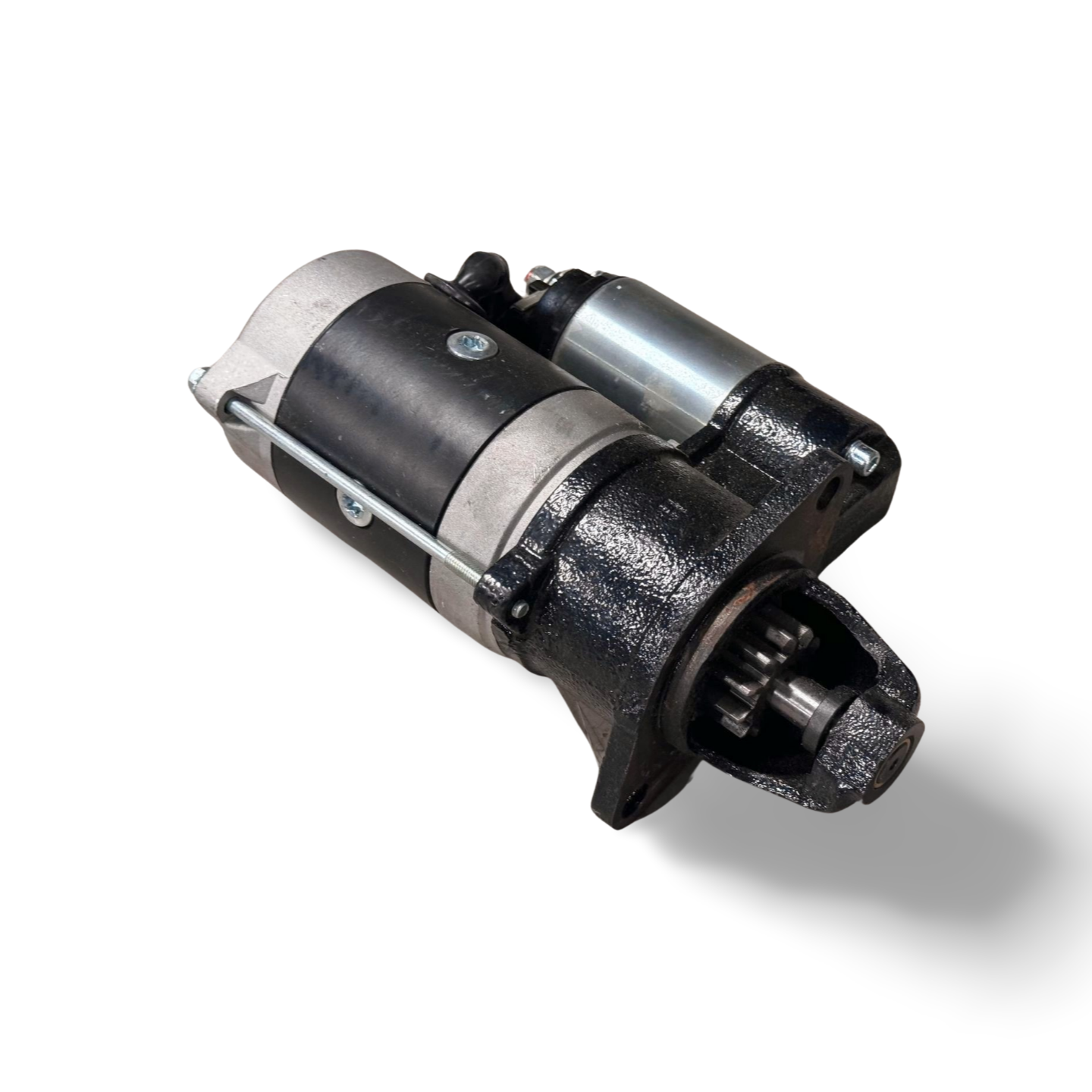

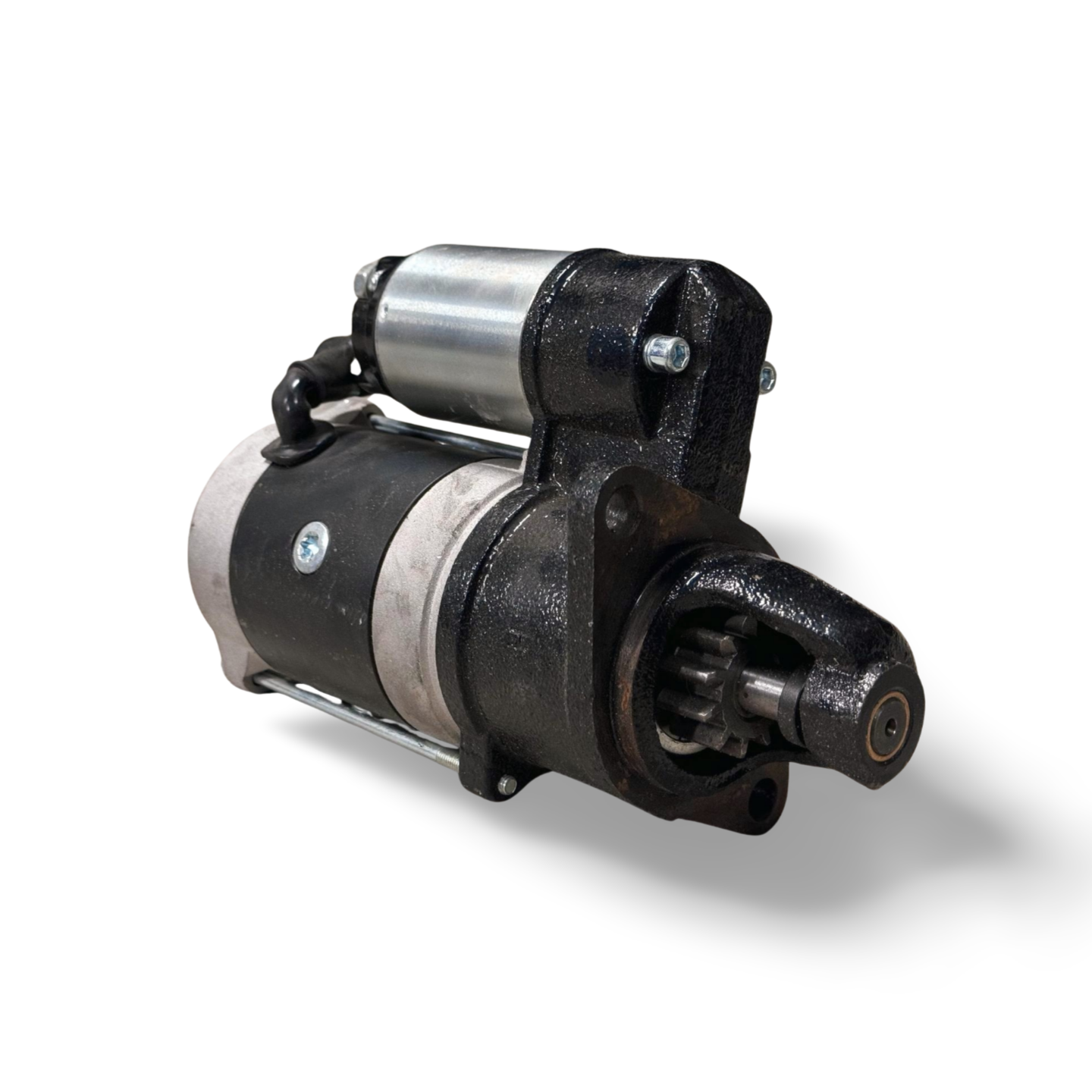

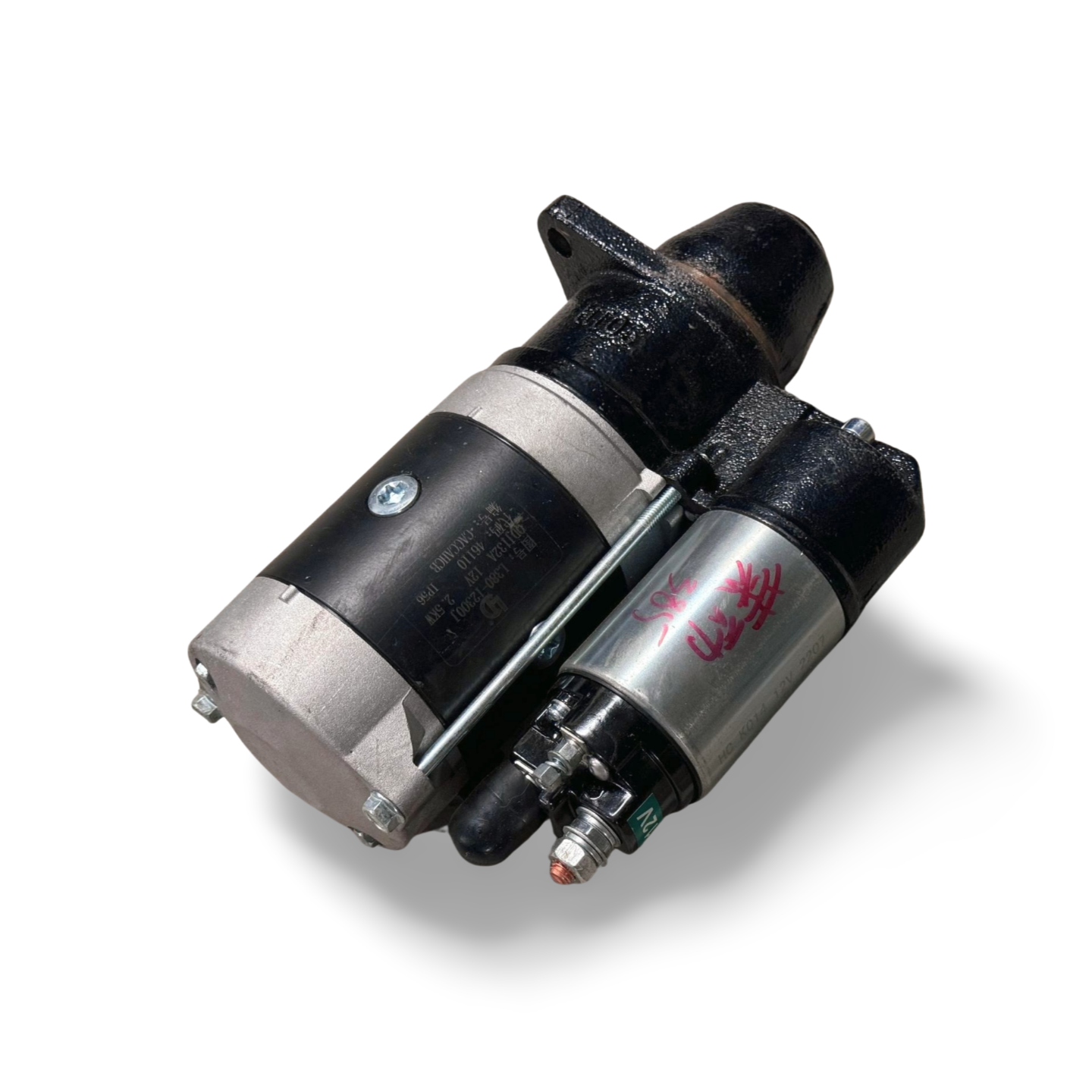

Genuine replacement 12V electric starter motor for the KOOP KD192F single-cylinder diesel engine, as fitted to AM10 mini excavators. Direct fit, plug-and-play installation.
Specifications
Voltage: 12V DC
Power Output: 2.2 kW (3 hp)
Amperage: 150–180A (peak draw)
Torque Rating: 14 Nm
Rotation: Clockwise (SAE standard)
Pinion Engagement: Mechanical (fully automatic)
Terminal Type: M8 eyelet connectors
Compatibility
Fits: AM10 1.0T mini excavator (KOOP KD192F single-cylinder engine)
Engine Specs: 7 kW @ 3000 rpm, air-cooled diesel
Warranty & Support
Warranty: 12 months from purchase (parts only)
Replacement: Swap direct for faulty motor; no core charge
Support: Contact sales@affordablemachinery.com.au for installation guidance
Installation Notes
Disconnect battery ground cable before removal
Check starter mounting bolts are tight; check battery voltage (should be 12.5–13.5V at rest)
Ensure battery cable terminals are clean and corrosion-free
Test engine start after installation; listen for smooth engagement and disengagement
